Test A: Central Control Module Appears Completely Inoperative

For diagnostic procedures, refer to flowchart. See Fig 1 .

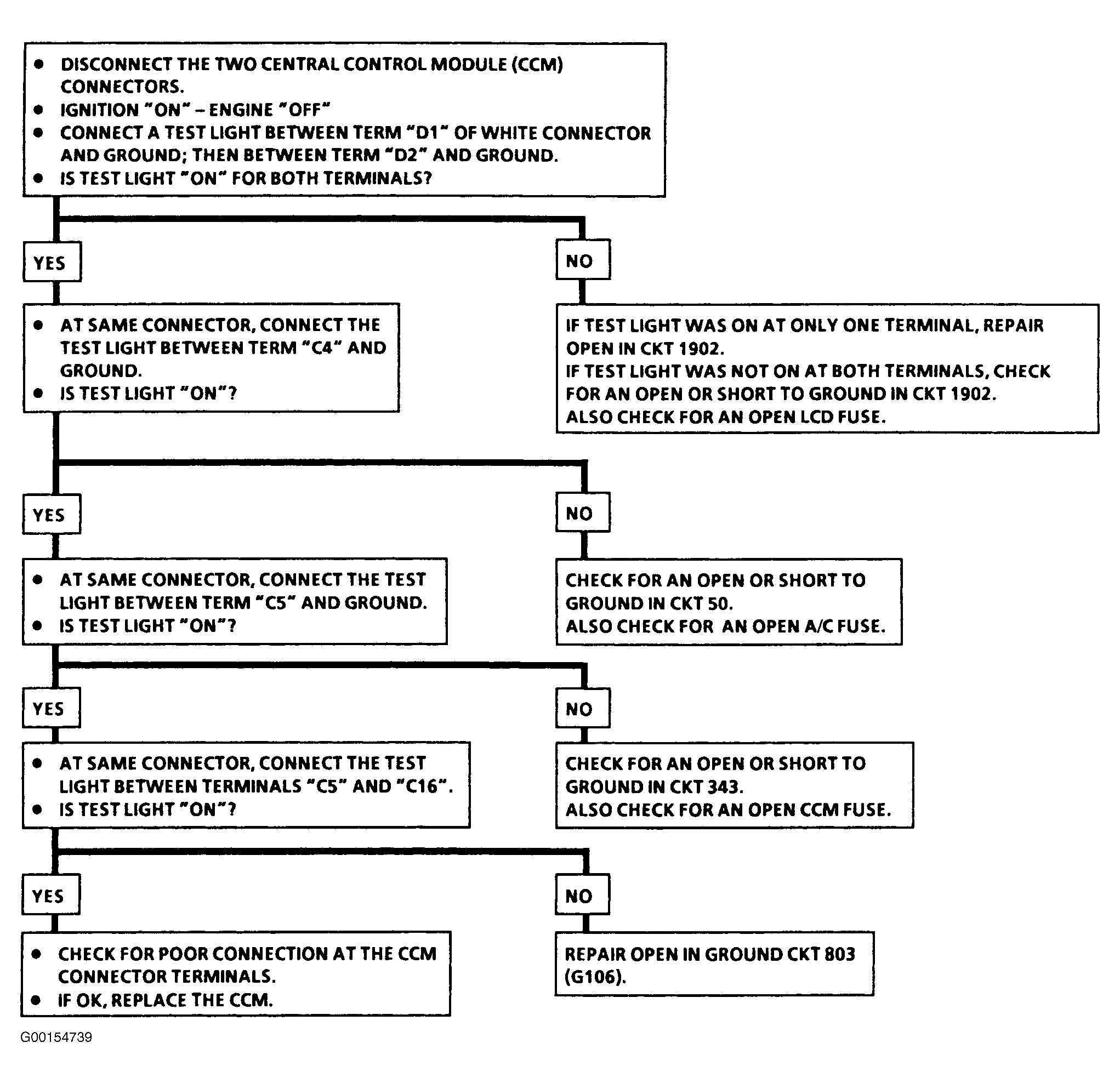

Fig 1: Test A: Central Control Module Appears Completely Inoperative Diagnostic Flowchart

Courtesy of GENERAL MOTORS CORP.
