Test B: Central Control Module Will Not Enter Diagnostic Mode

For diagnostic procedures, refer to flowchart. See Fig 1 .

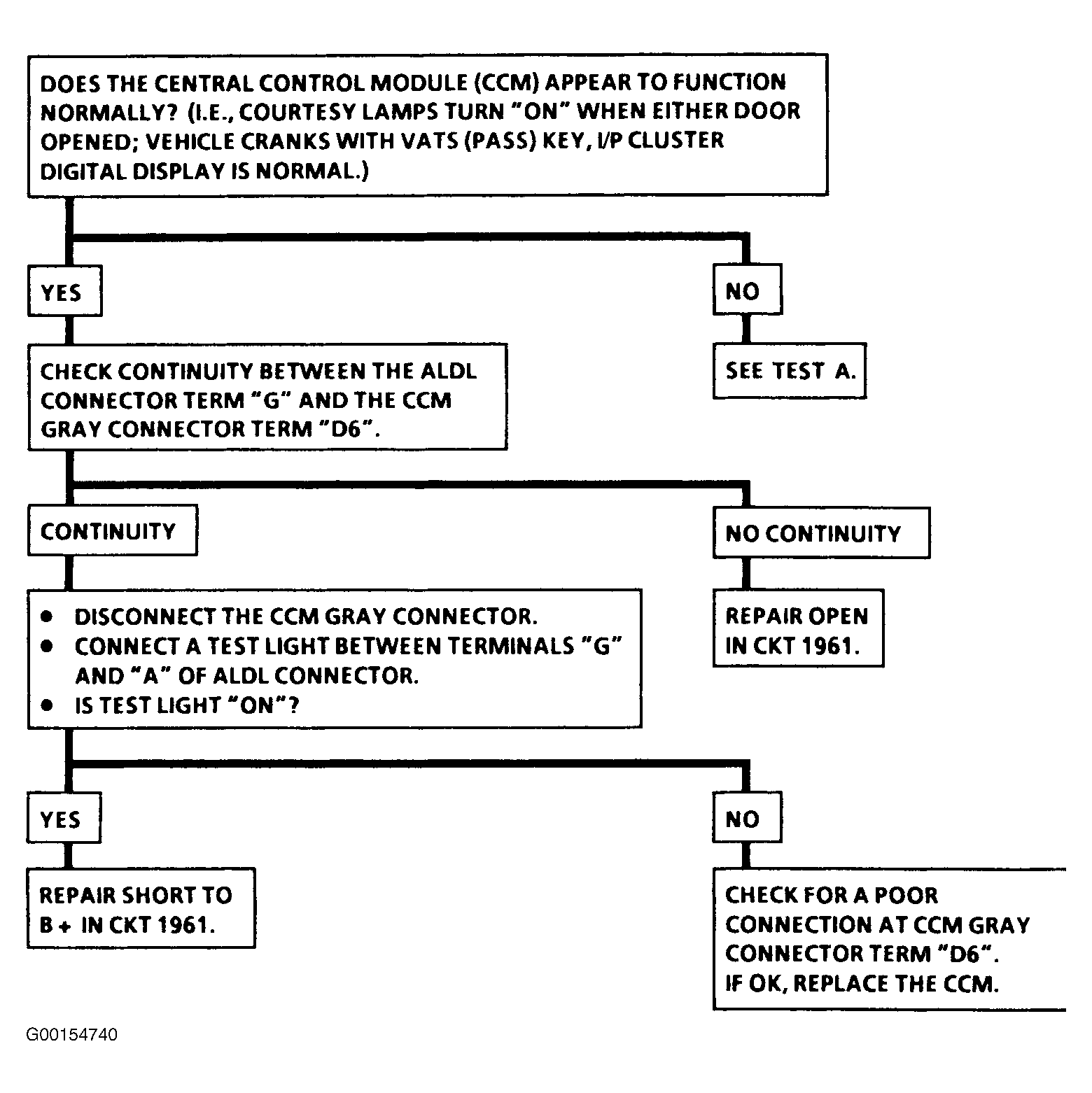

Fig 1: Test B: Central Control Module Will Not Enter Diagnostic Mode Diagnostic Flowchart

Courtesy of GENERAL MOTORS CORP.
