G 10 Van V6-262 4.3L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Switch
>>
Testing and Inspection
>>
Chart 7 - Set/Coast Switch Test
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chart 7 - Set/Coast Switch Test

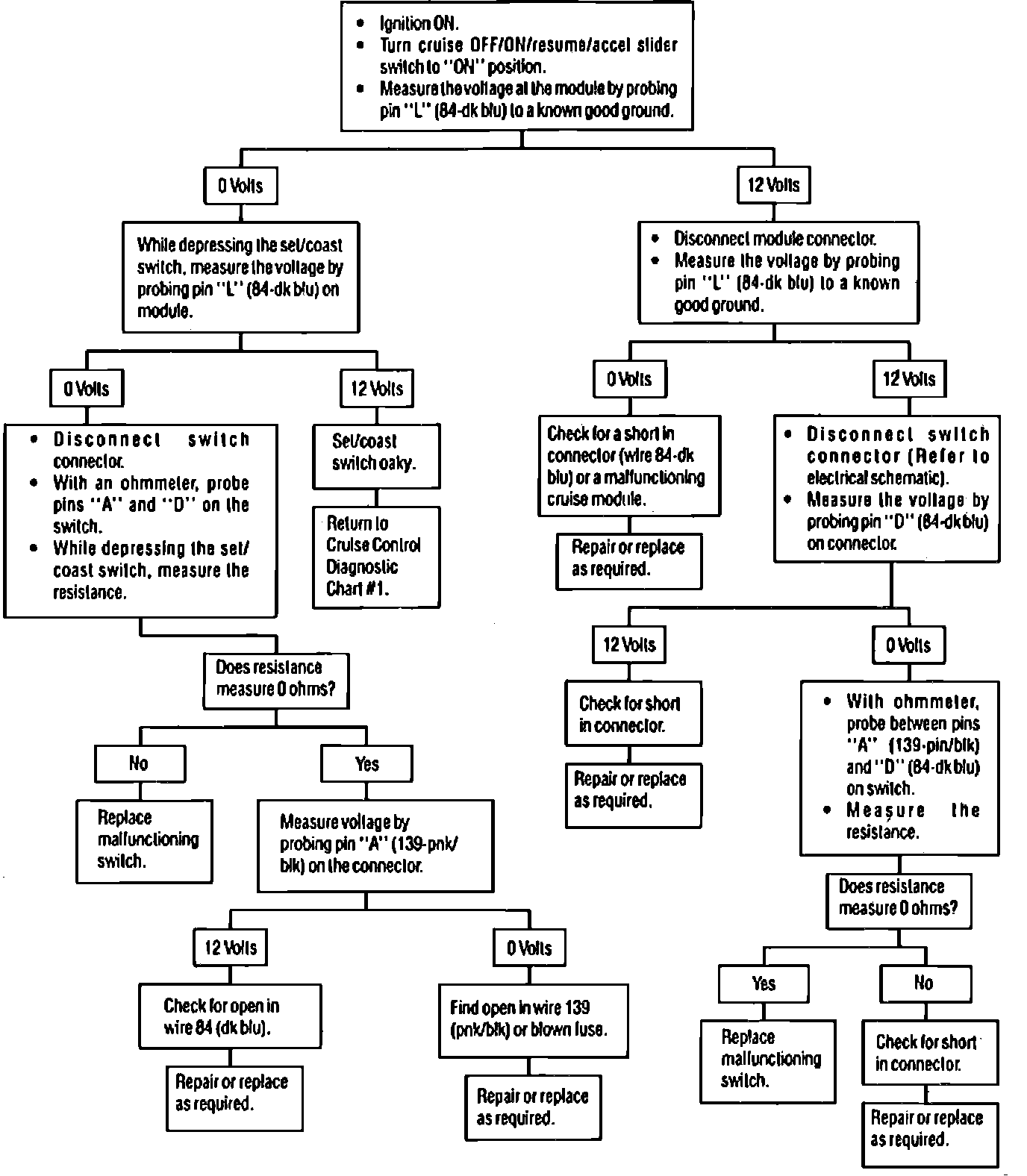

Fig. 20 Chart 7, Set/Coast Switch Test:
