Engine Mount

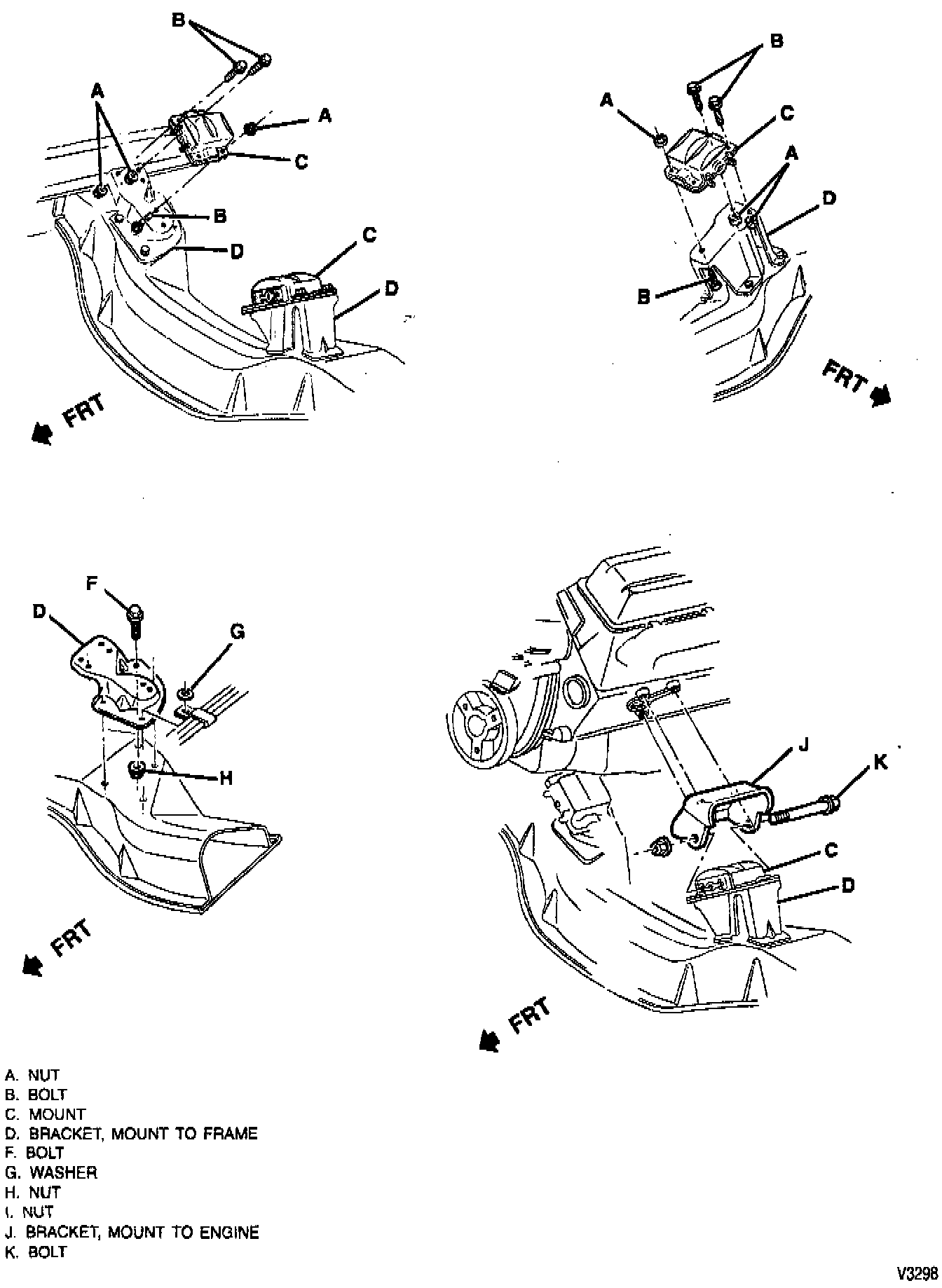

Front Engine Mounting Components:

Rear Engine Mounting Components:

Front engine mounting torque.
Tighten nuts (A) to: 41n.m (30 ft. lbs.)
Tighten bolts (B) to: 54n.m (40 ft. lbs.)
Tighten bolts (F) to: 41n.m (30 ft. lbs.)
Tighten nuts (I) to: 68n.m (50 ft. lbs.)
Tighten bolts (K) to: 100n.m (75 ft. lbs.)

Rear engine mounting torque.
Tighten bolts (B) to: 47n.m (35 ft. lbs.)
Tighten nuts (E) to: 61n.m (45 ft. lbs.)
