Torque Specifications

Cylinder Head Bolts

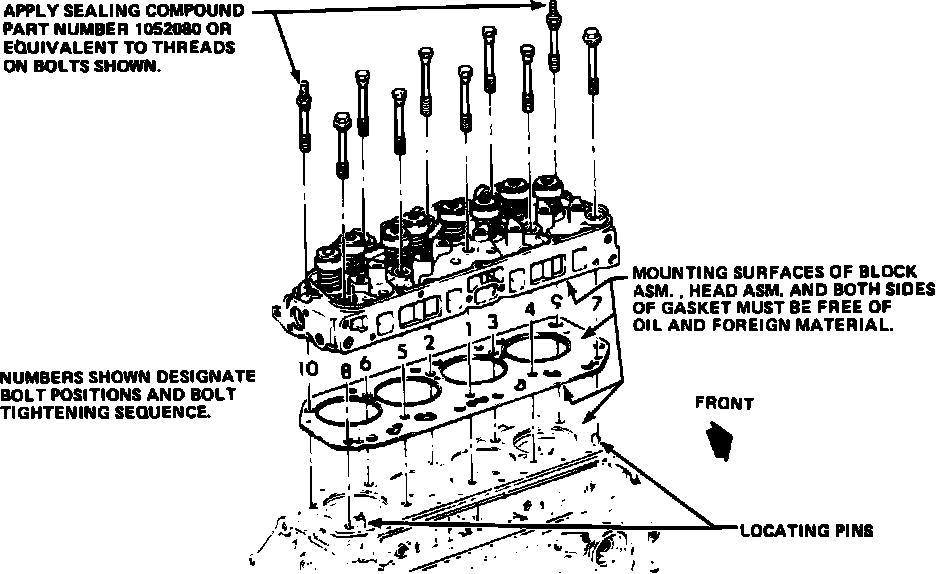

Fig. 2 Cylinder Head Installation & Bolt Torque Sequence:

1. Torque all bolts to 18 ft. lbs.
2. Retorque all bolts (except No. 9) to 27 ft. lbs.
3. Tighten all bolts an additional 90°

[1] In the specified sequence (refer to image).
