Pin Header Terminals
WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

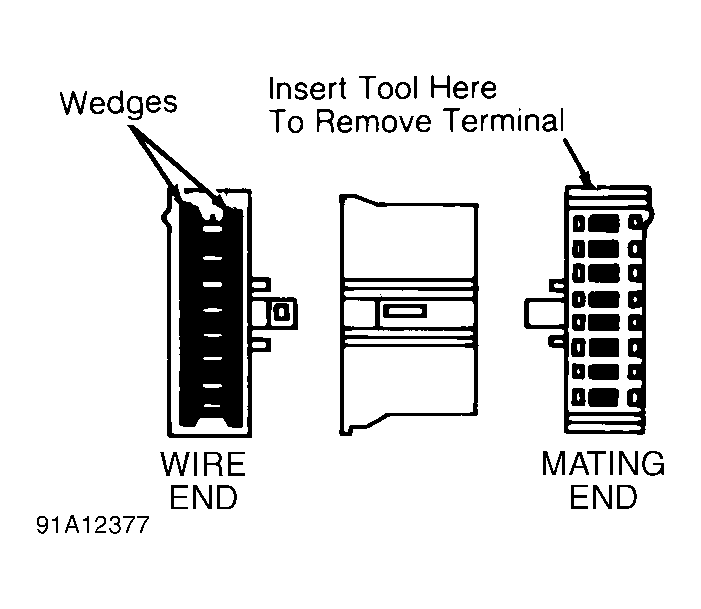

To remove pin header terminals from connector, remove locking wedge(s). Insert Packard Electric Tool (8913369) at area shown. See Fig 1 . Gently depress lock tang until terminal can be removed.
