Electronic/Engine Control Module (ECM)

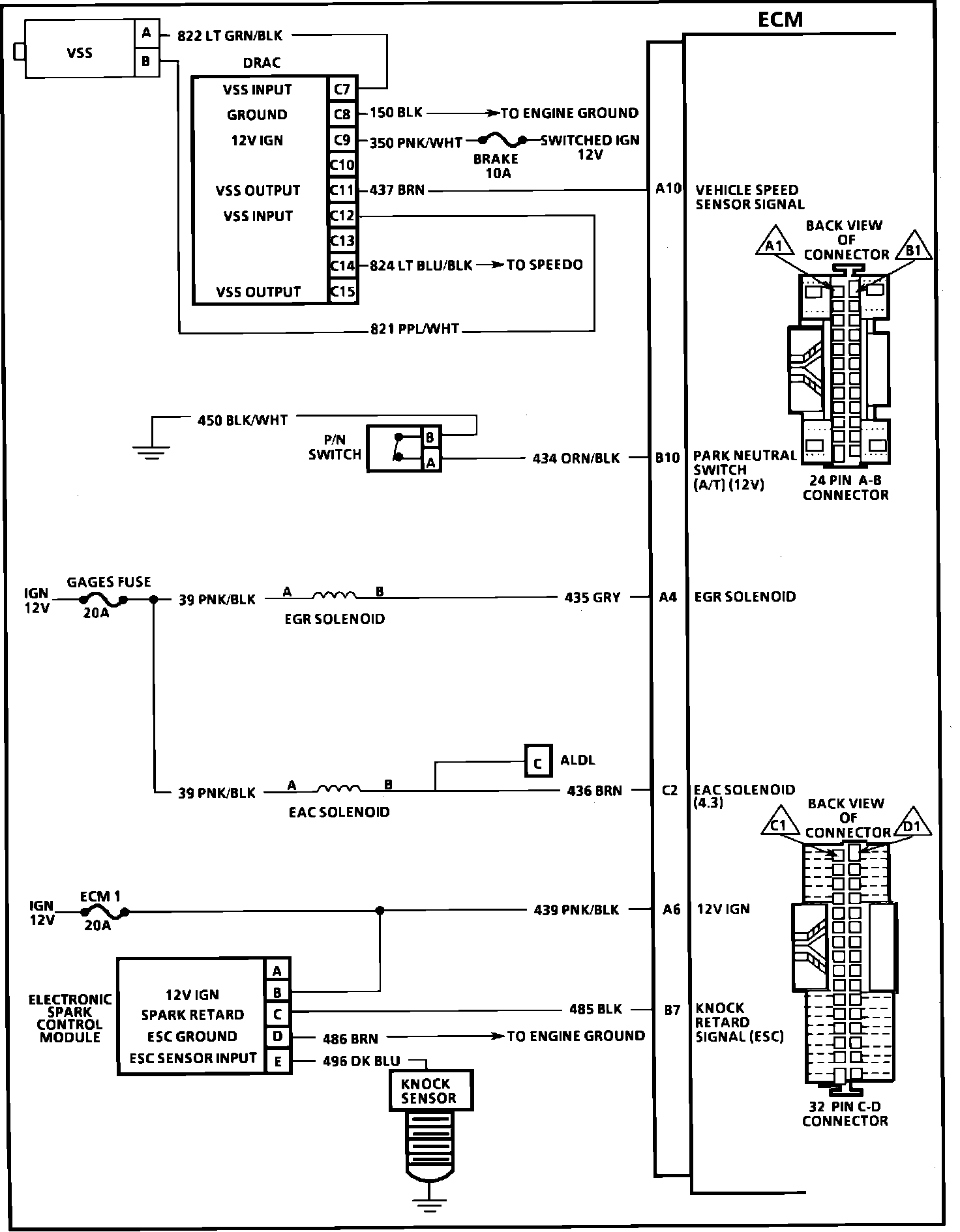

Electronic Control Module (ECM):

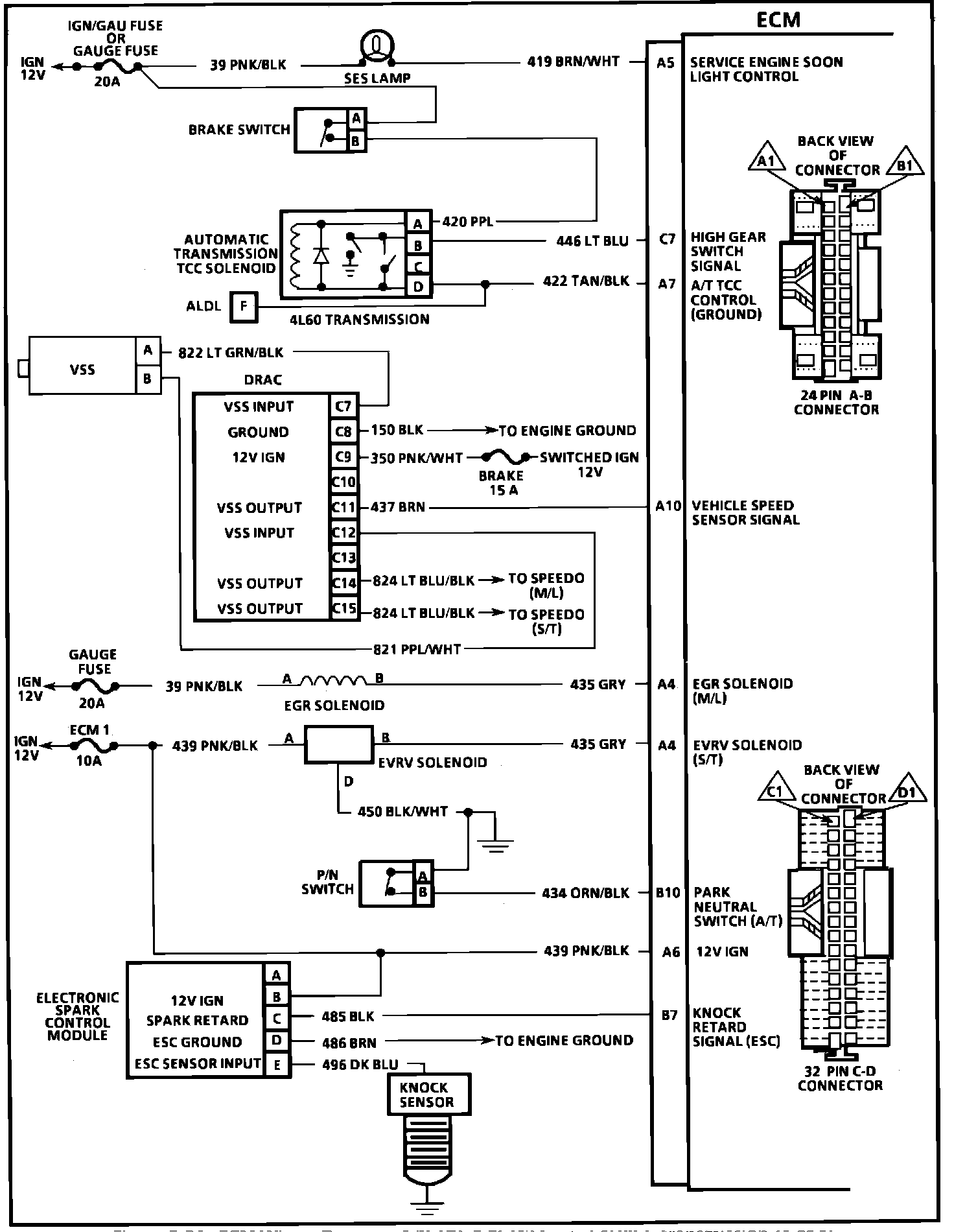

Electronic Control Module (ECM):

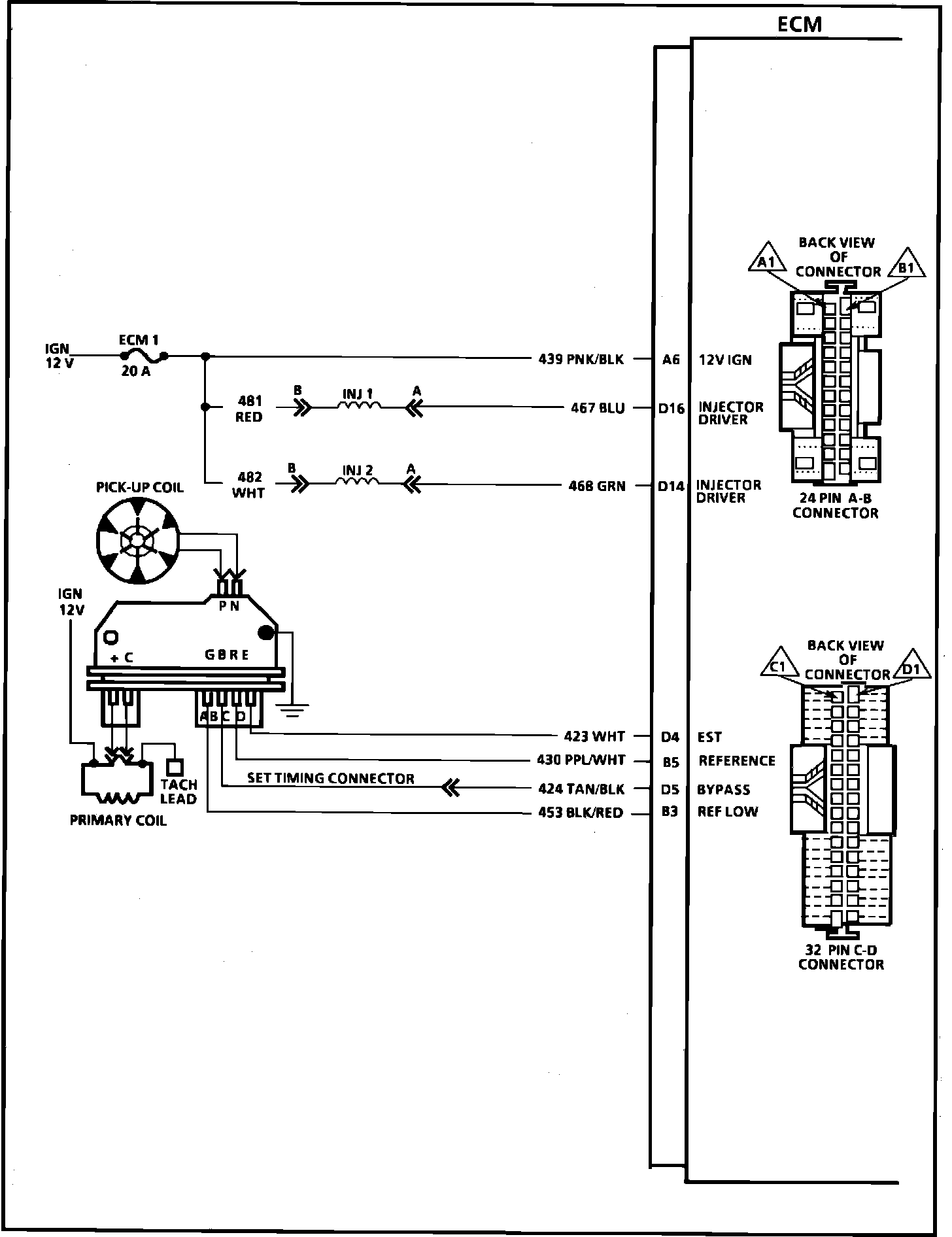

Electronic Control Module (ECM):

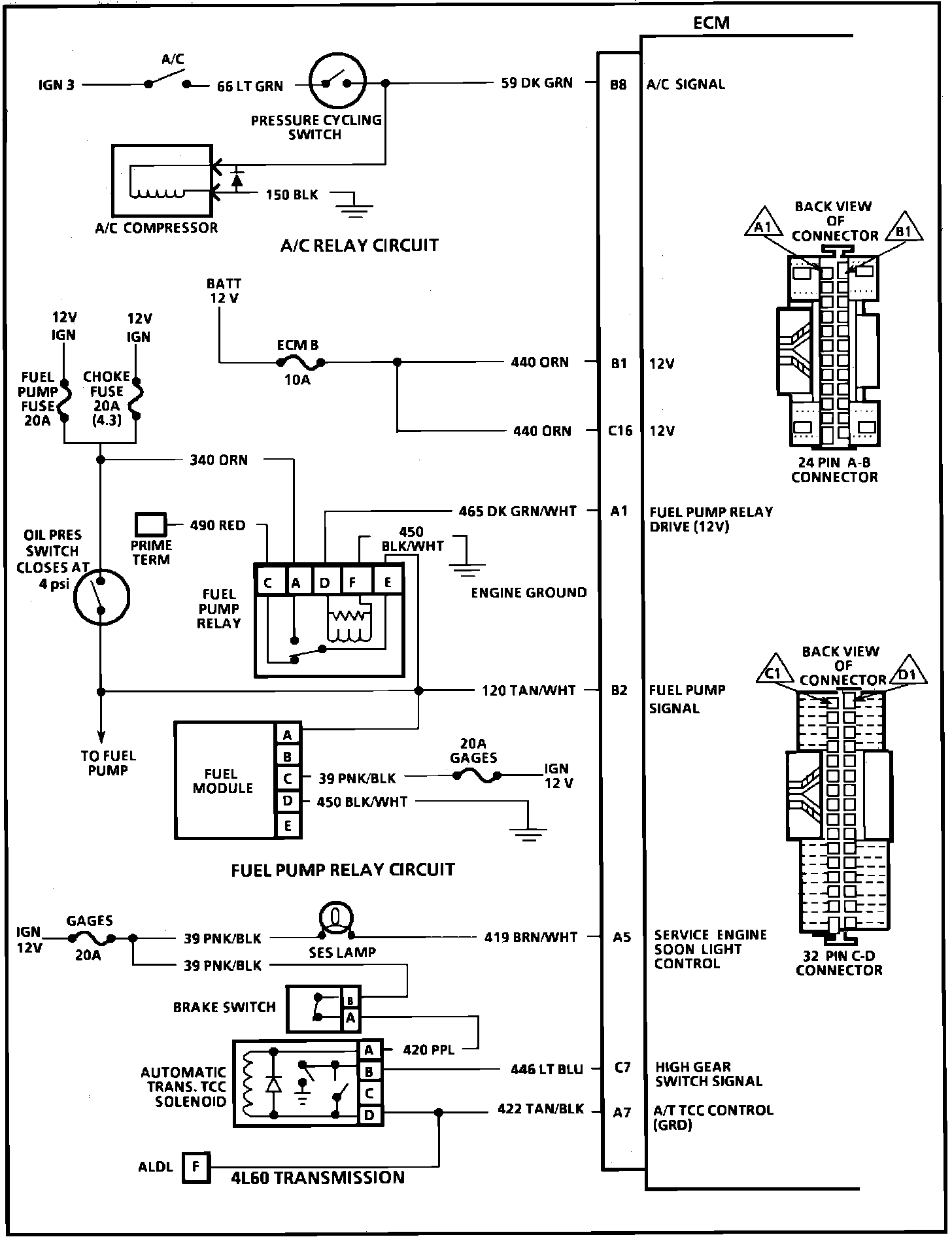

Electronic Control Module (ECM):
