ECM

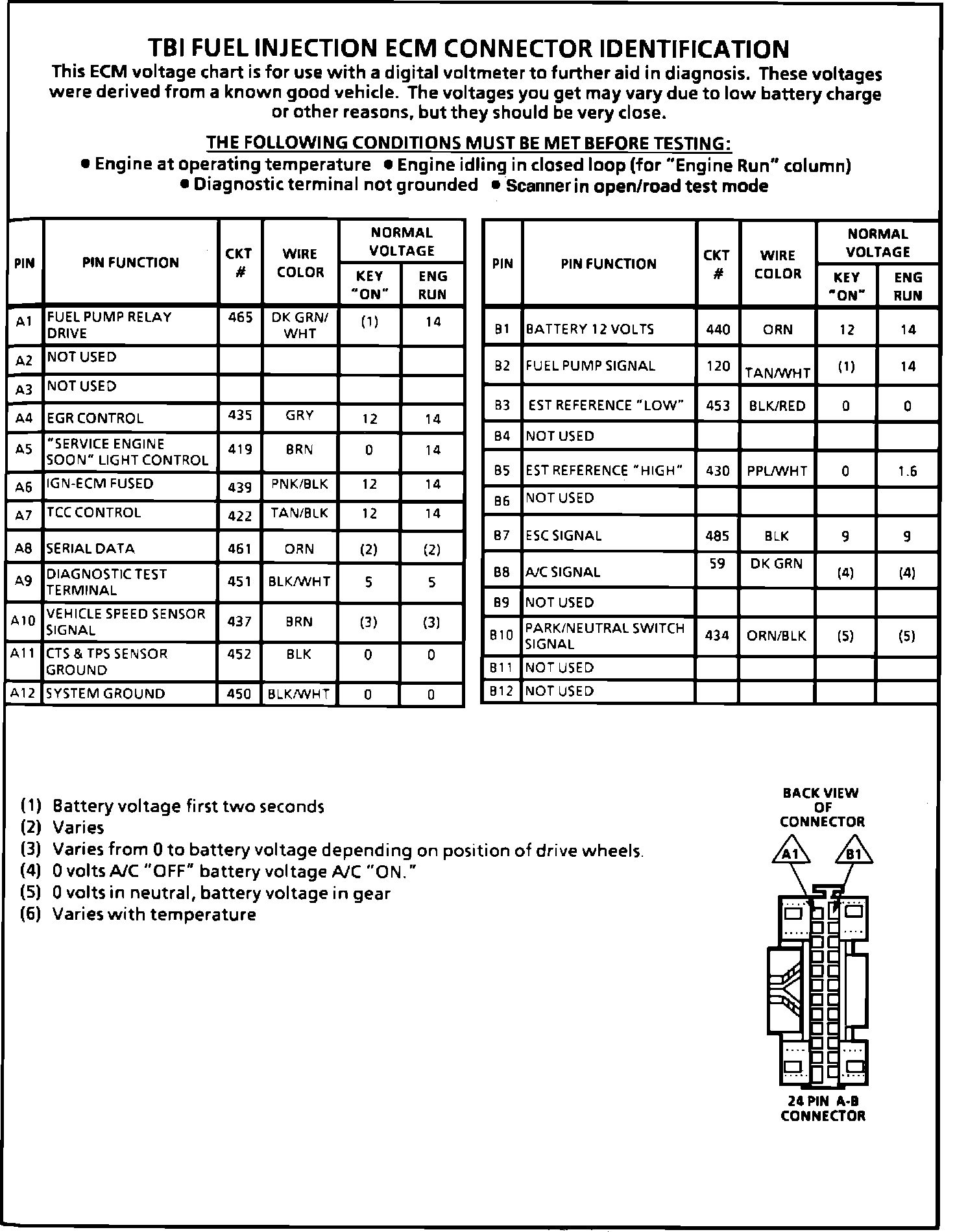

ECM Terminal Identification And Voltage Specification Part 1 Of 2:

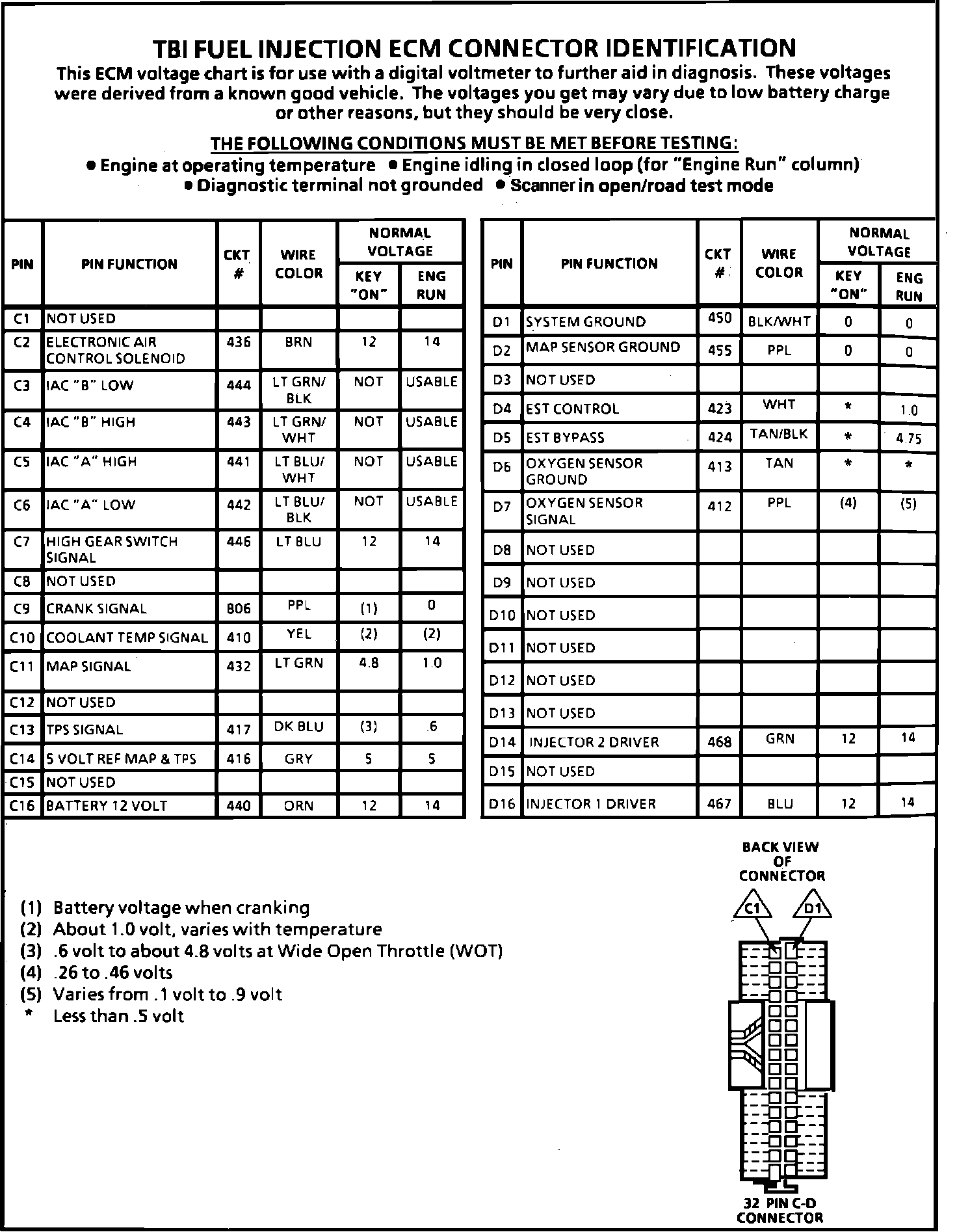

ECM Terminal Identification And Voltage Specification Part 2 Of 2:
