Computer Terminal Voltage Specifications

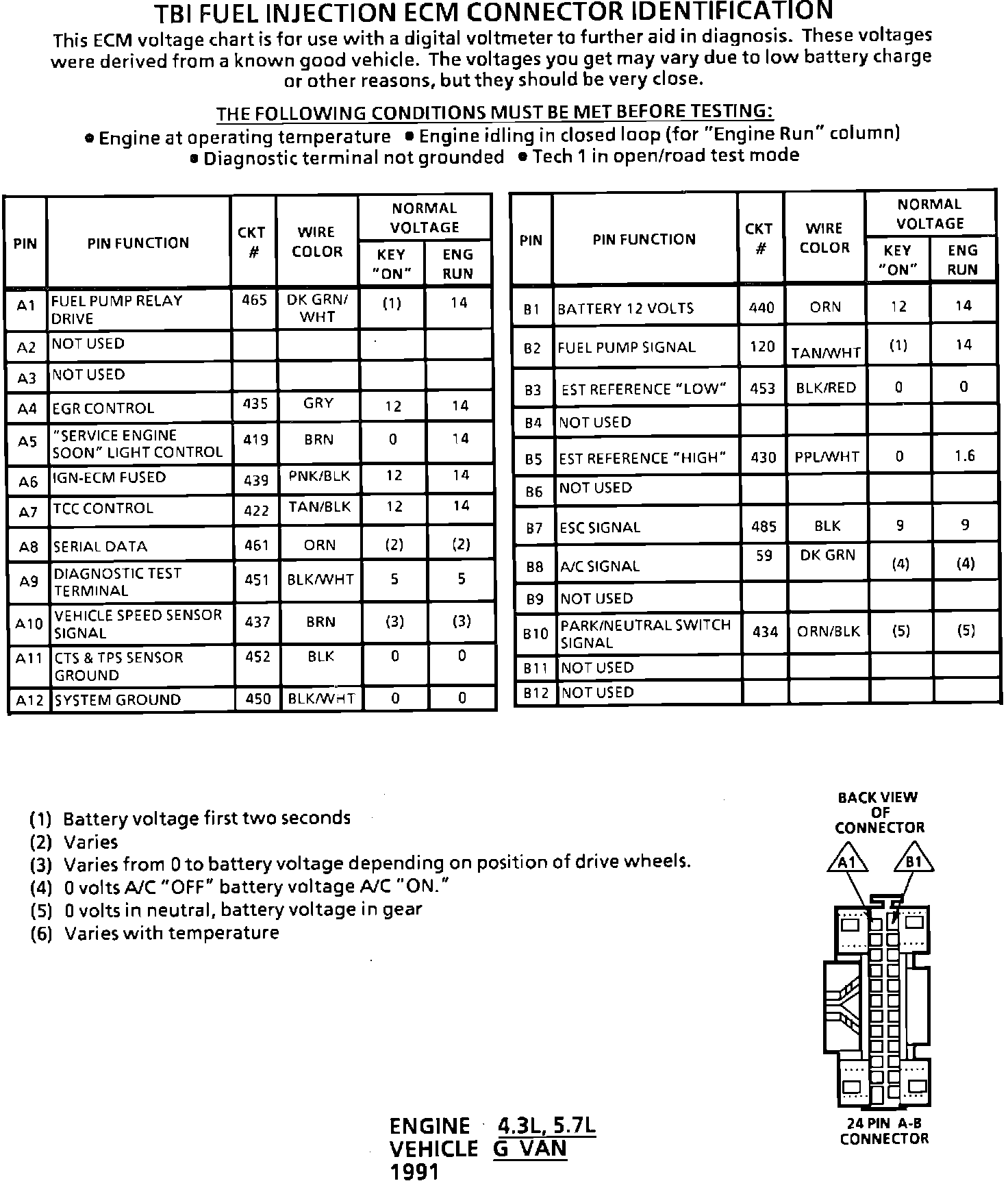

ECM Connector Terminal Except 4L80-E Transmission (Part 1 Of 2):

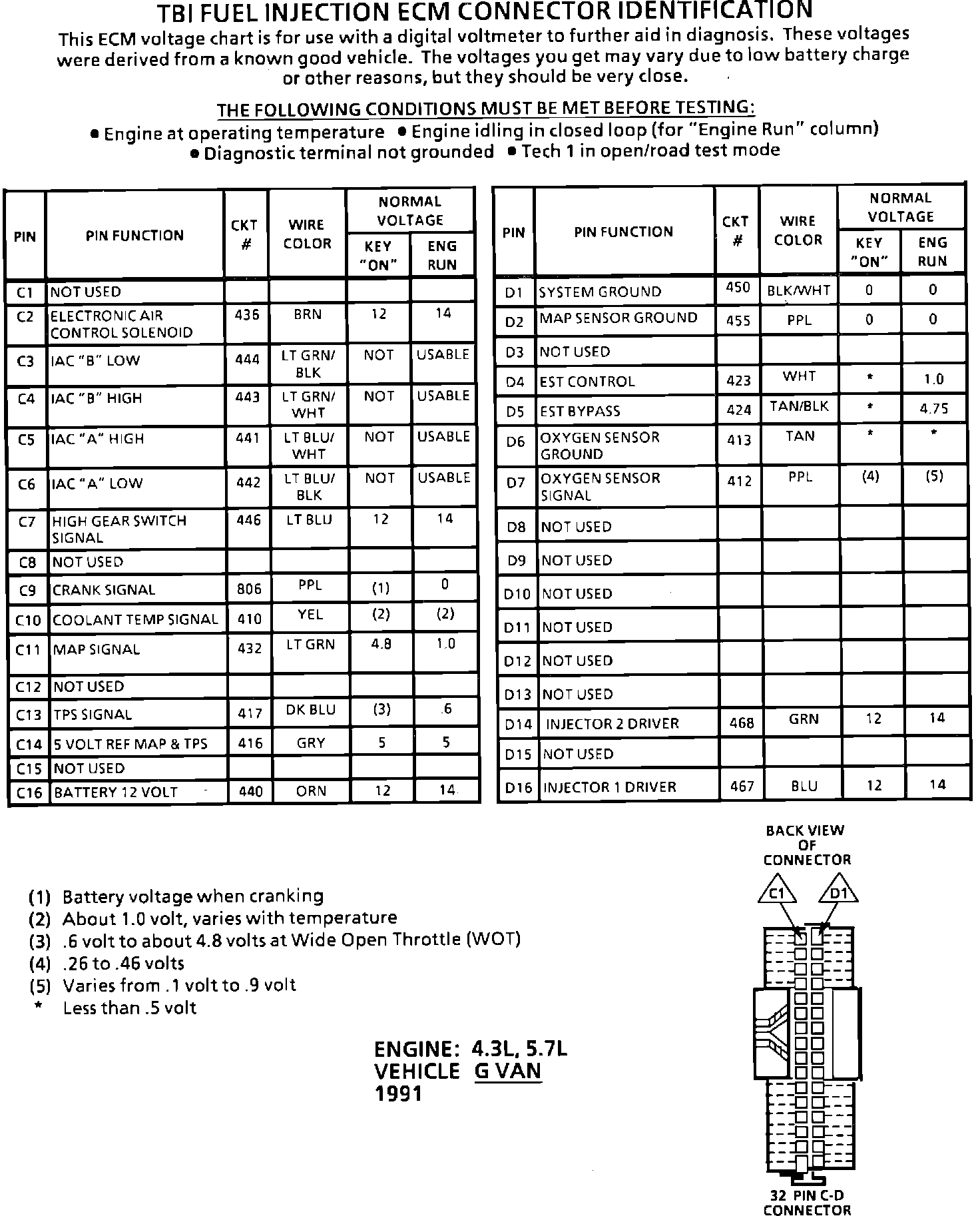

ECM Connector Except 4L80-E Transmission (Part 2 Of 2):
