Computer Terminal Voltage Specifications

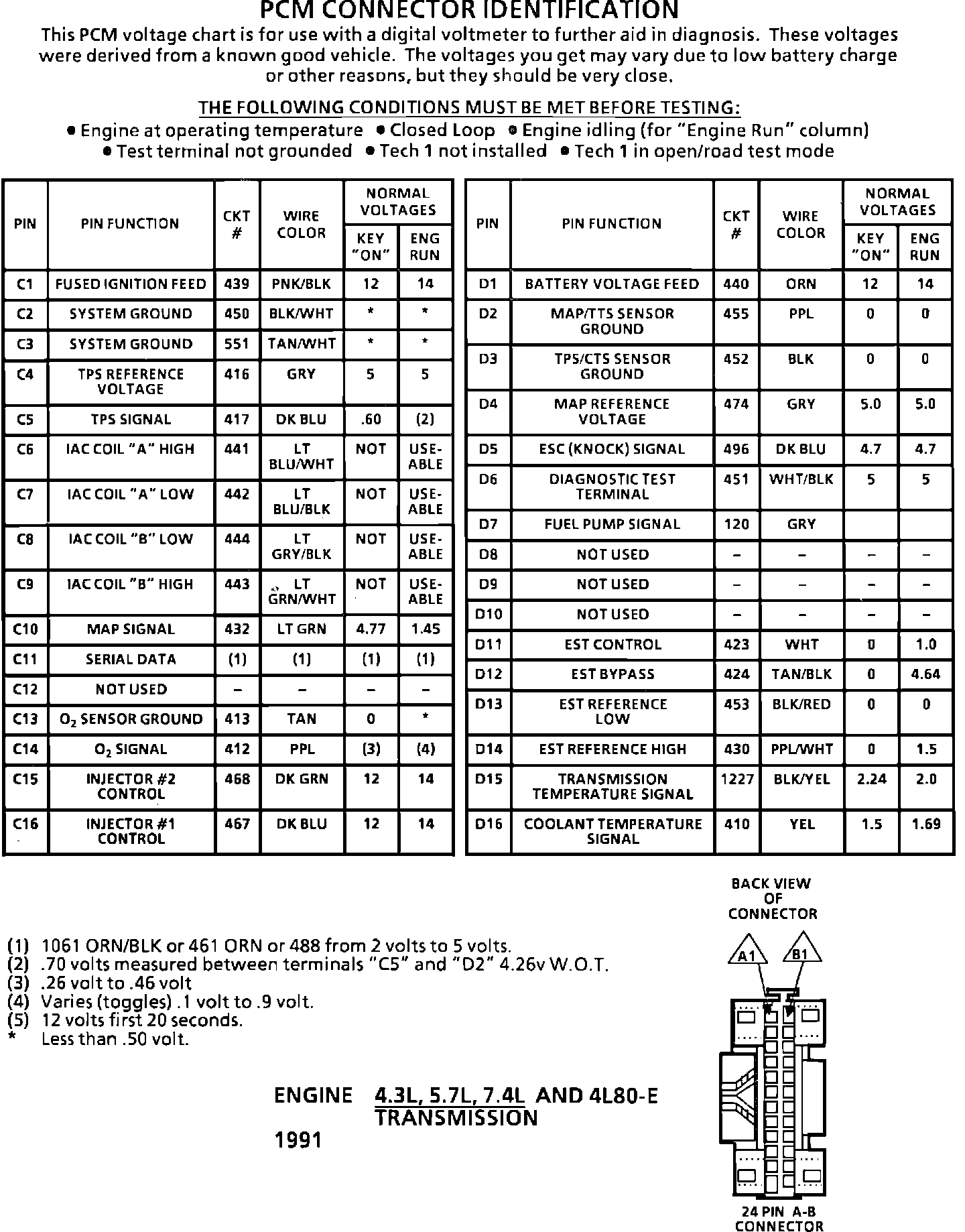

PCM Connector End View Equipped W/4L80-E Trans (Part 1 Of 2):

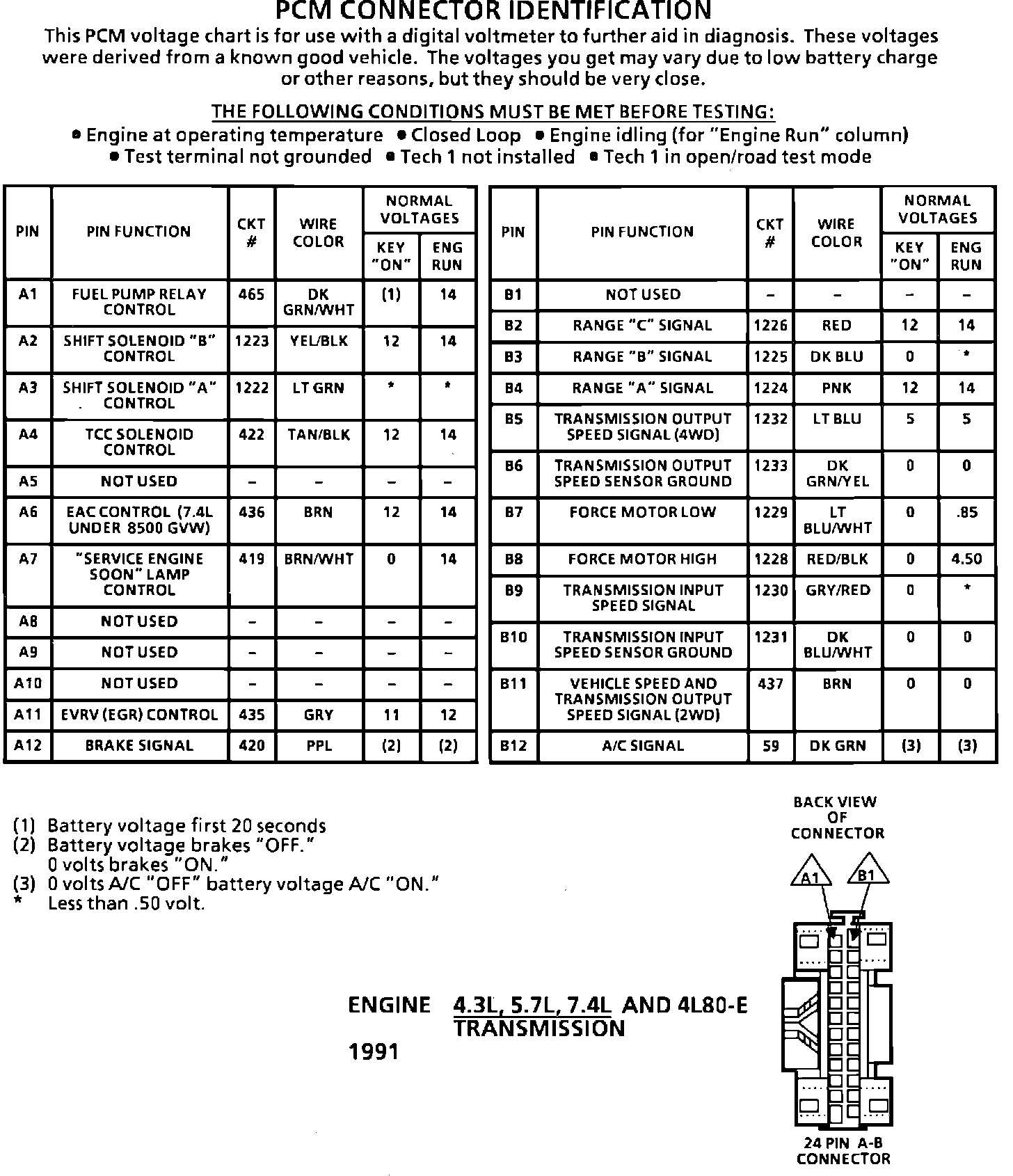

PCM Connector End View Equipped W/4L80-E Trans (Part 2 Of 2):
