Electronic Control Module (ECM)

Behind RH Side Of I/P.:

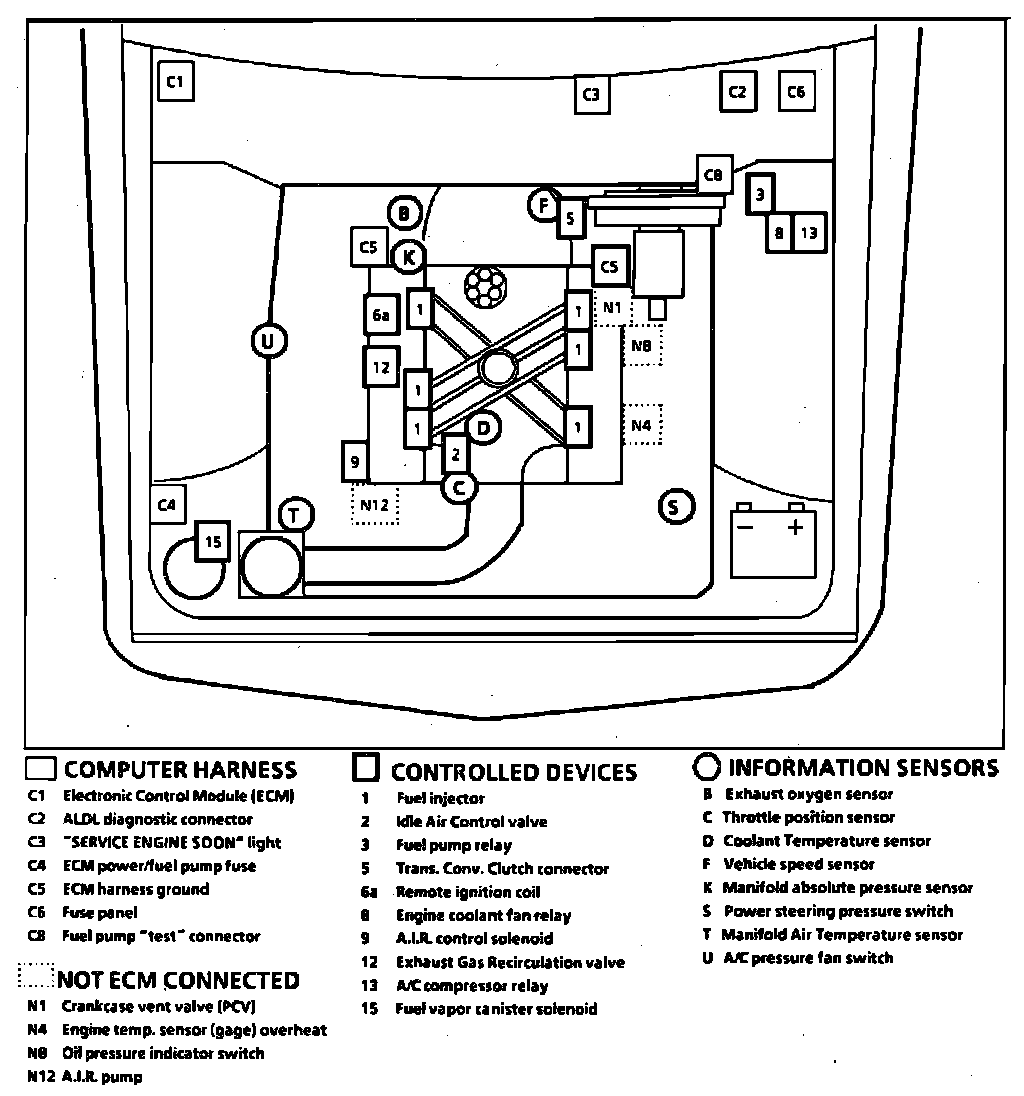

Engine Compartment Components.:

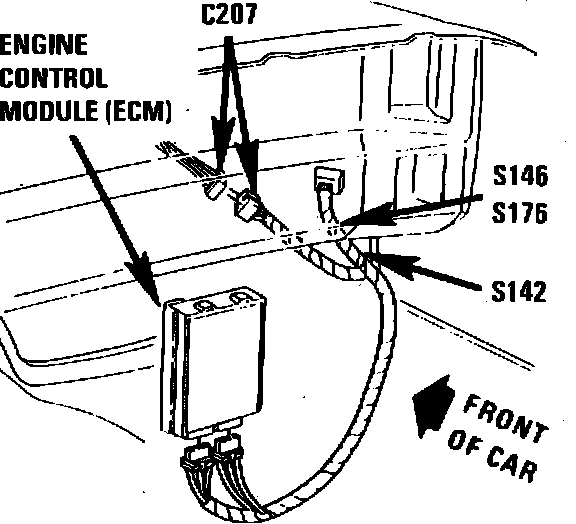

Behind RH Side Of I/P

Applicable to: 1992 3.1L/V6-192
