Engine Control Module: Diagrams

Multi-Port Fuel Injection:



Multi-Port Fuel Injection:

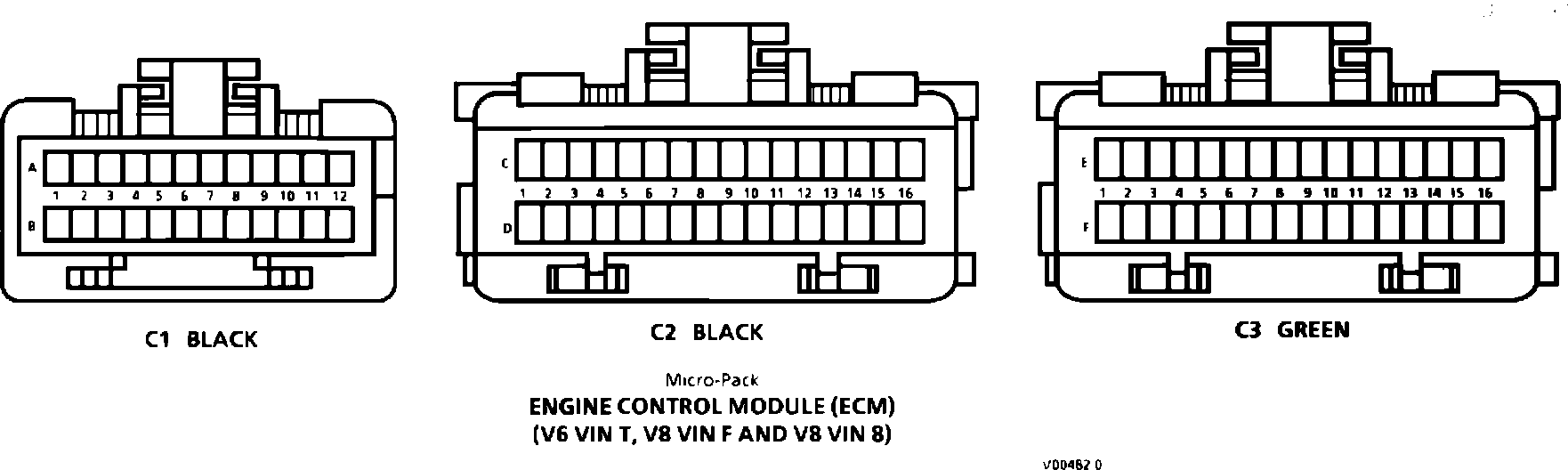

Engine Control Module (ECM) Connectors:

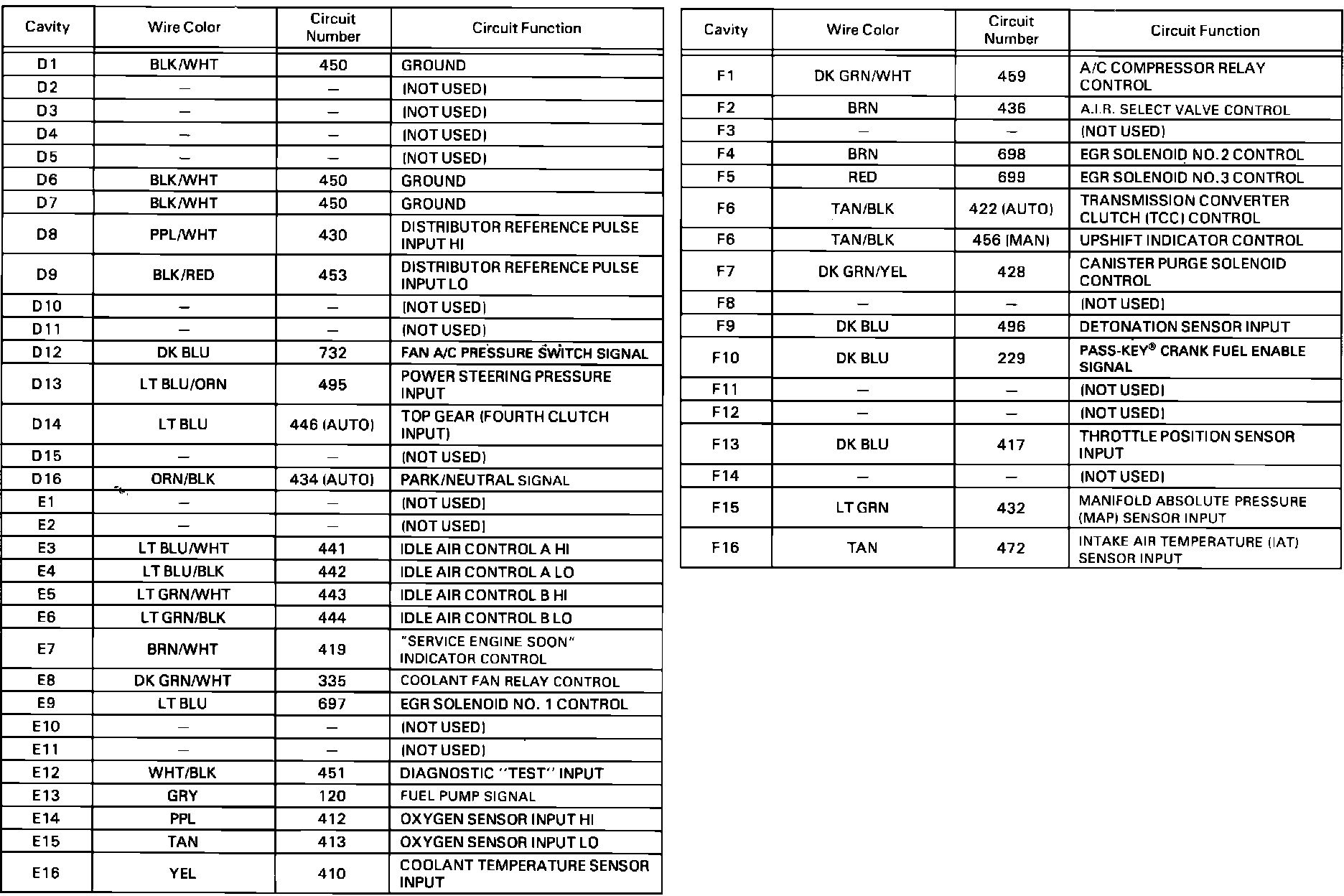

ECM Connector Pin-Out:



ECM Connector Pin-Out:
