Engine Control Module

Tuned-Port Fuel Injection / Multi-Port Fuel Injection:



Tuned-Port Fuel Injection / Multi-Port Fuel Injection:

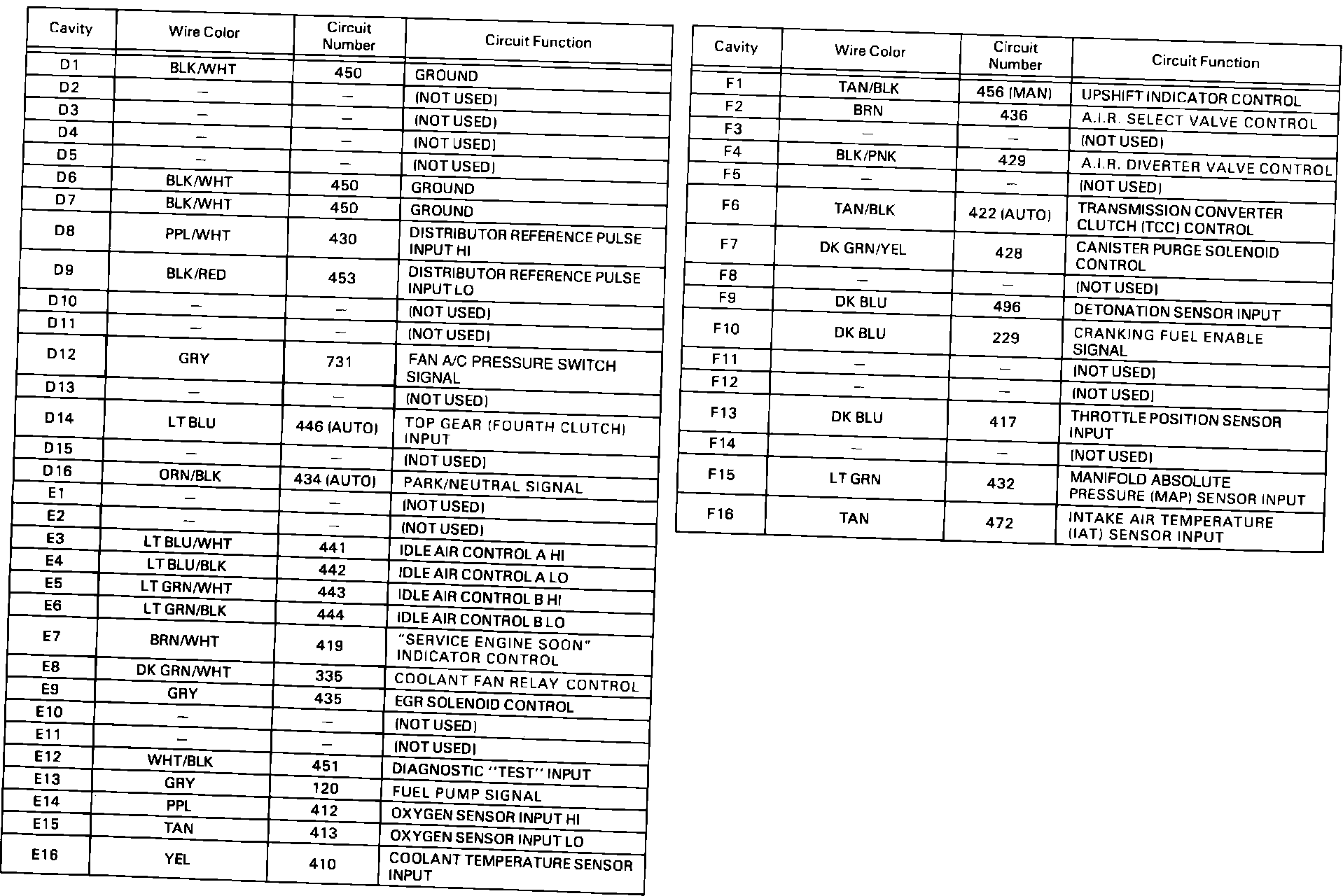

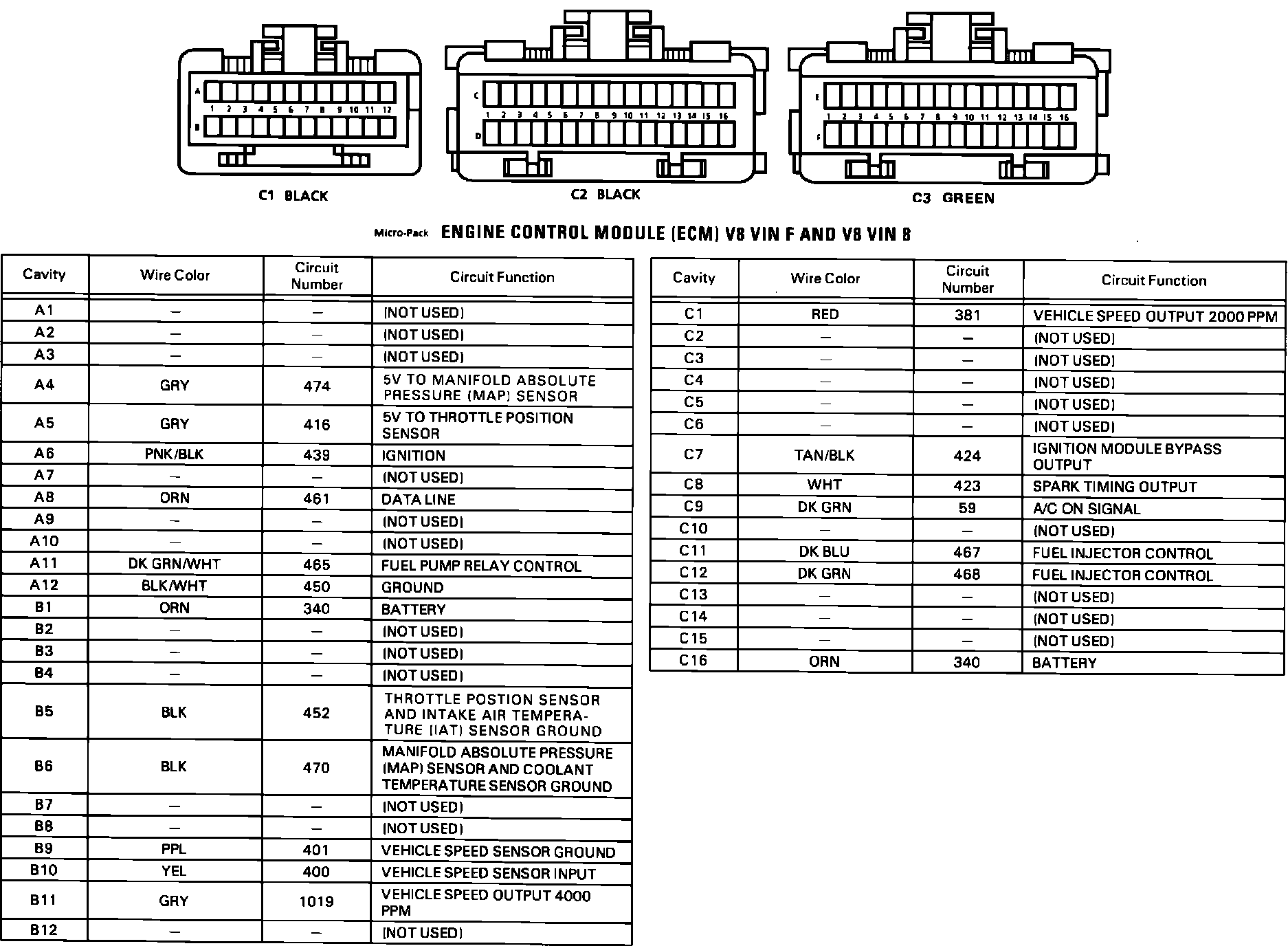

Engine Control Module (ECM) Connectors:

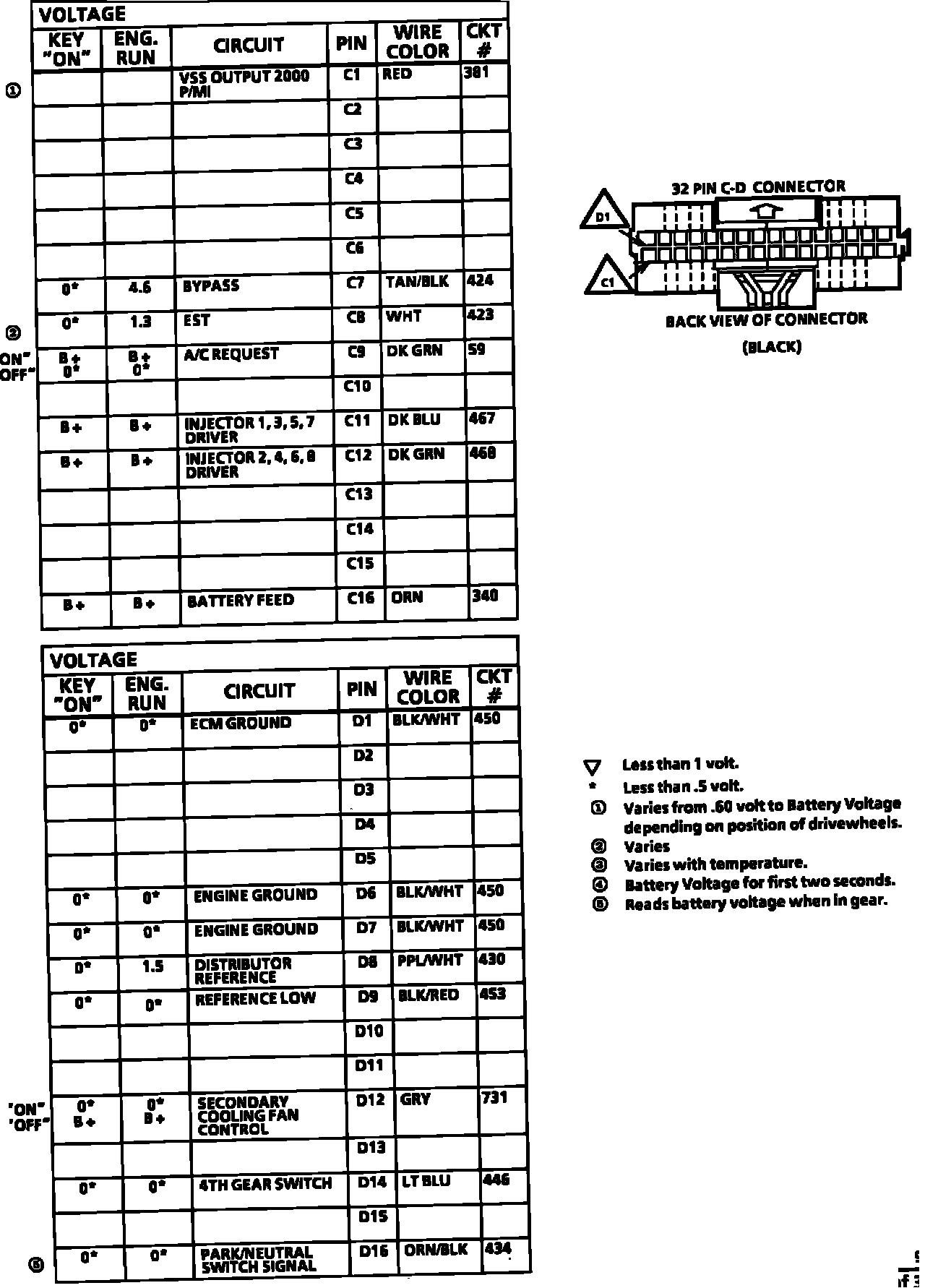

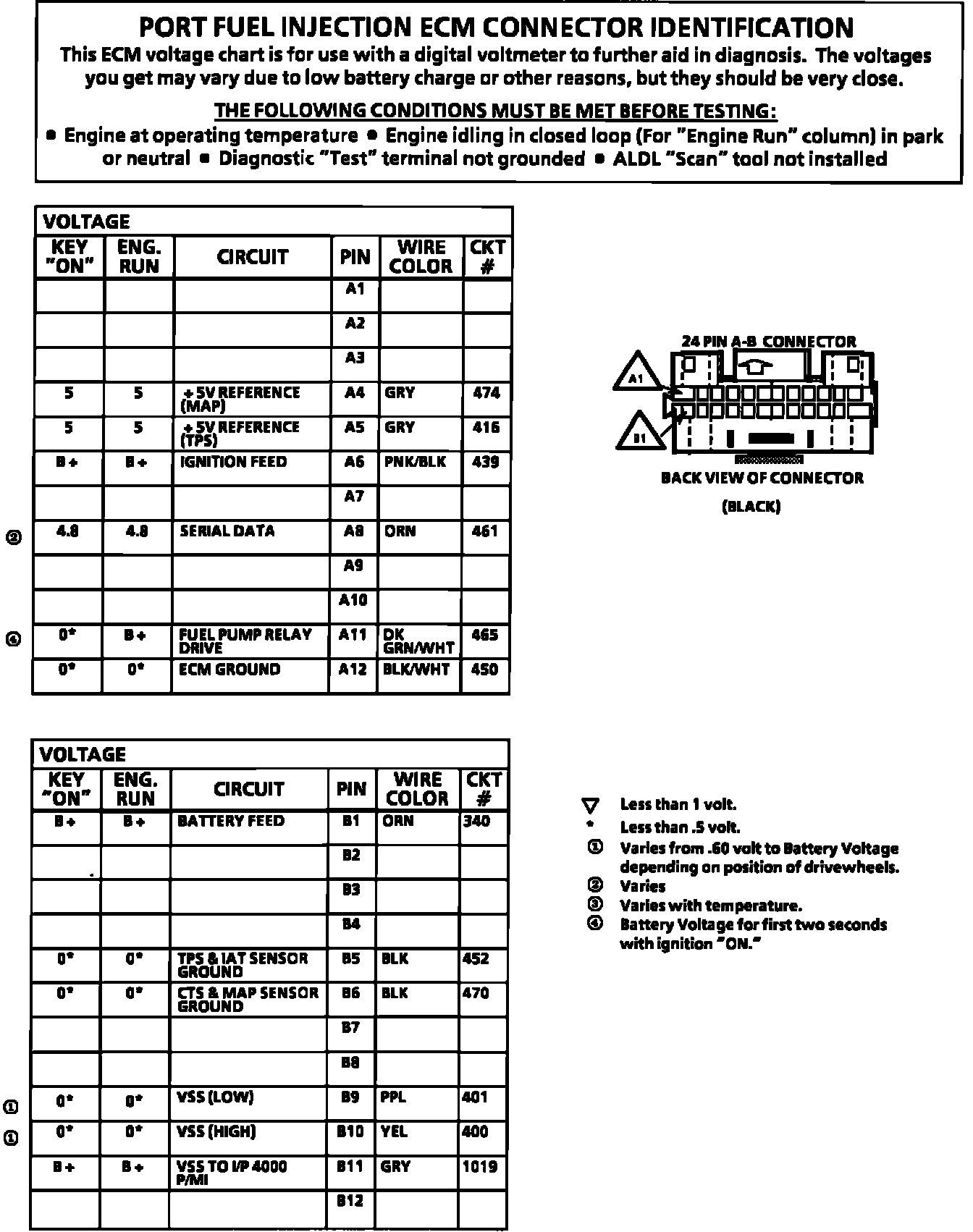

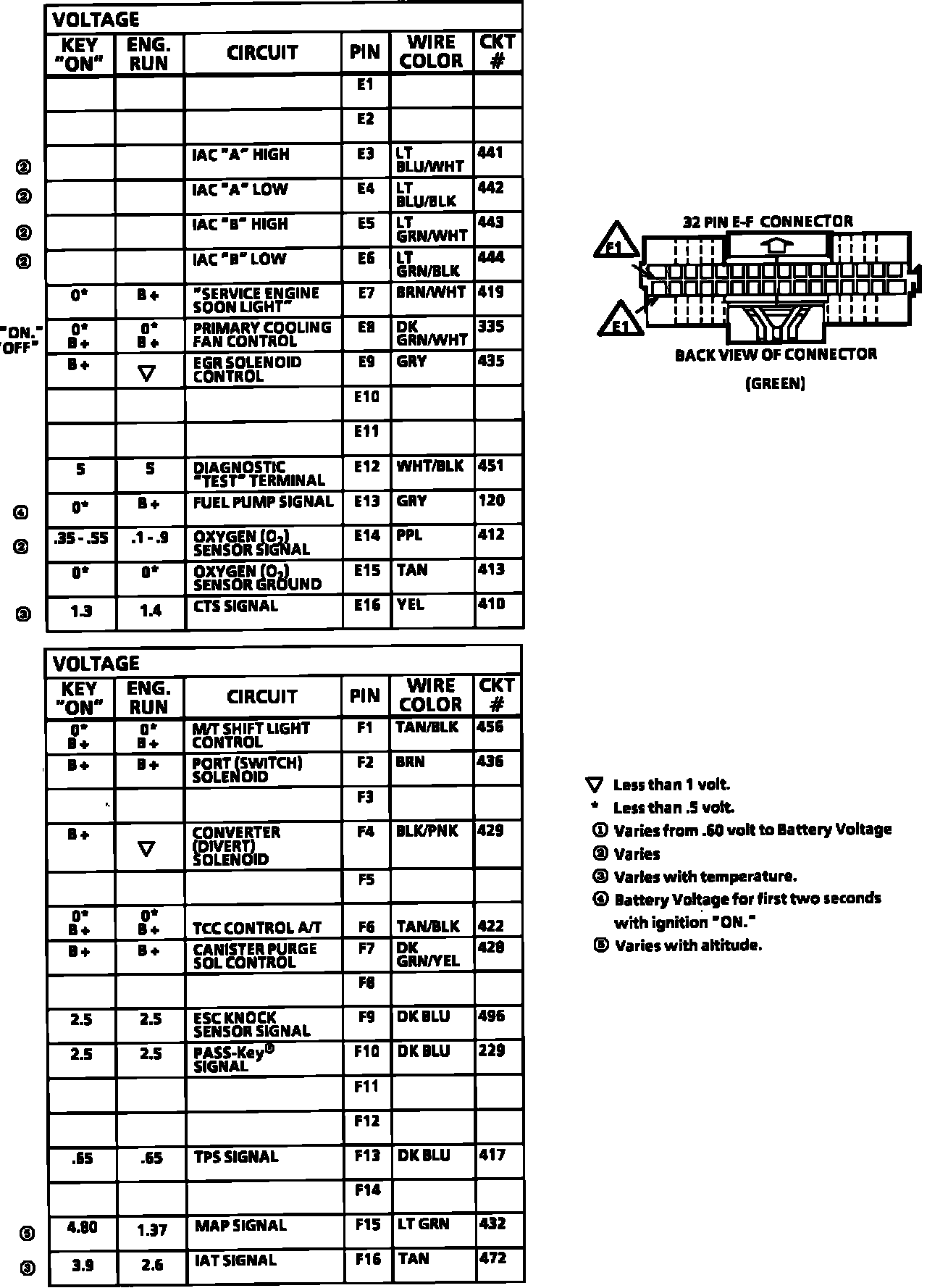

ECM Voltage Chart:



ECM Voltage Chart:



ECM Voltage Chart:
