Electronic Control Module (ECM)

Behind RH Side Of I/P.:

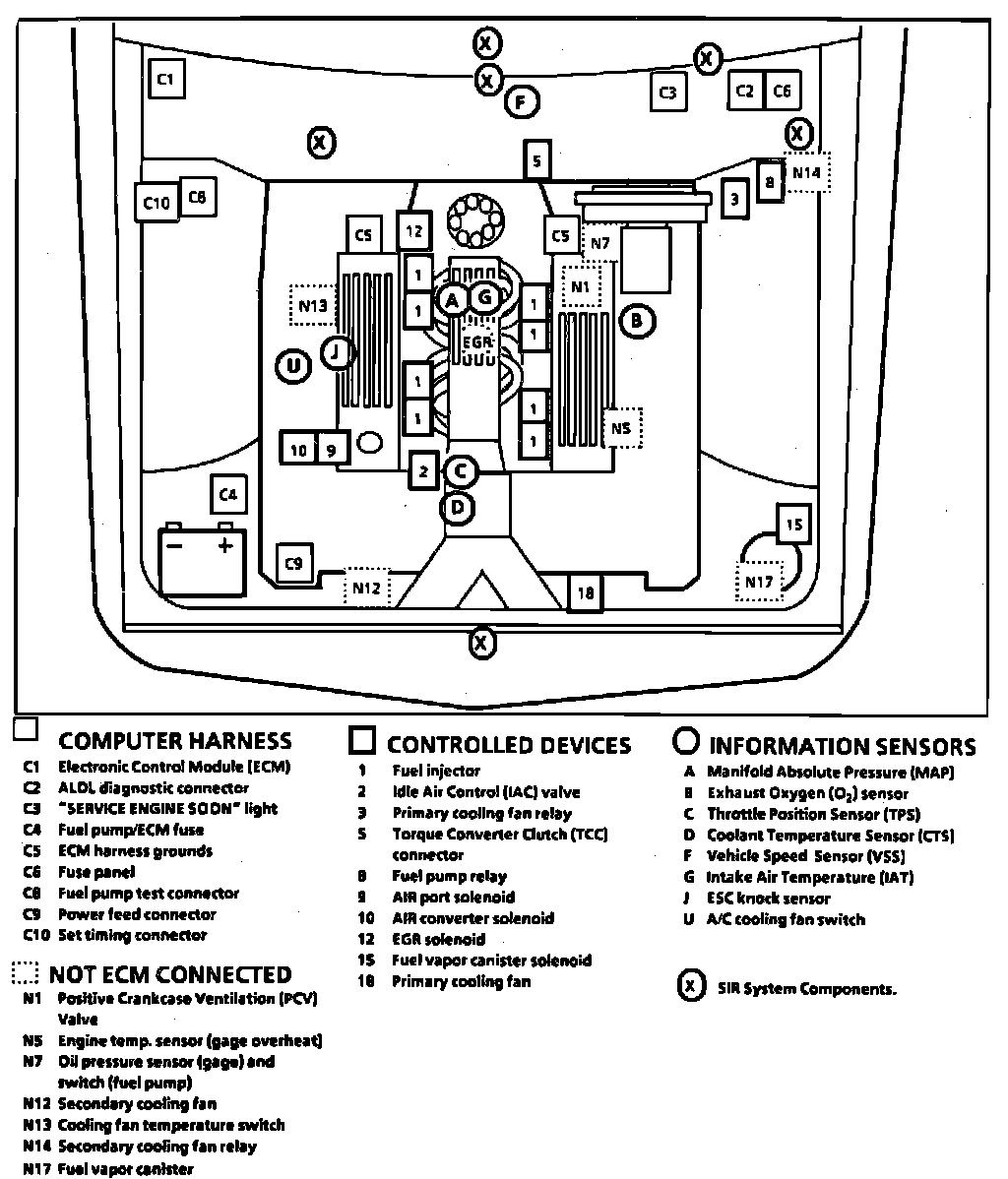

Engine Compartment Components.:





Behind RH Side Of I/P

Applicable to: 1992 Camaro w/5.0L/V8-305 VIN F & 5.7L/V8-350
