Data Link Connector: Locations

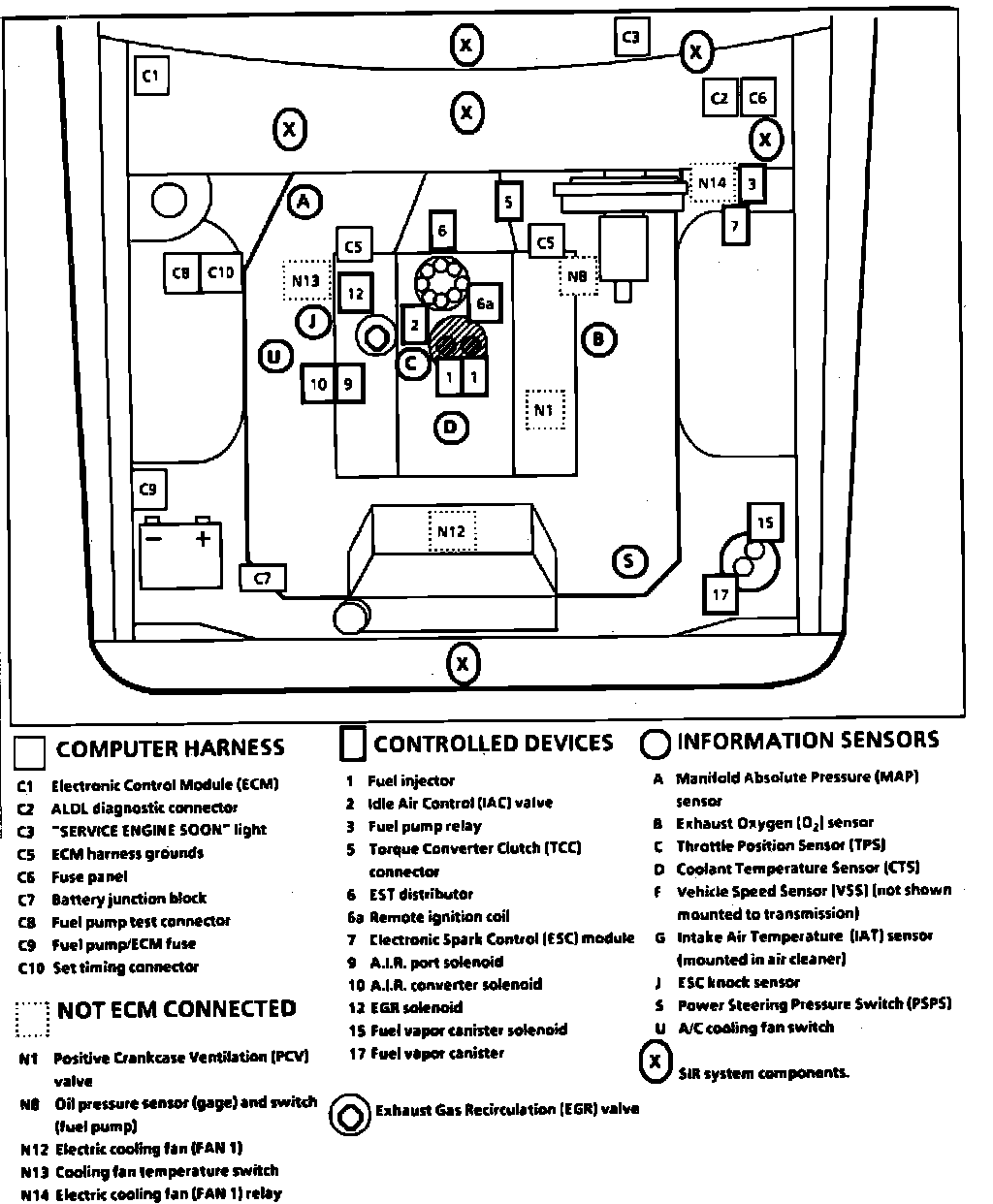

Engine Compartment Components.:

Below LH Side Of I/P, On Fuse Block

Applicable to: 1992 Firebird w/5.0L/V8-305 VIN F & 5.7L/V8-350

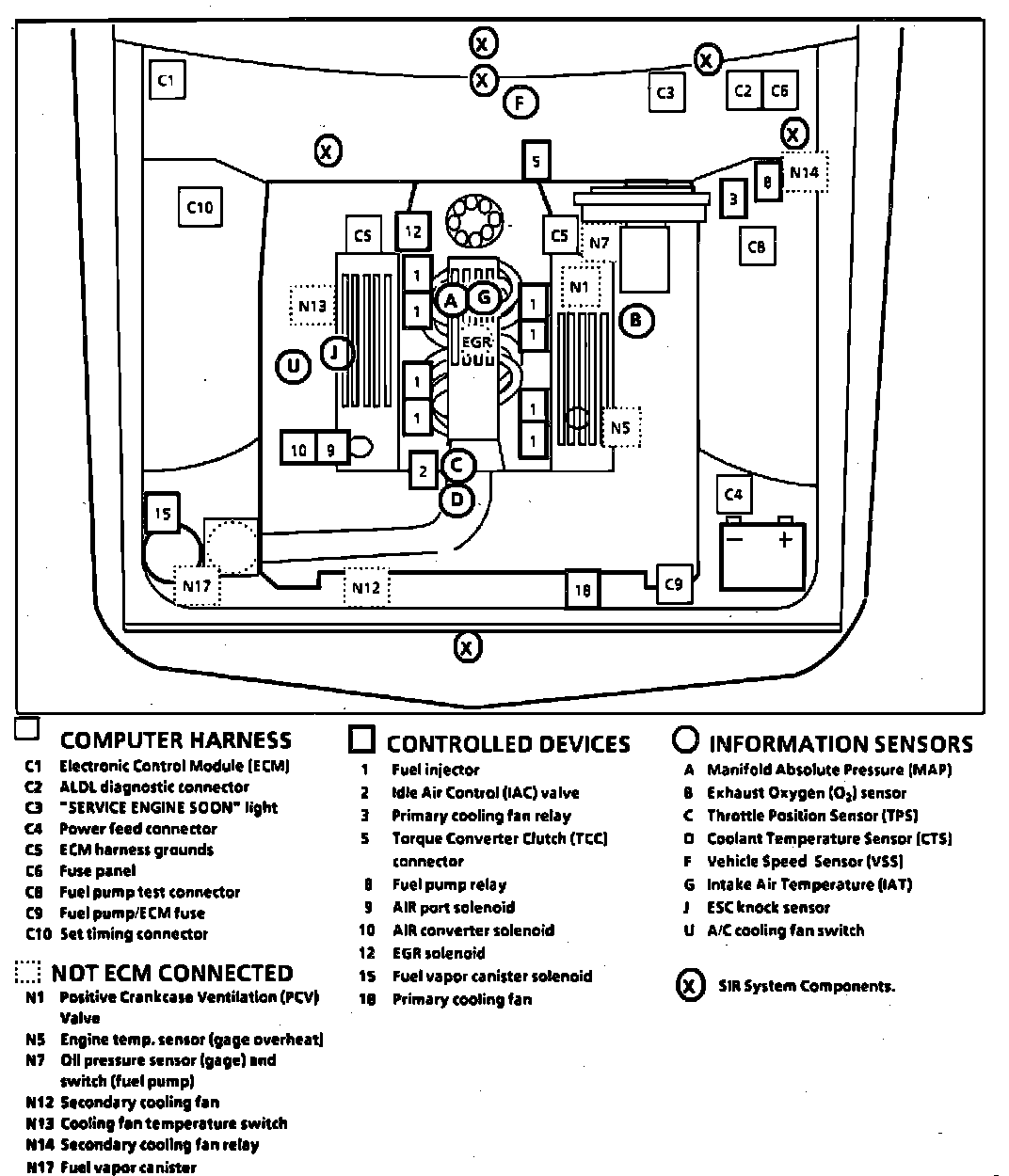

Engine Compartment Components.:

Below LH Side Of I/P, On Fuse Block

Applicable to: 1992 Camaro w/5.0L/V8-305 VIN F & 5.7L/V8-350

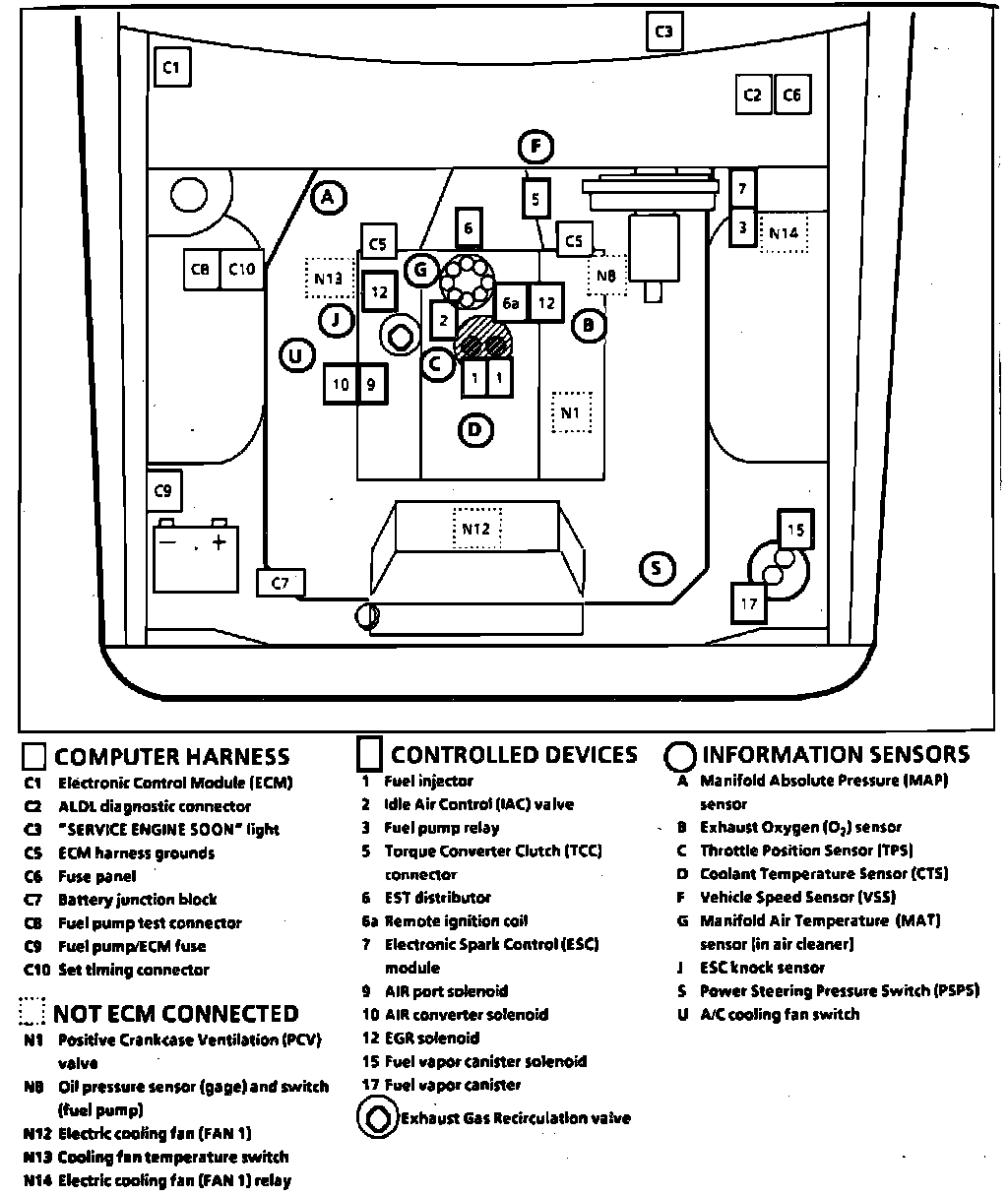

Engine Compartment Components.:

Below LH Side Of I/P, On Fuse Block

Applicable to: 1991 5.0L/V8-305 VIN F & 5.7L/V8-350

Engine Compartment Components.:

Below LH Side Of I/P, On Fuse Block

Applicable to: 1992 5.0L/V8-305 VIN E

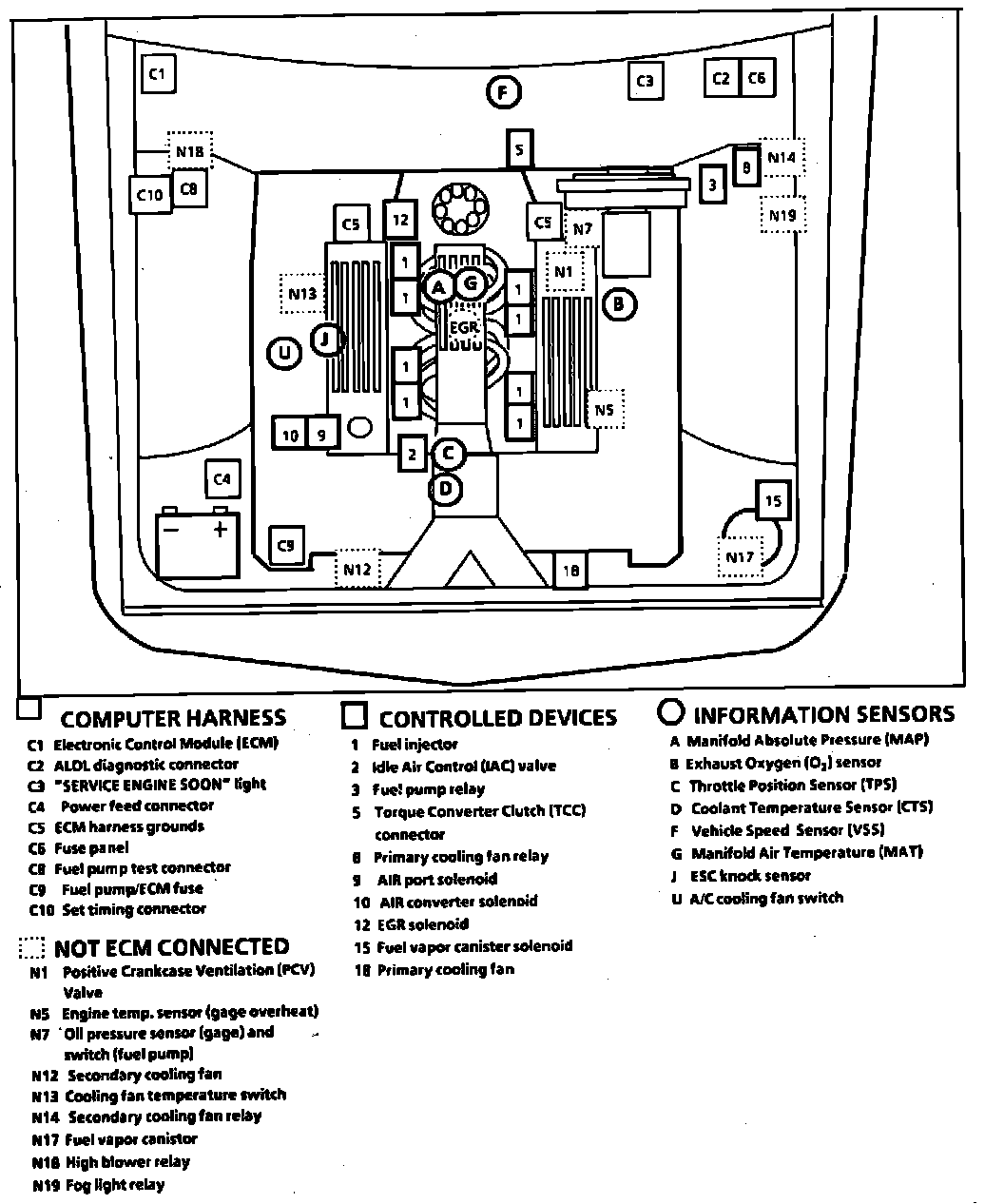

Engine Compartment Components.:

Below LH Side Of I/P, On Fuse Block

Applicable to: 1991 5.0L/V8-305 VIN E

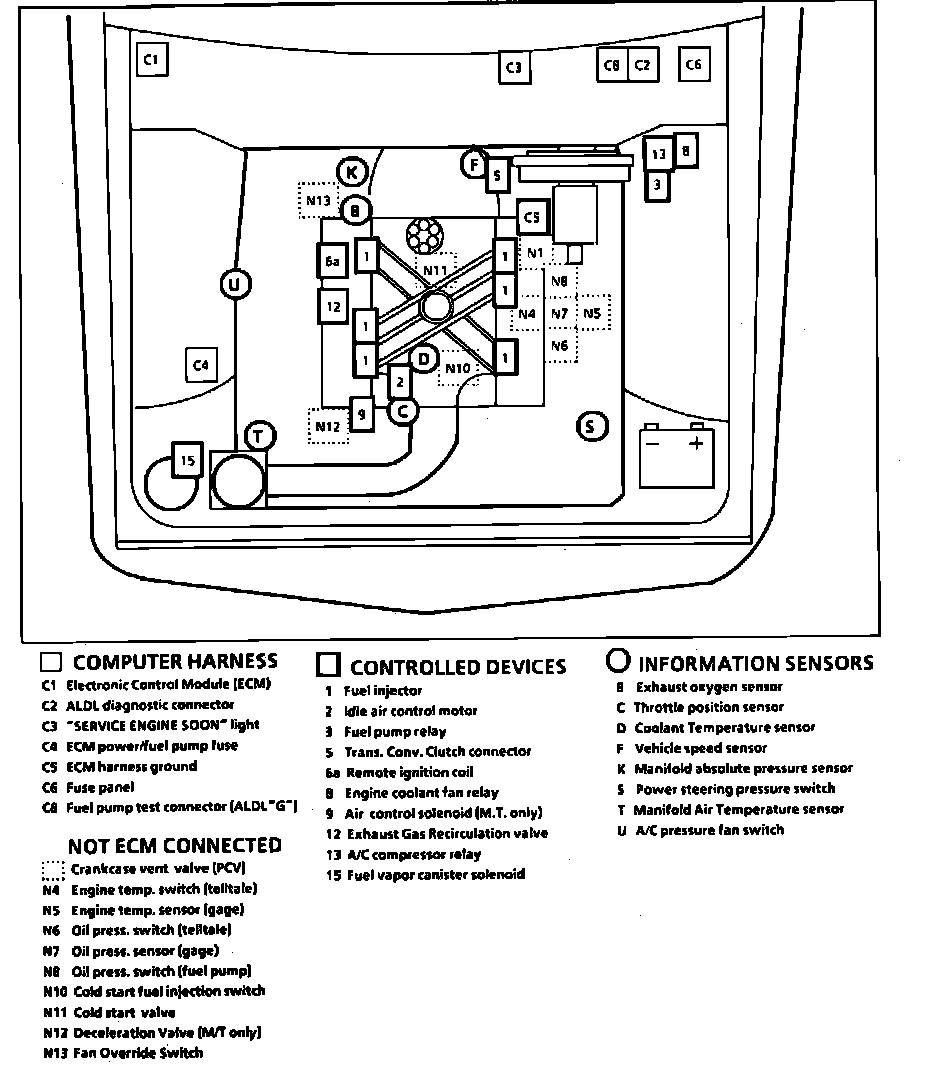

Engine Compartment Components.:

Below LH Side Of I/P, On Fuse Block

Applicable to: 1992 3.1L/V6-192

Engine Compartment Components.:

Below LH Side Of I/P, On Fuse Block

Applicable to: 1991 3.1L/V6-192

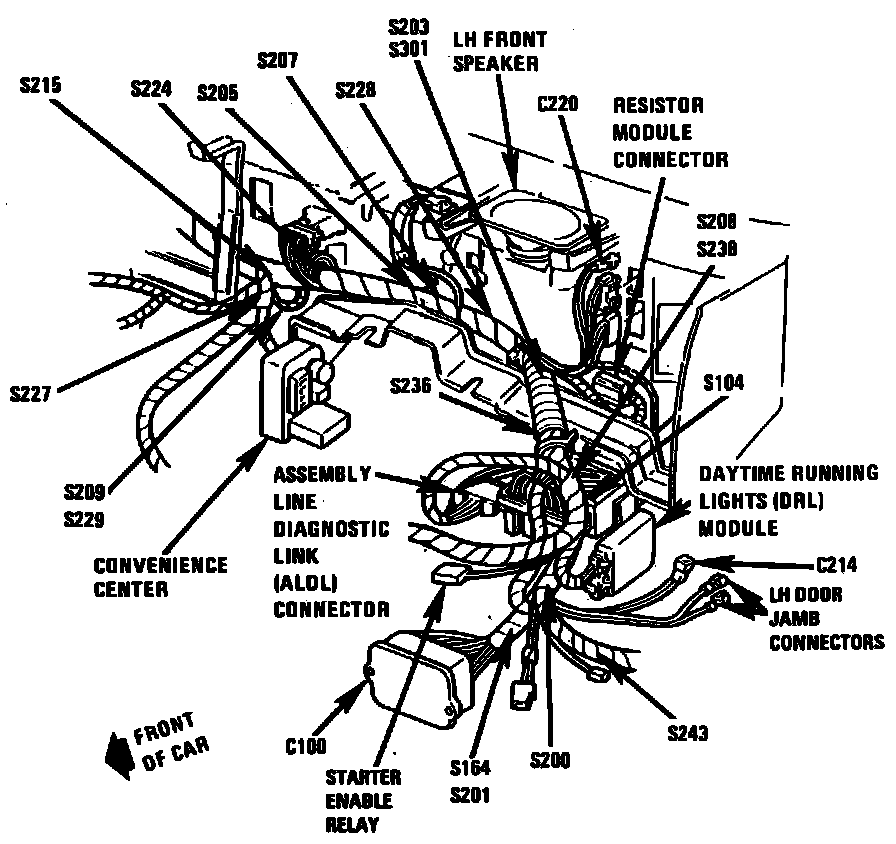

Behind LH Side Of I/P.:

Below LH Side Of I/P, On Fuse Block

Applicable to: Firebird
