Low Oil Module

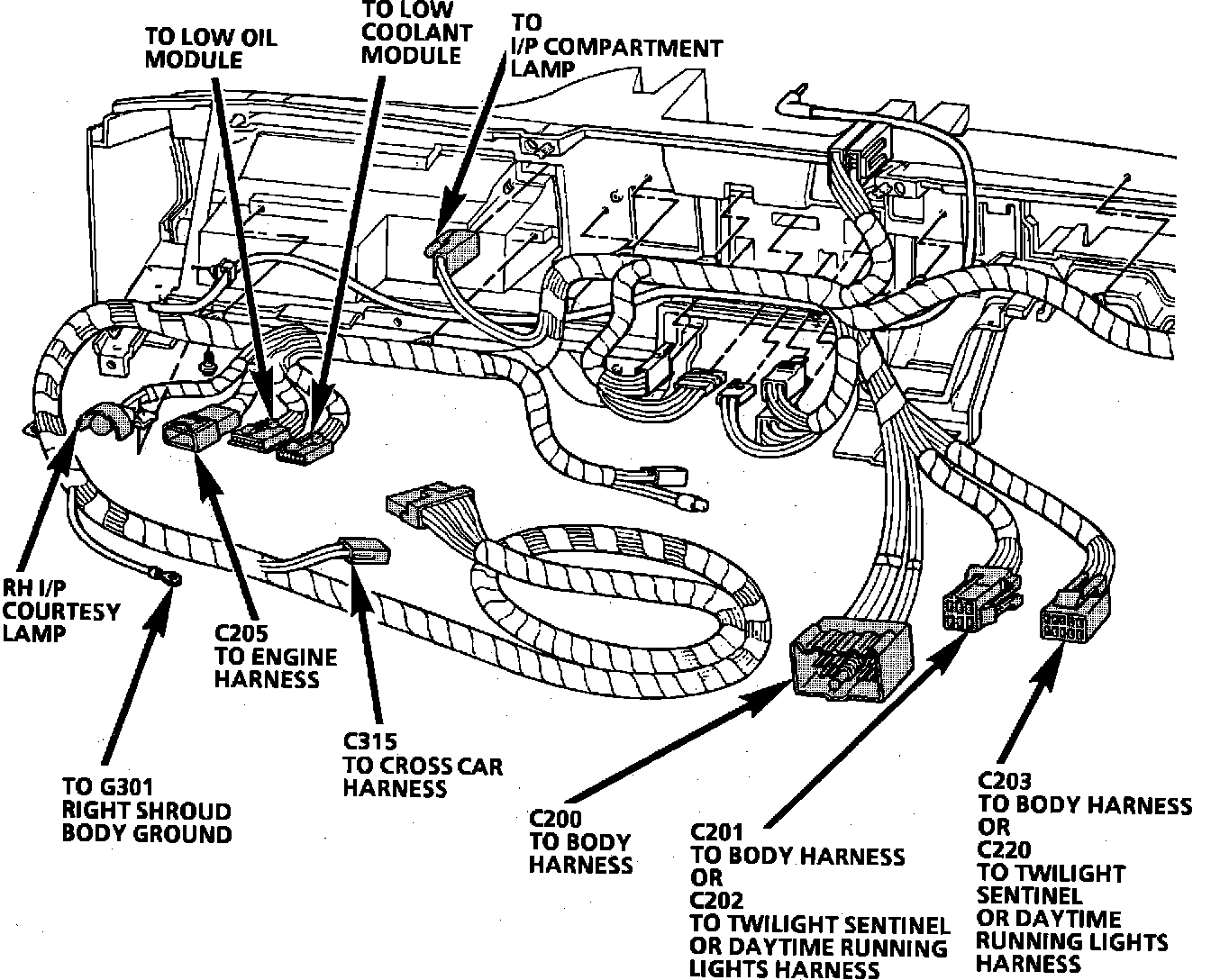

Component Location View. Rear View of RH Instrument Panel:
Clipped to bottom of I/P Carrier, under I/P Compartment
