Harness Connector

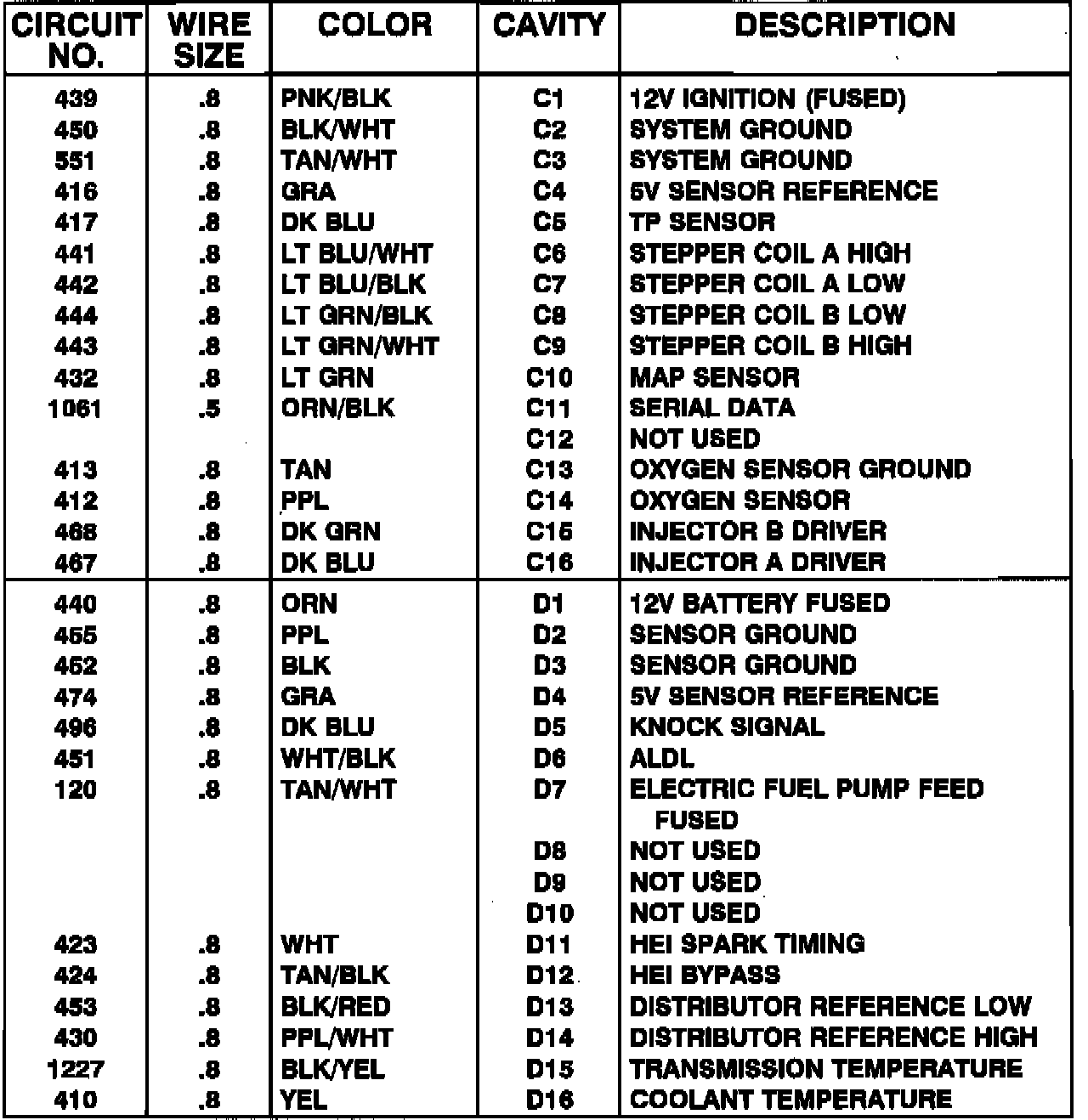

Powertrain Control Module (PCM) Connector:



Powertrain Control Module (PCM) Connector:
