System Specifications

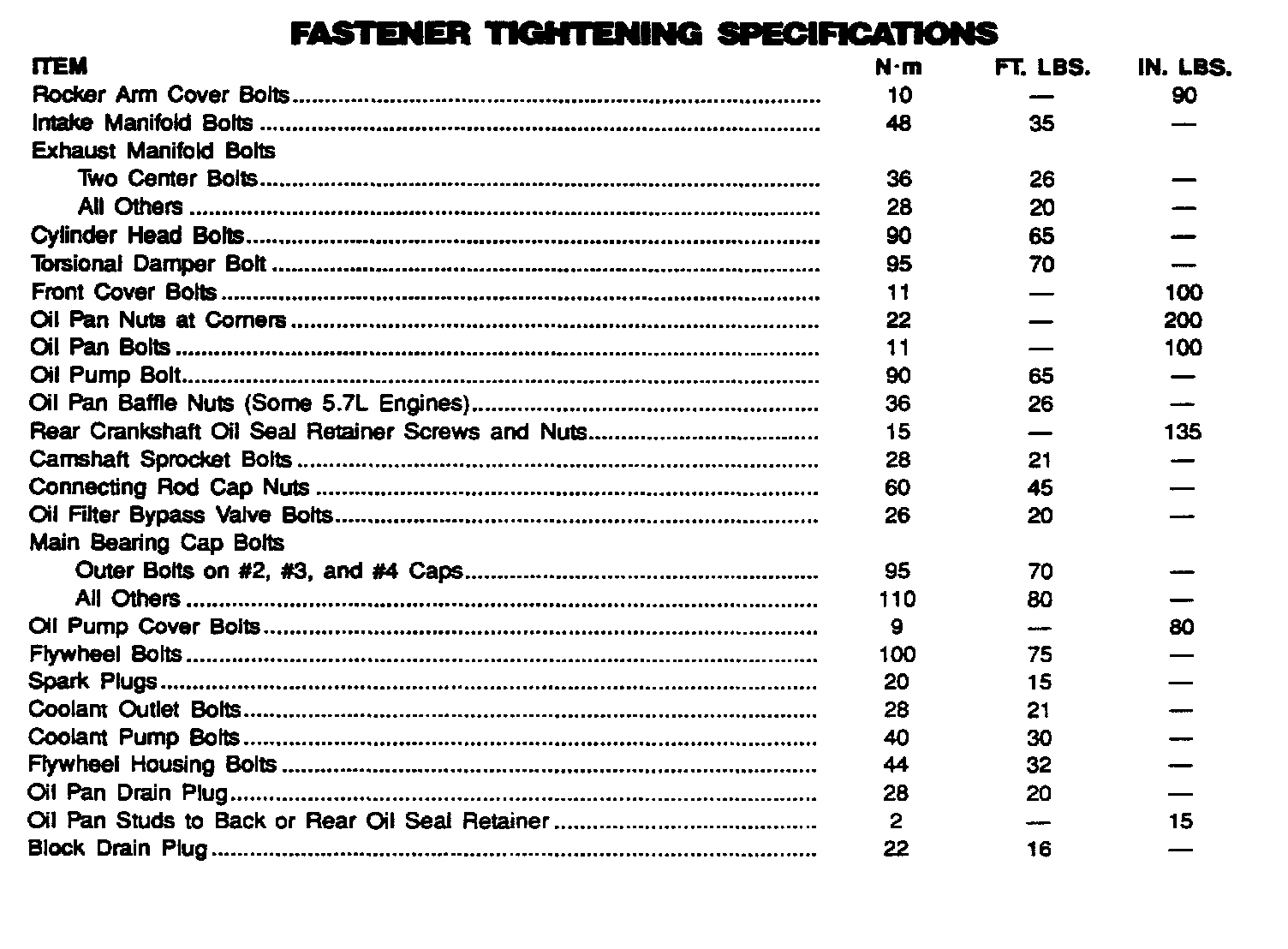

Torque Specifications:

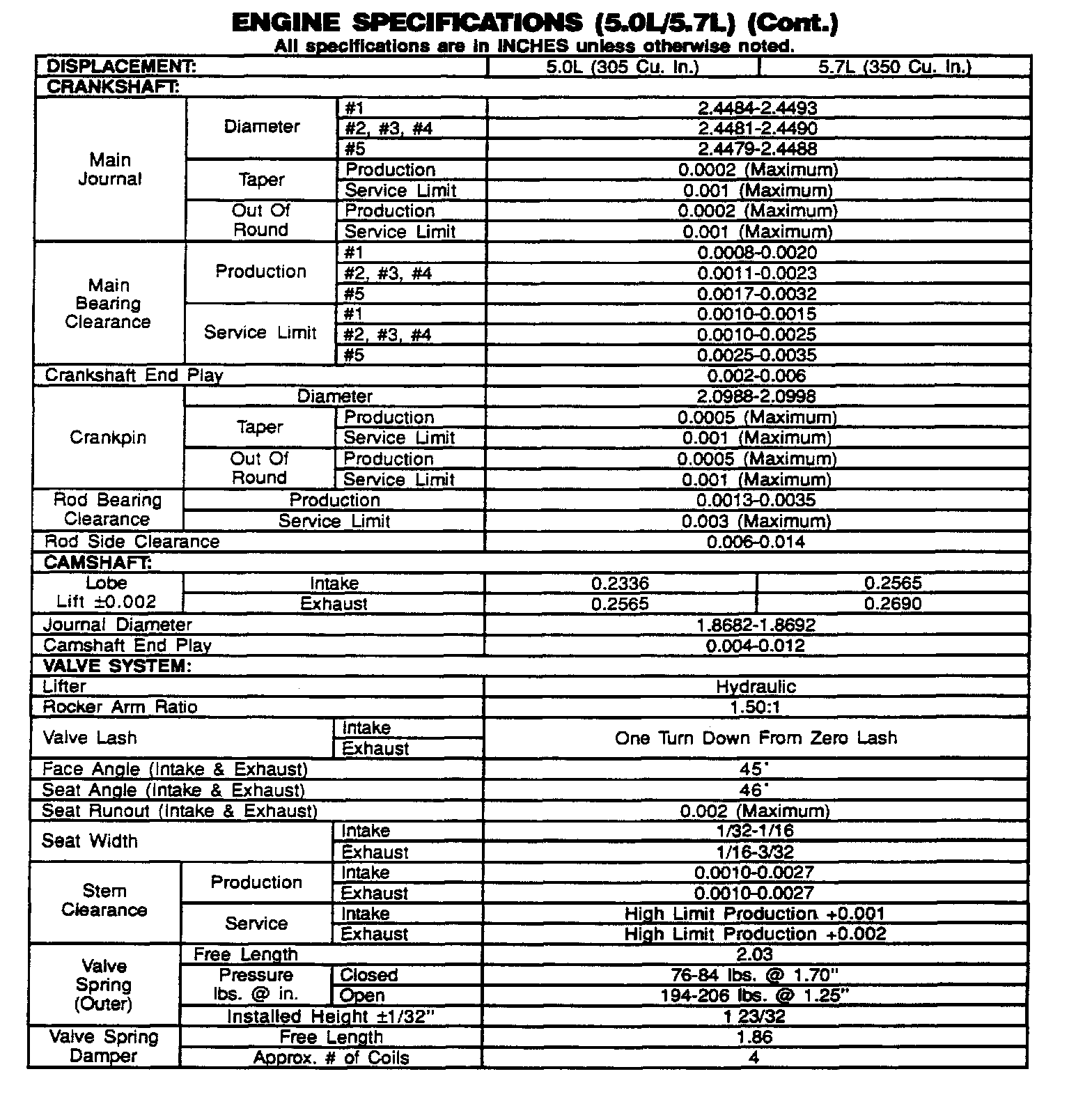

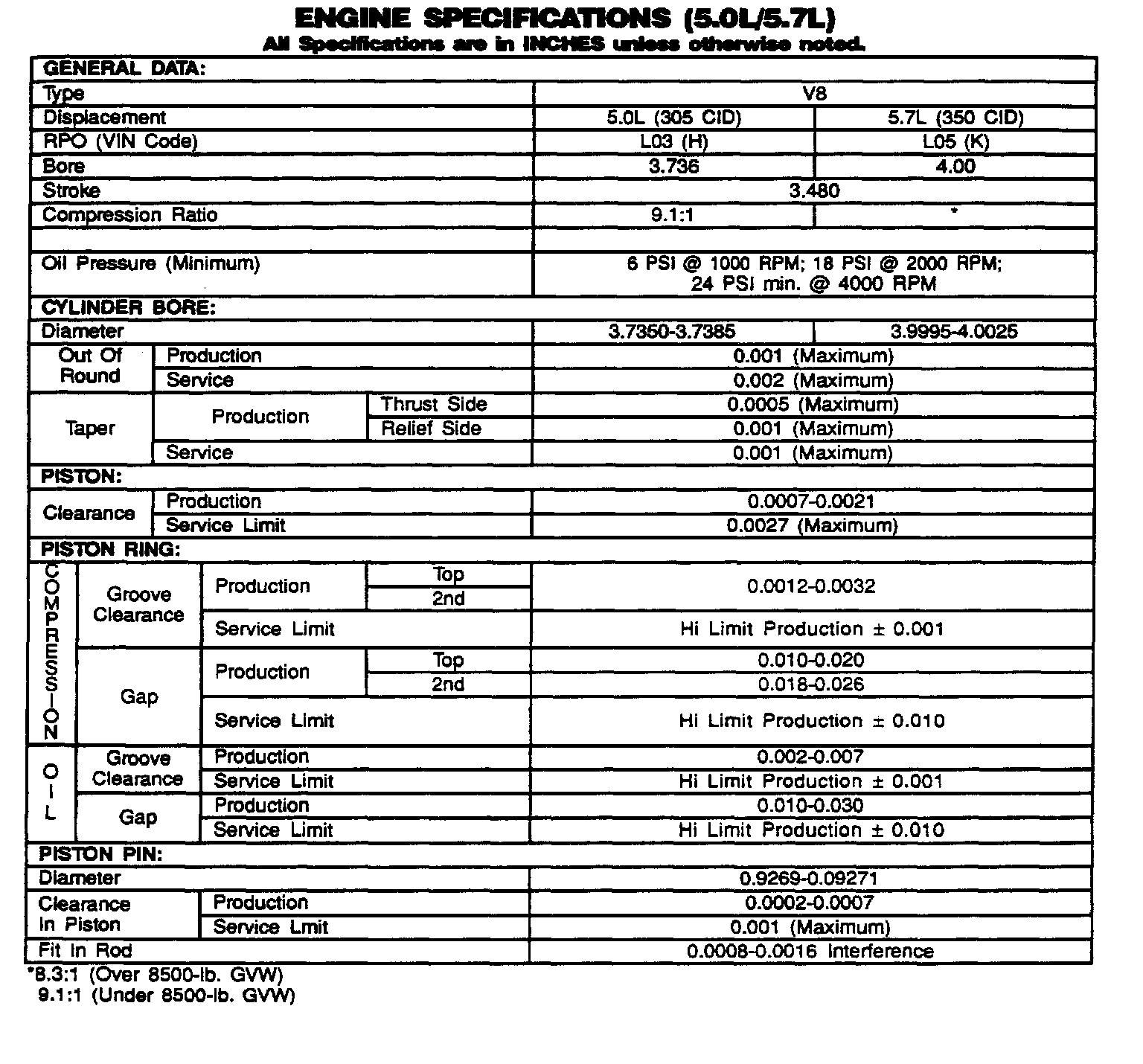

Engine Specifications:





Engine Specifications:





Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
