Electronic Brake Control Module

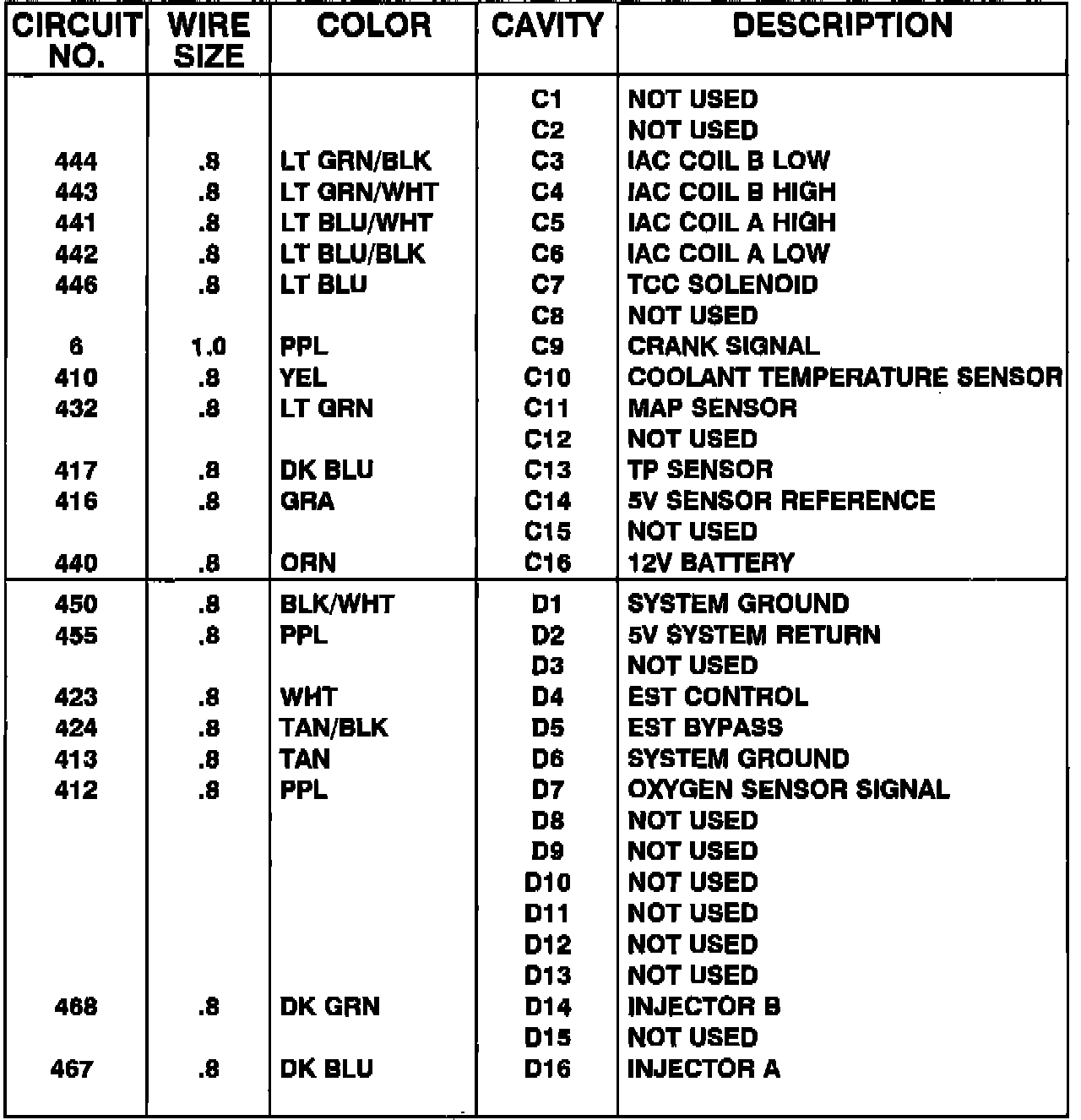

Electronic Control Module Connector:
Electronic Control Module Connector:
