Control Module HVAC

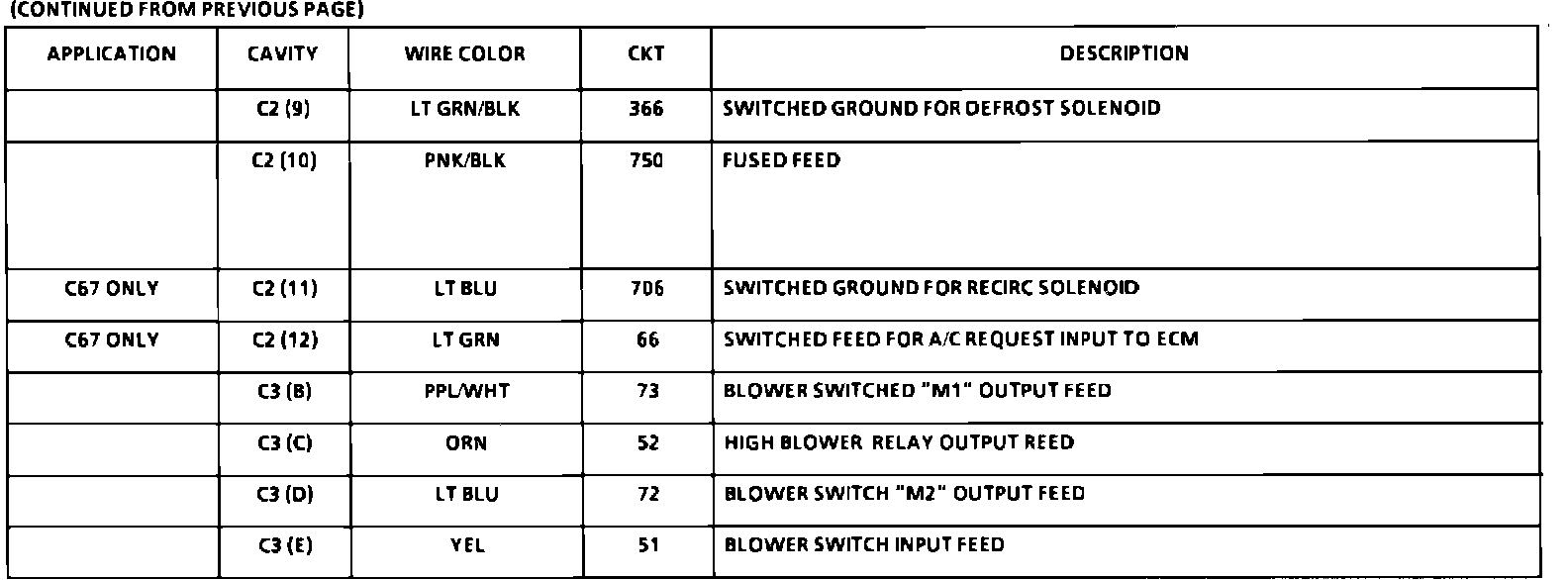

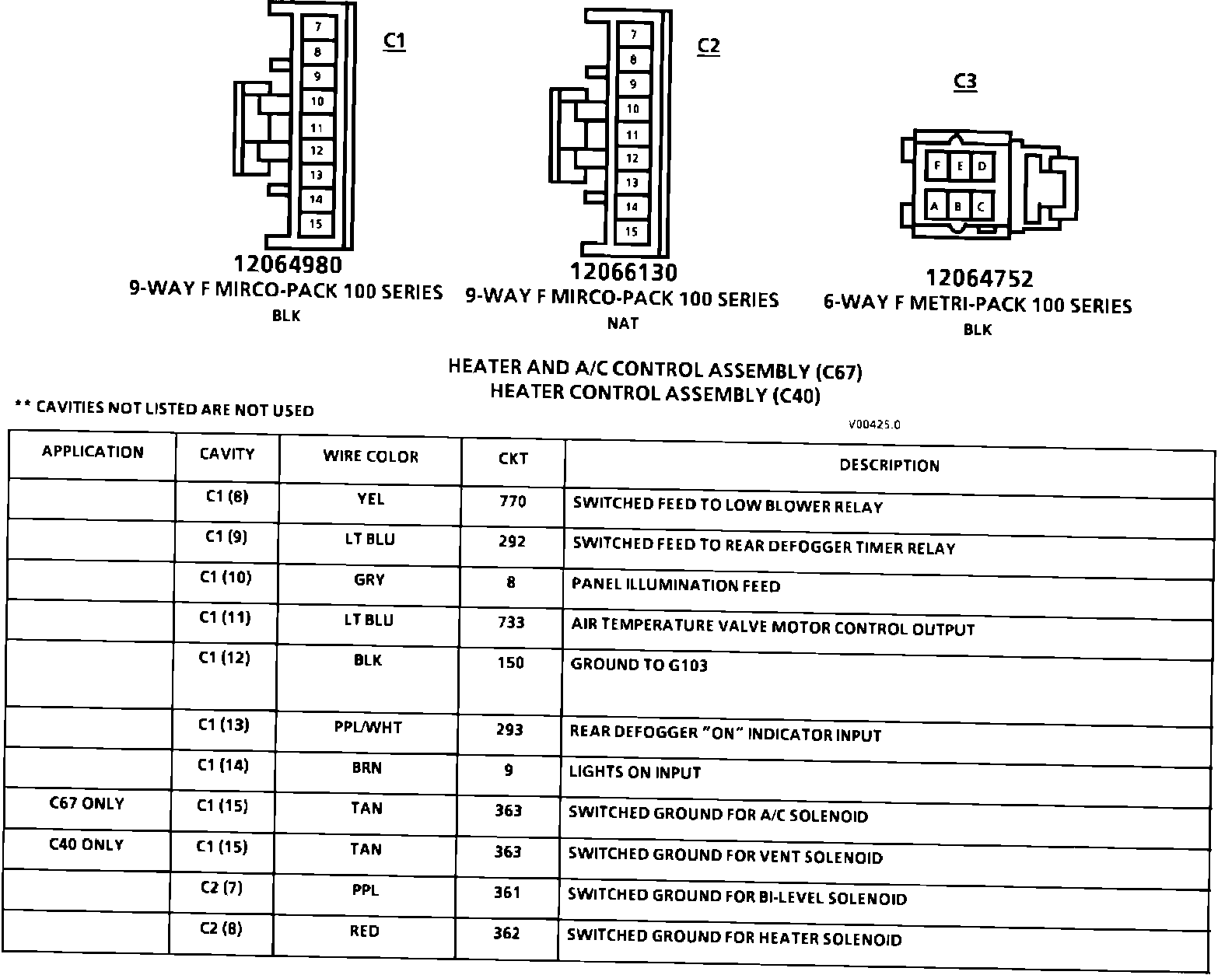

Heater And A/C Control Assembly Connector Face:

Heater And A/C Control Assembly Connector Face:
