System Specifications

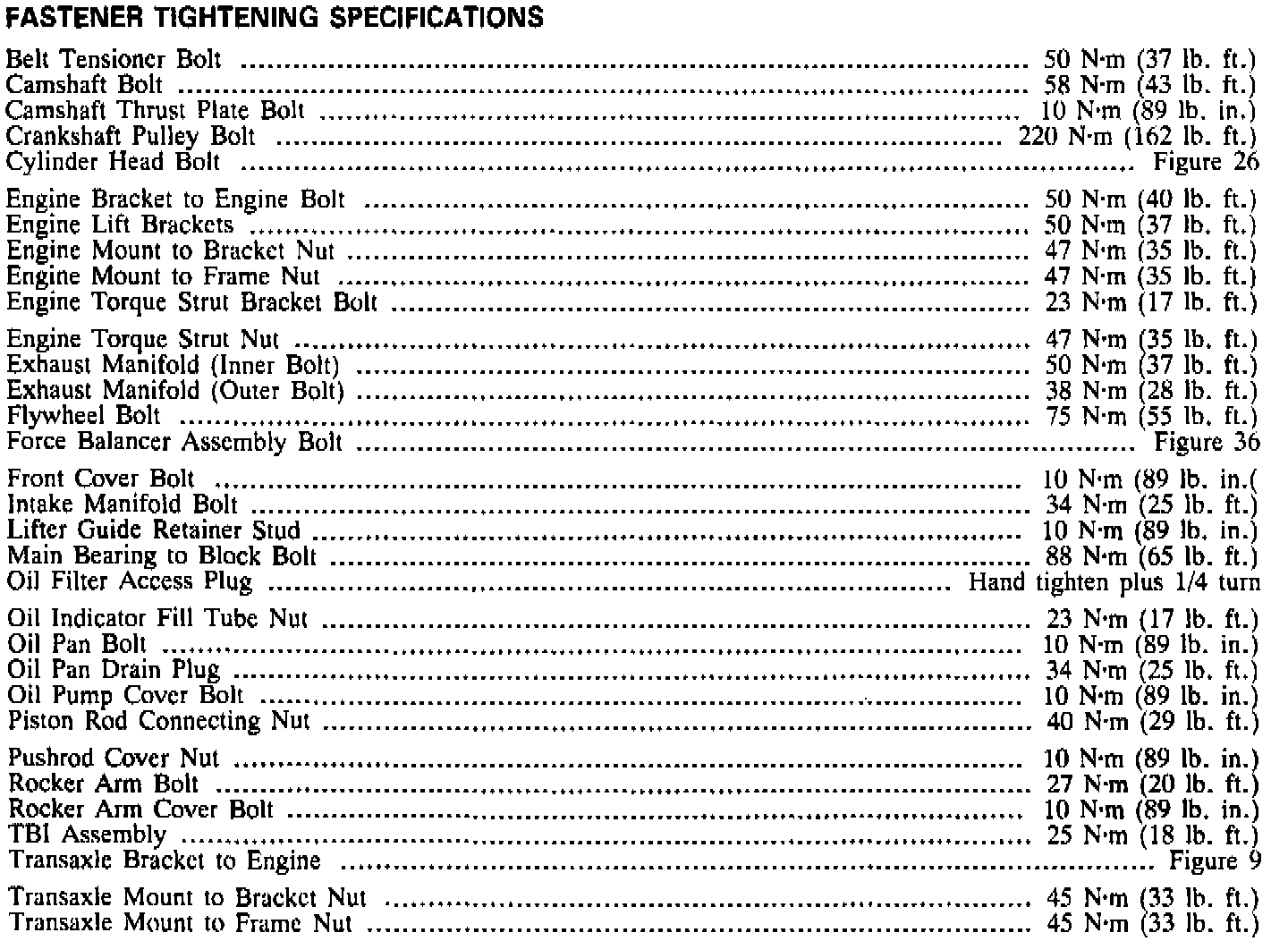

Torque Specifications:

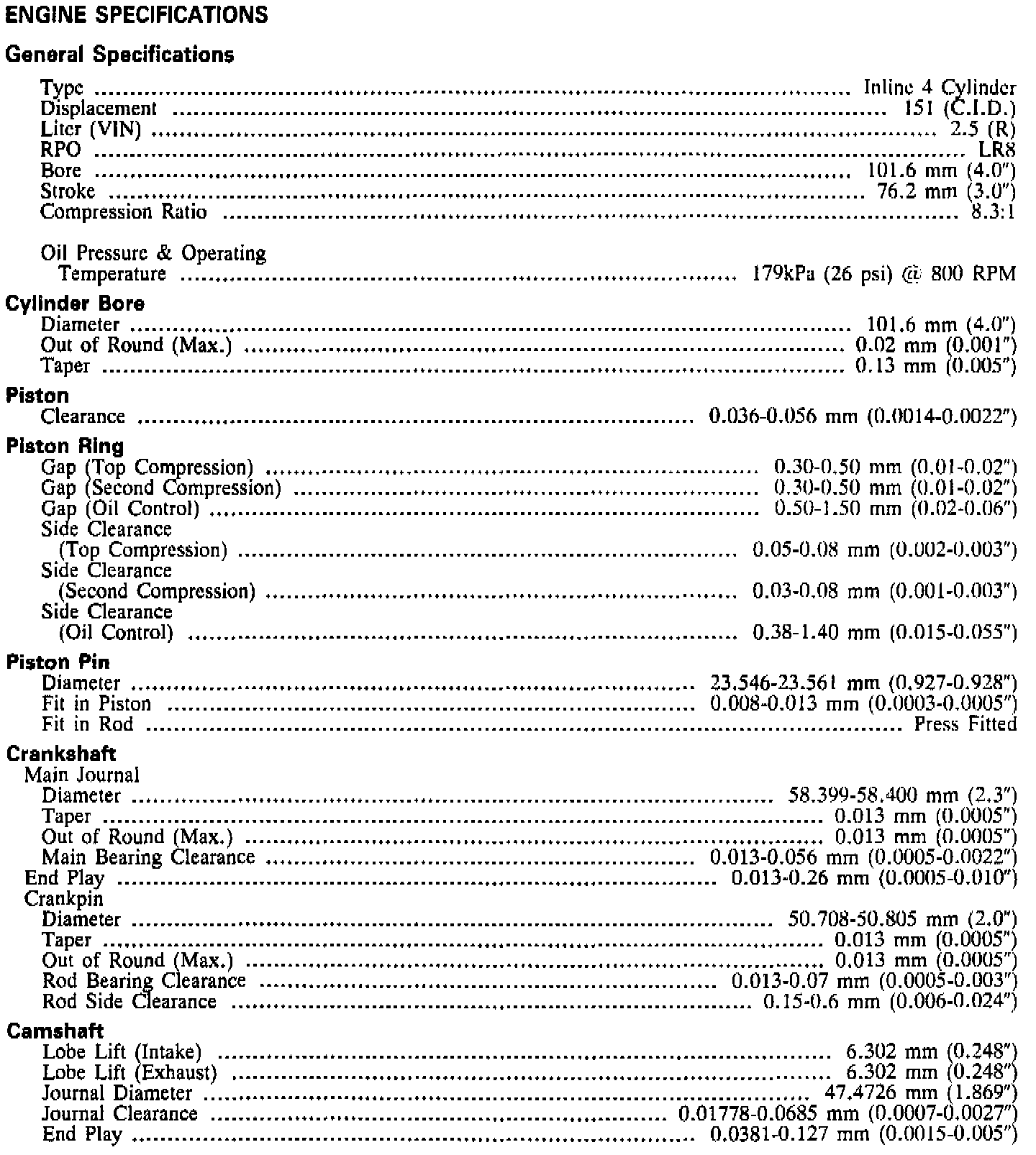

Engine Specifications:

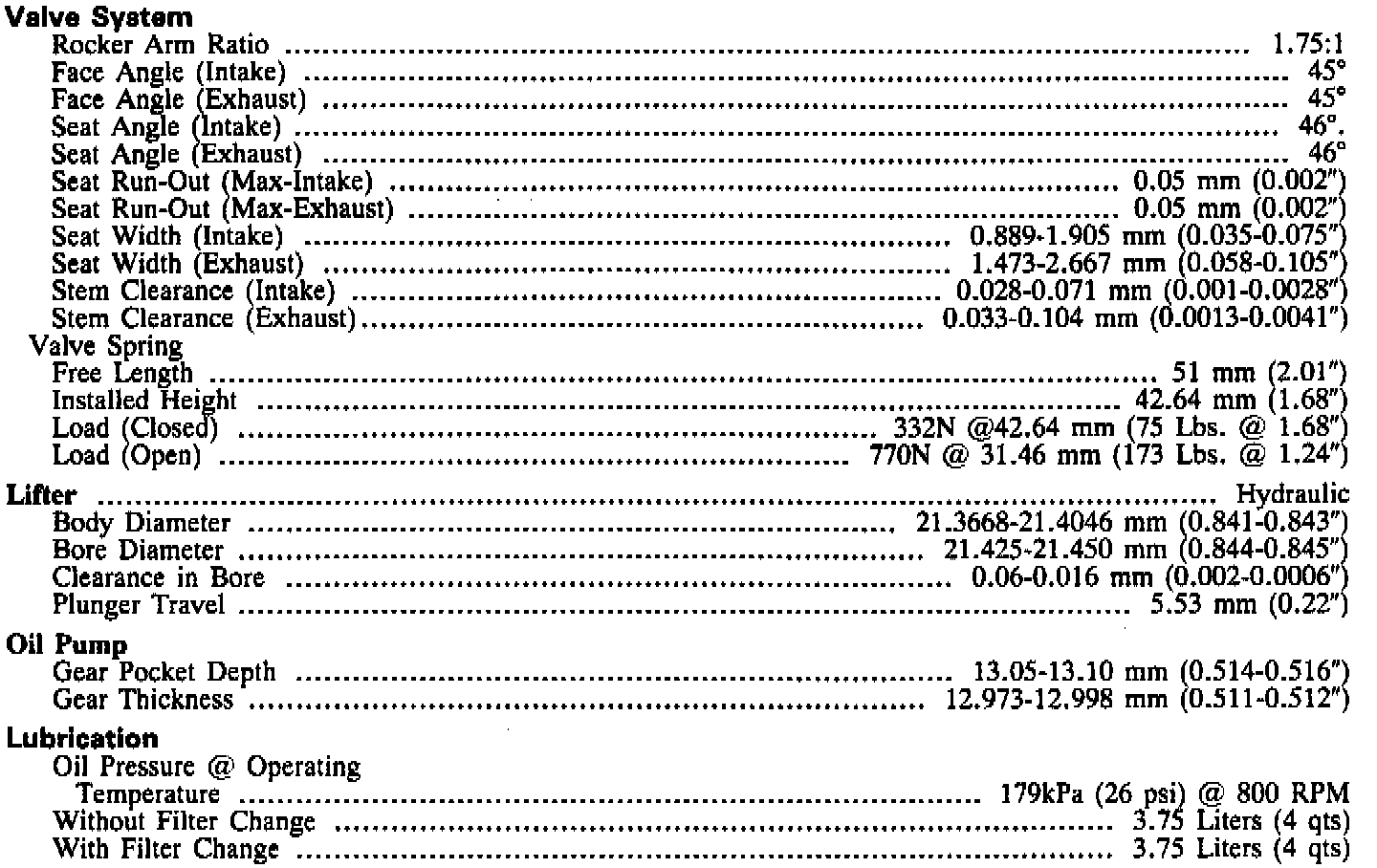

Engine Specifications (continued):

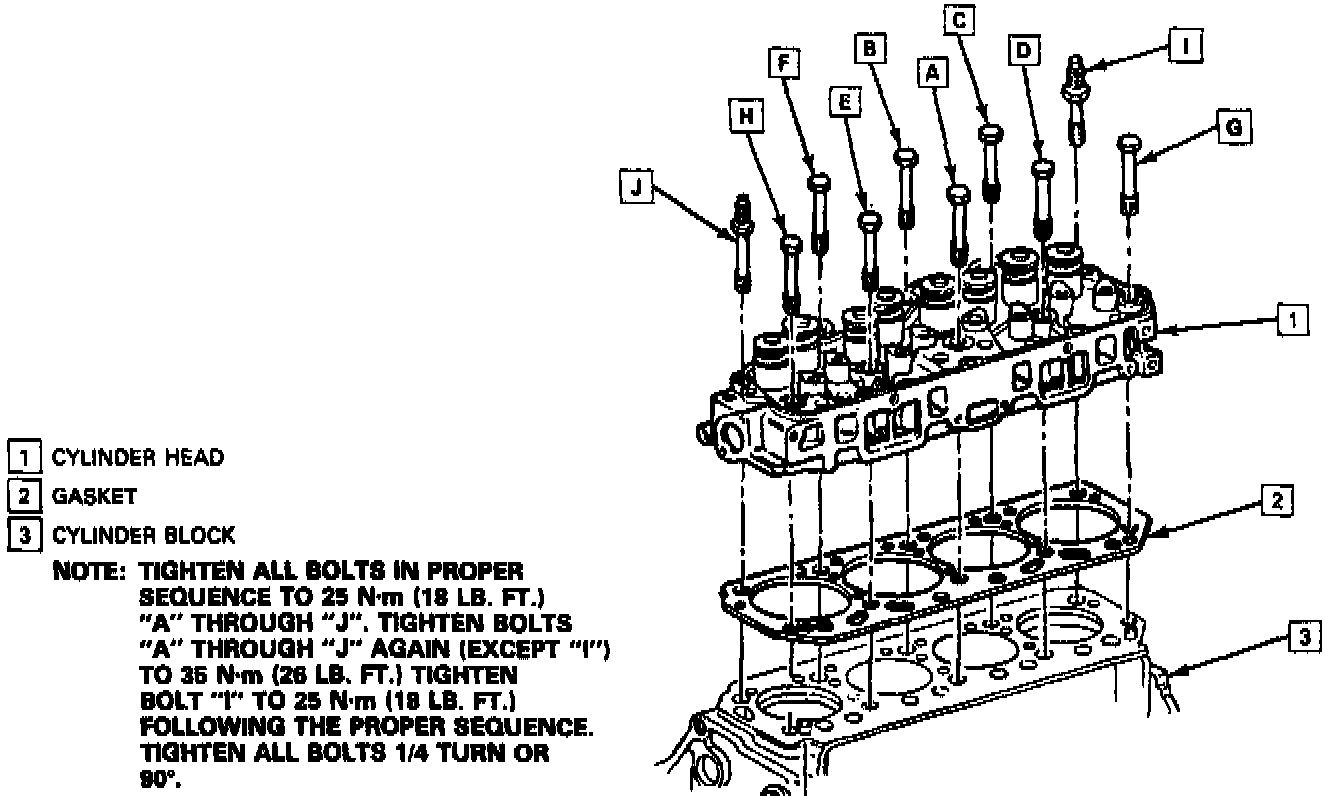

Cylinder Head Sequence:

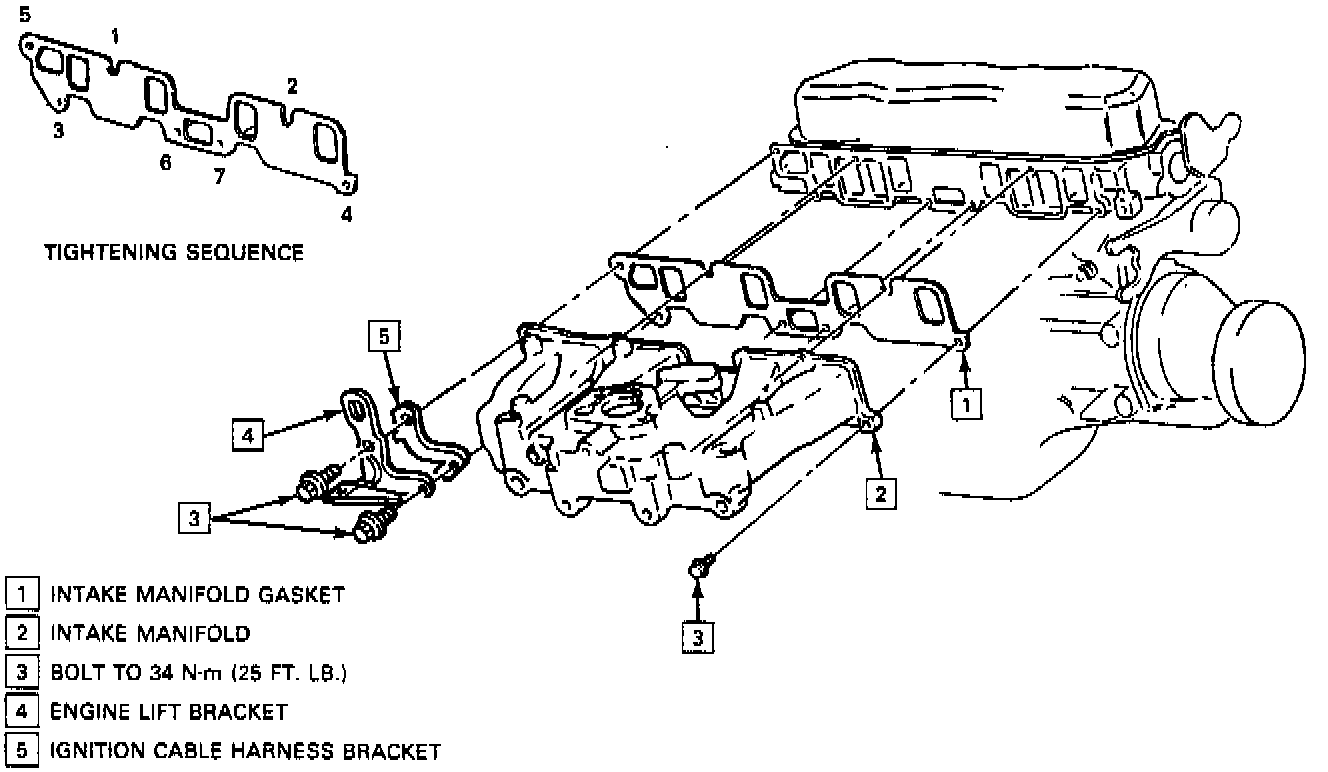

Intake Manifold Sequence:
