Code 26, Quad-Driver Circuit 3.8L: Overview

NOTE: Test number refers to number on diagnostic chart.

This determines if problem is circuit or component. Factory-installed PCM has an internal fuse and is unlikely to need replacement.

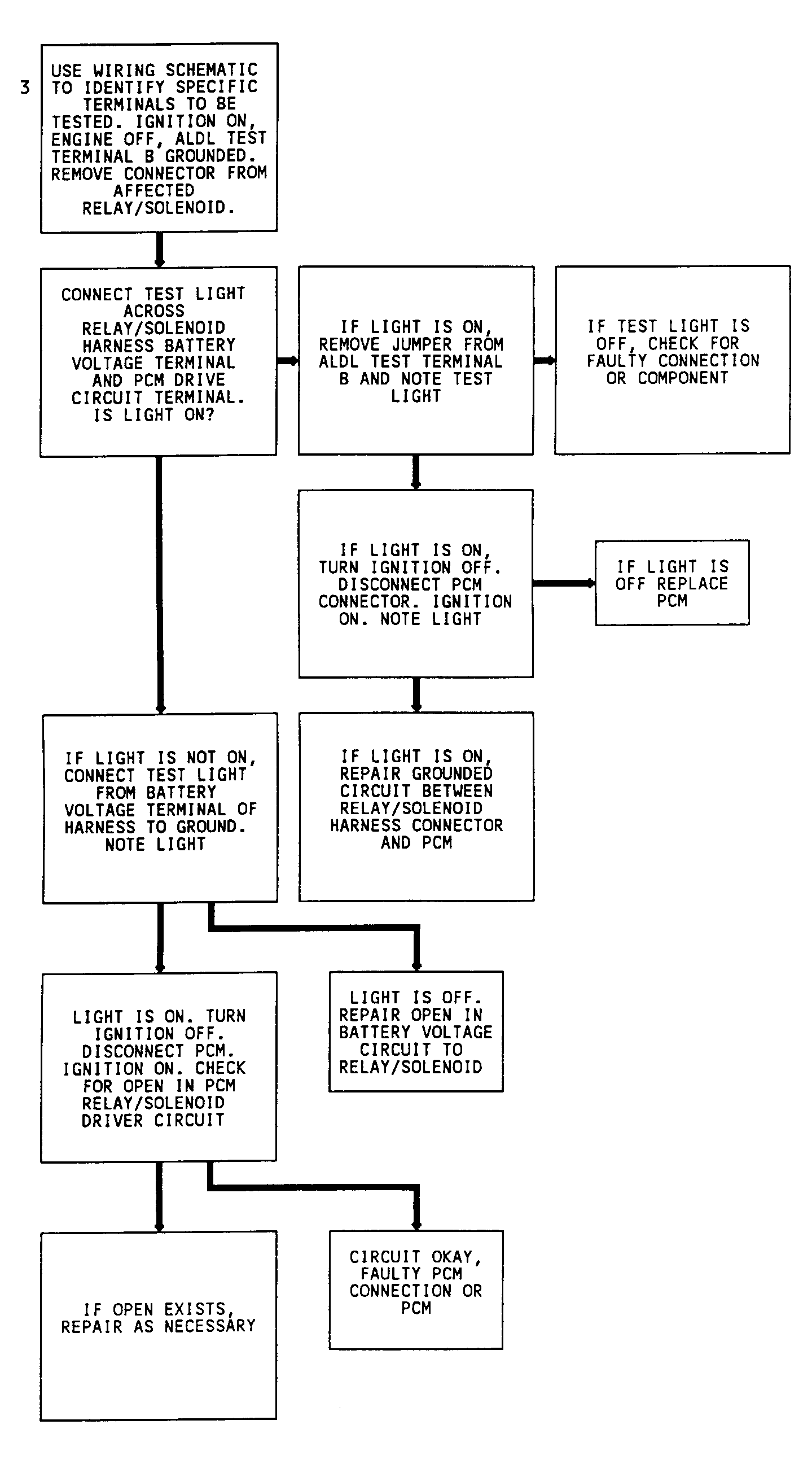

Fig 1: CODE 26, Flowchart, Quad Driver Circuit (3.8L)(2 of 2)
