Passkey Decoder Module Terminal Identification and Pinout

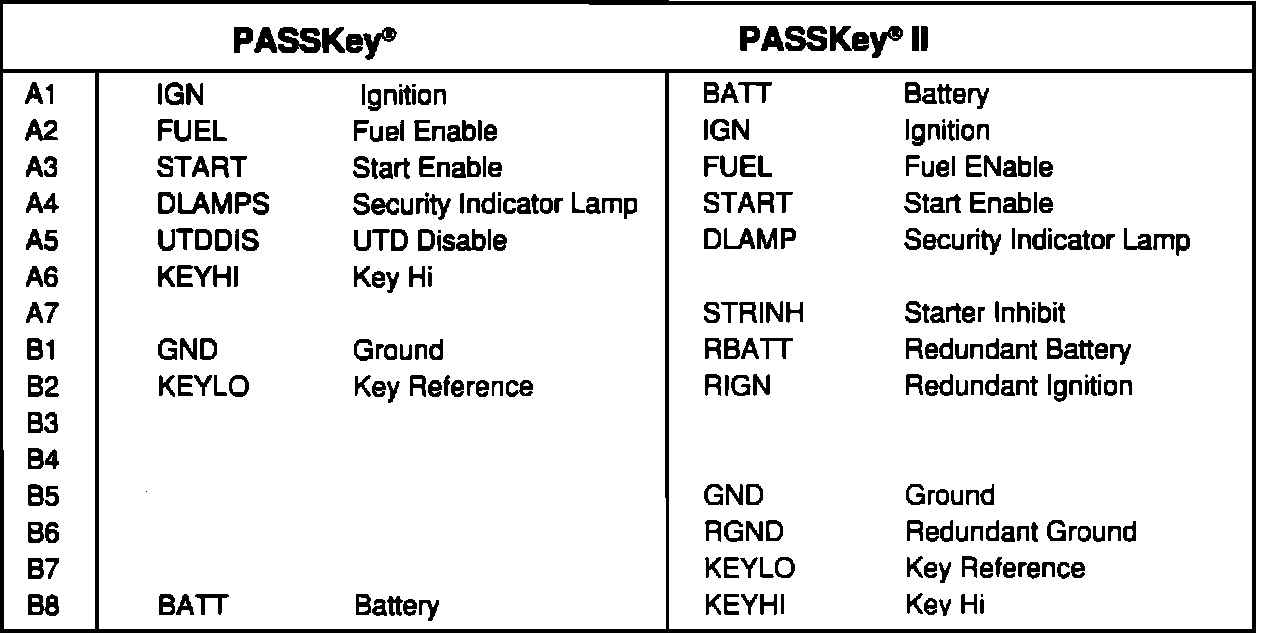

Passkey And Passkey II Module Pinout Table:

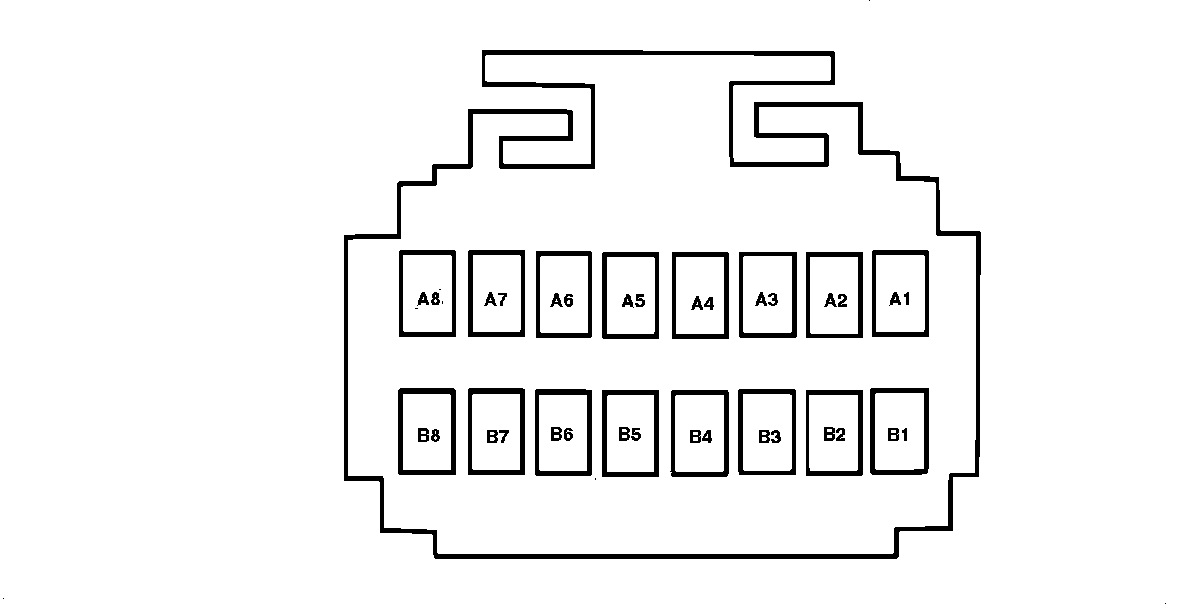

Passkey Module Connector Pinout:
