Engine Control Module

Part 1 of 4

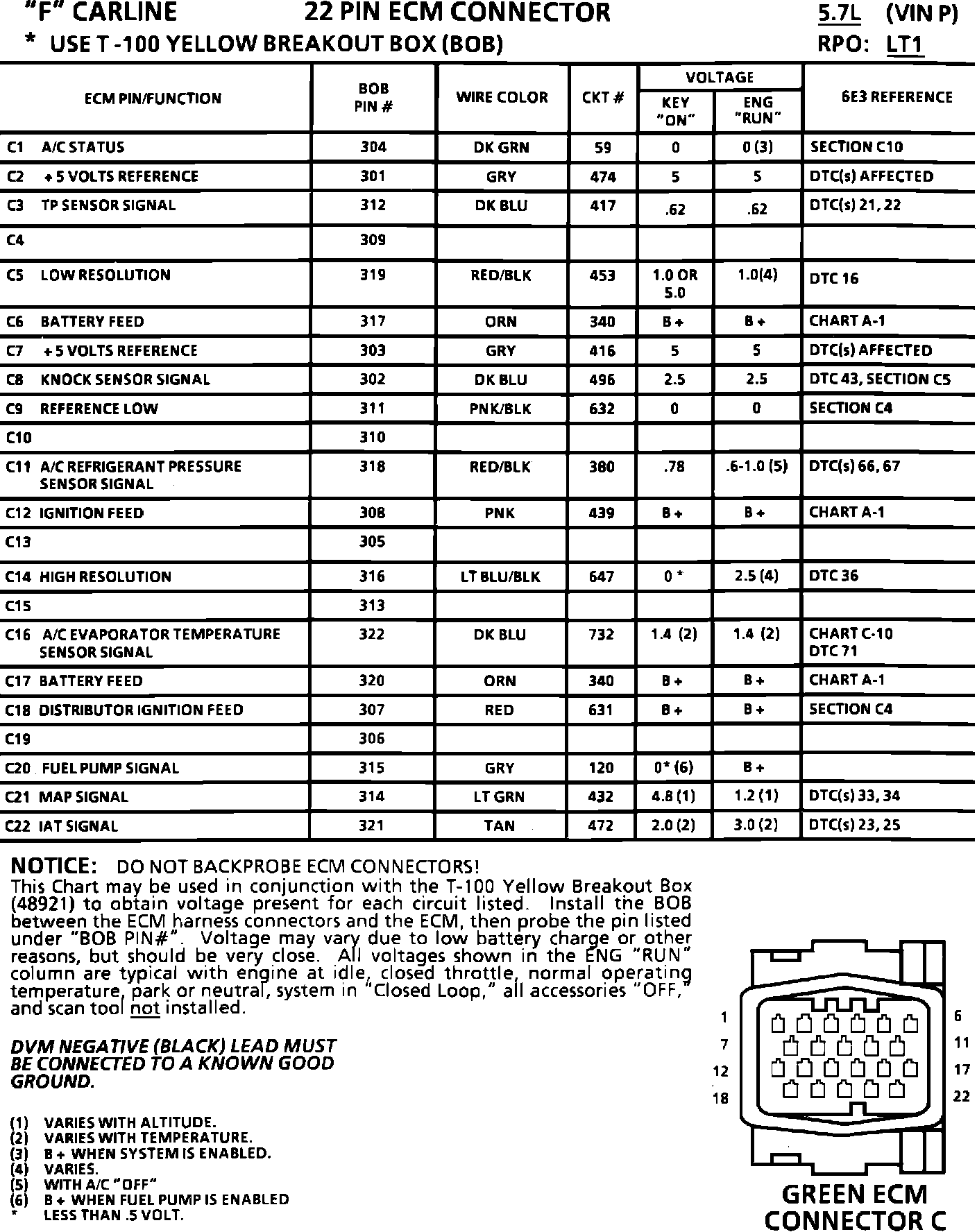

ECM Terminal Voltage Chart:






Part 2 of 4

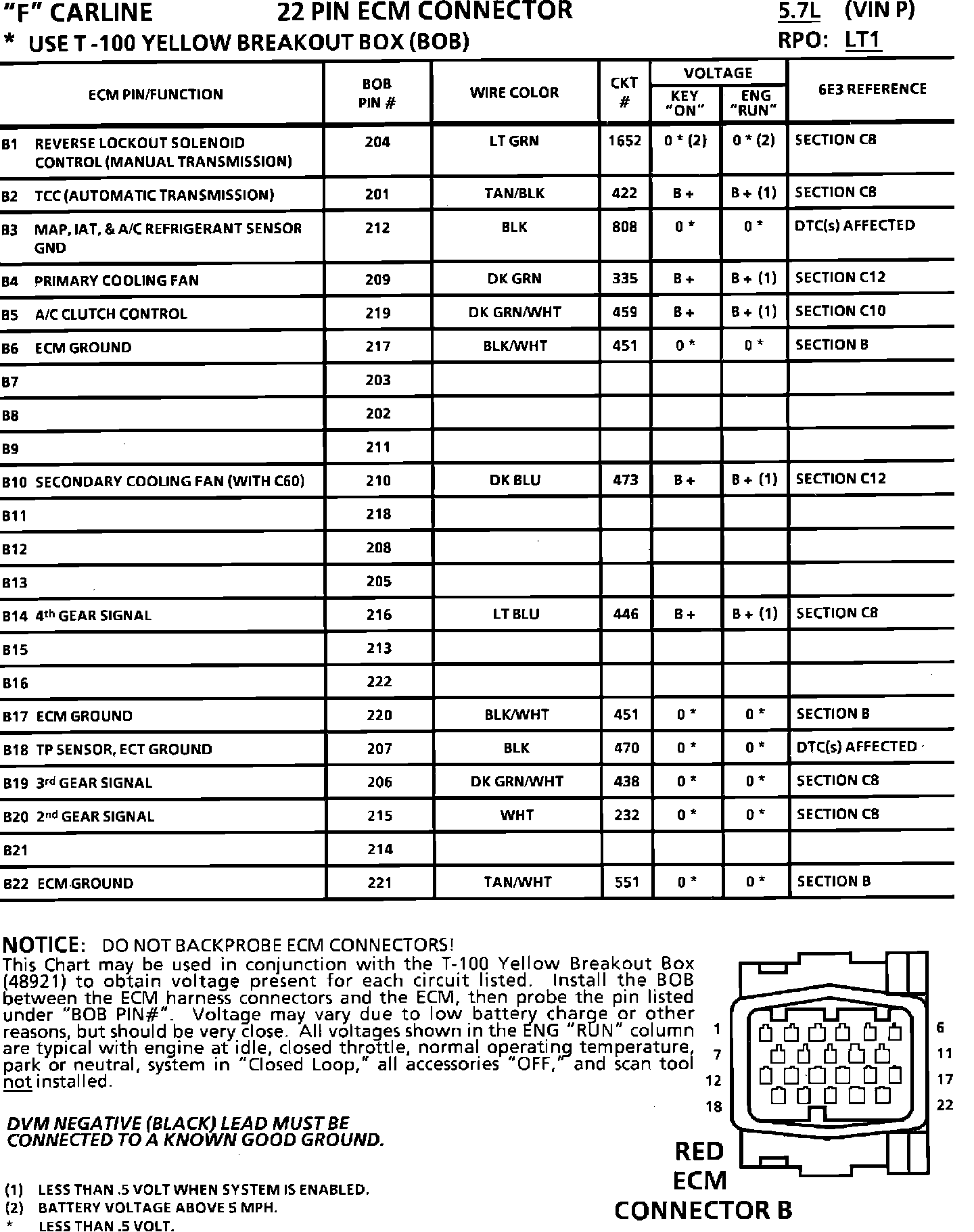

ECM Terminal Voltage Chart:






Part 3 of 4

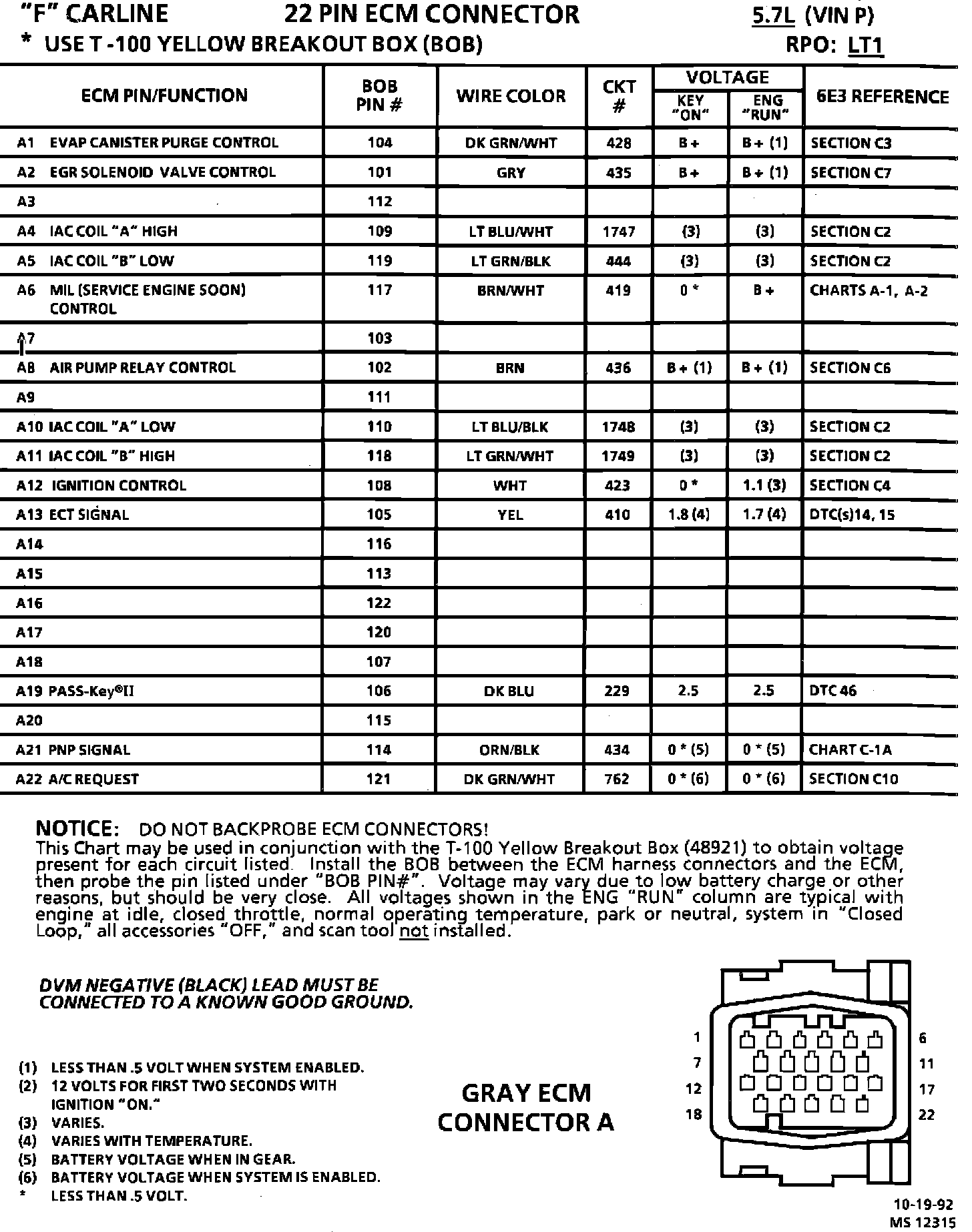

ECM Terminal Voltage Chart:






Part 4 of 4

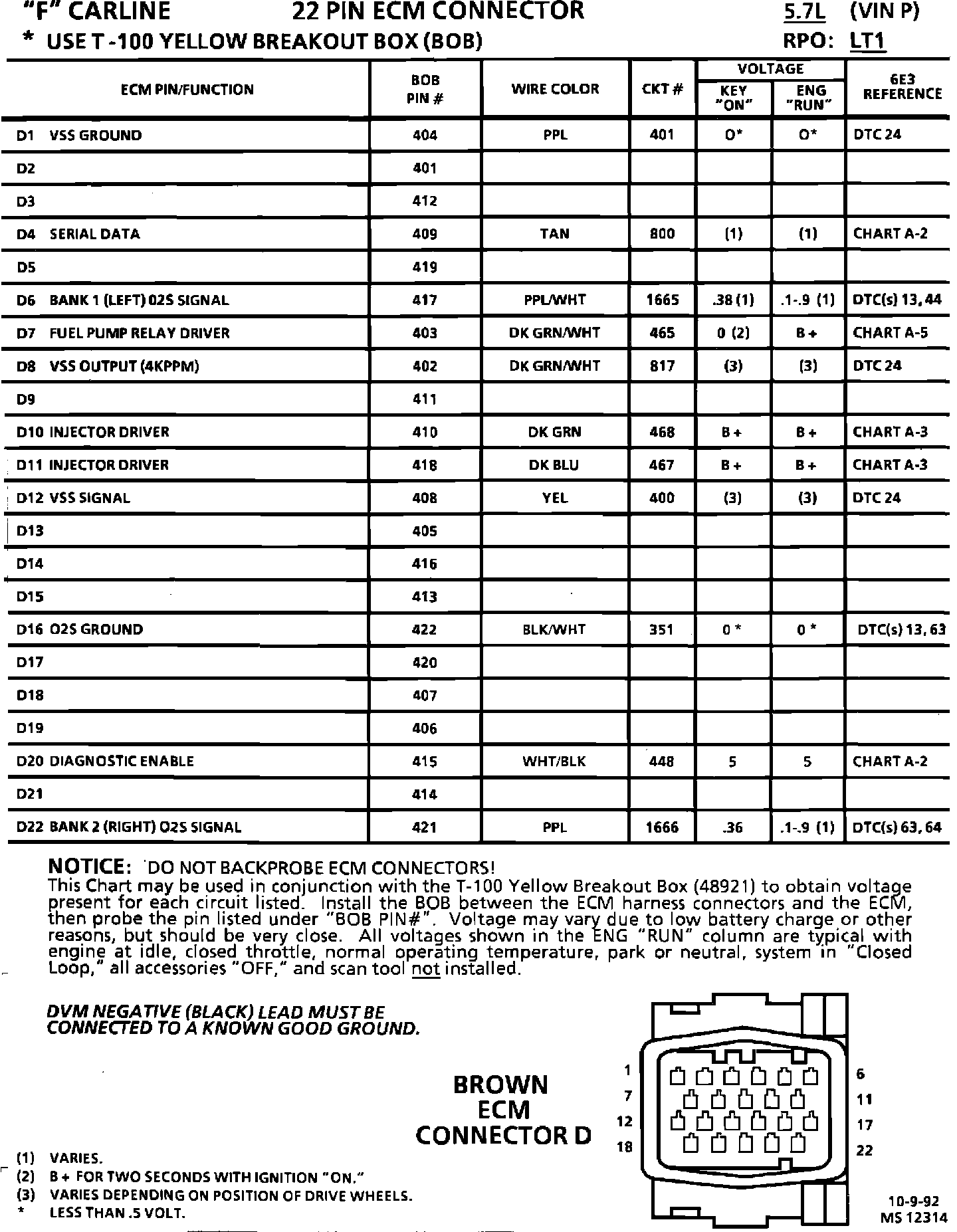

ECM Terminal Voltage Chart:
