Pictorial View

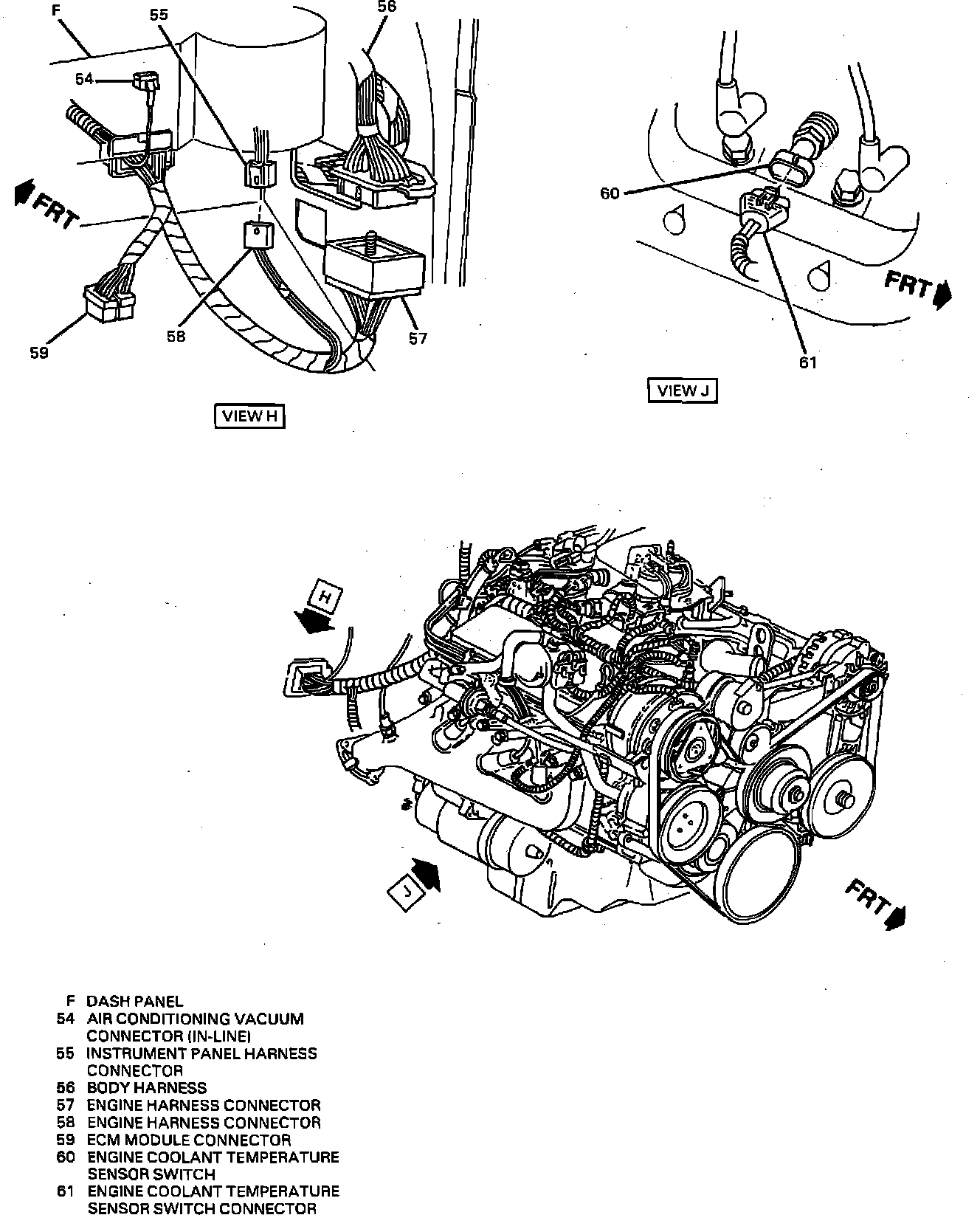

Pictorial View:





F DASH PANEL

54 Air Conditioning Vacuum Connector (in-line)
55 Instrument Panel Harness Connector
56 Body Harness
57 Engine Harness Connector
58 Engine Harness Connector
59 ECM Module Connector
60 Engine Coolant Temperature Sensor Switch
61 Engine Coolant Temperature Sensor Switch Connector
