Connector Identification

Fig 1: Identifying DLC Terminals
G92B04616Courtesy of GENERAL MOTORS CORP.

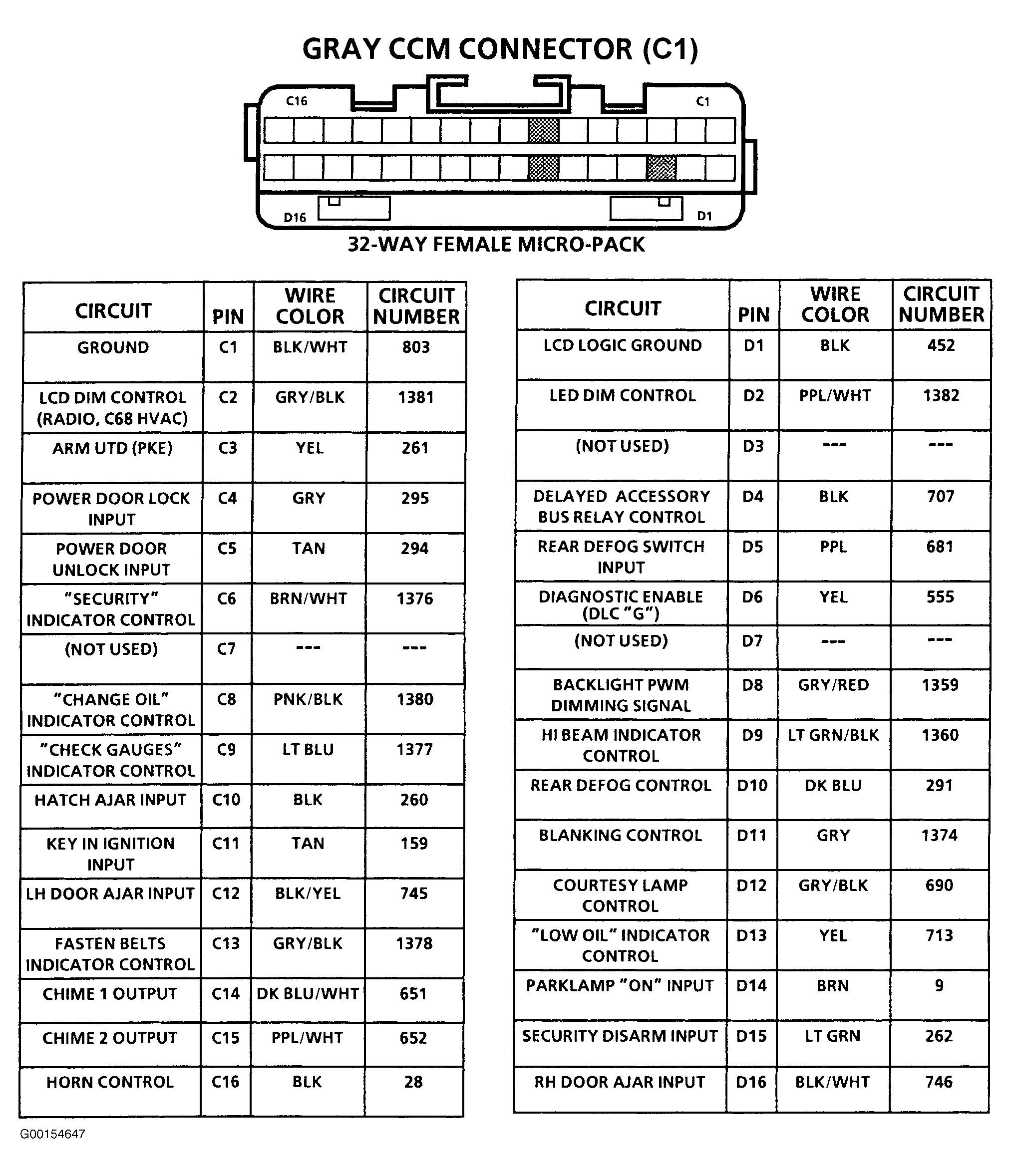

Fig 2: Identifying CCM C1 (Gray) Connector Terminals
G00154647Courtesy of GENERAL MOTORS CORP.

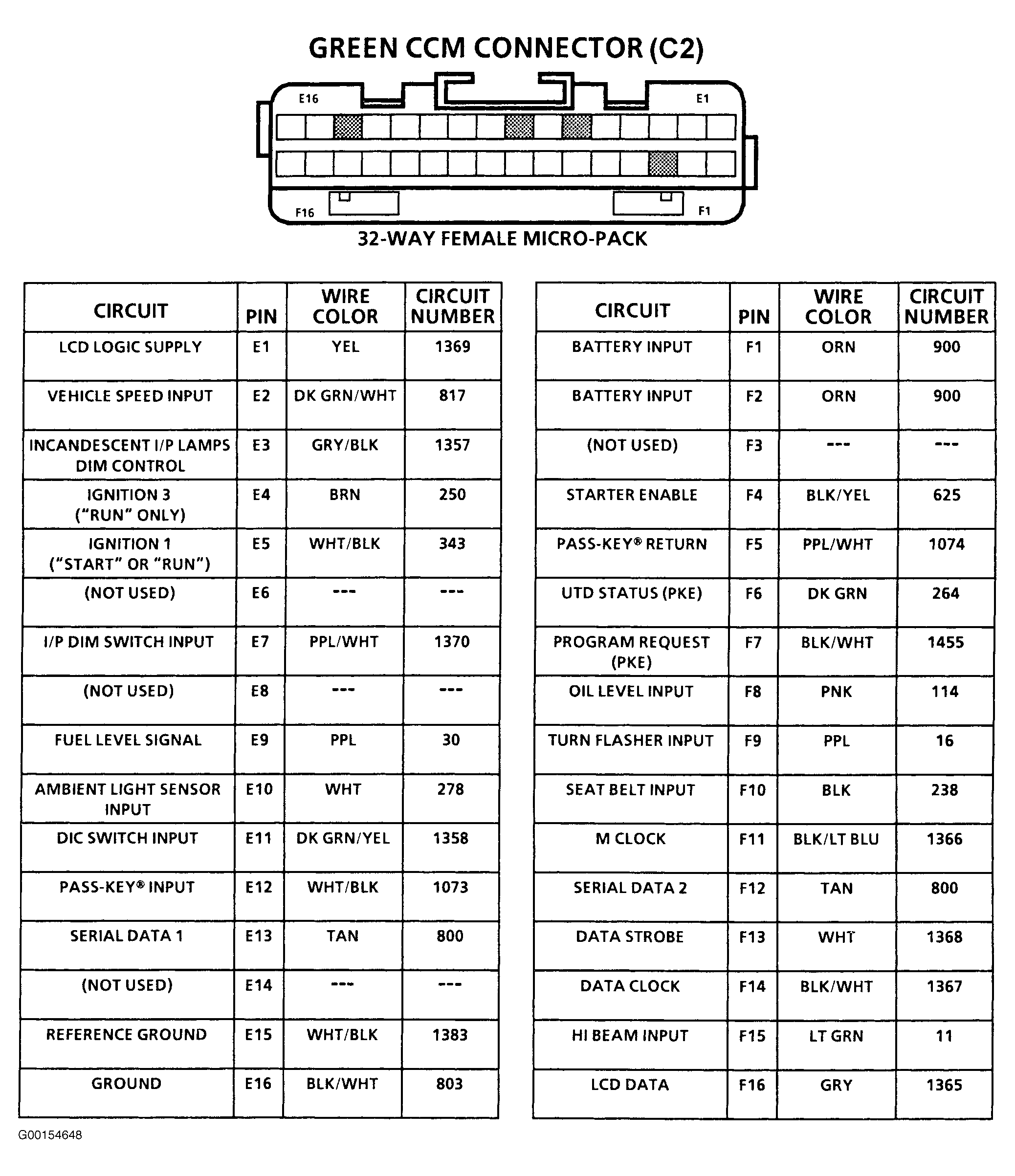

Fig 3: Identifying CCM C2 (Green) Connector Terminals
G00154648Courtesy of GENERAL MOTORS CORP.
