Test A: Central Control Module Appears Completely Inoperative

Refer to flowchart for testing procedure. See Fig 1 .

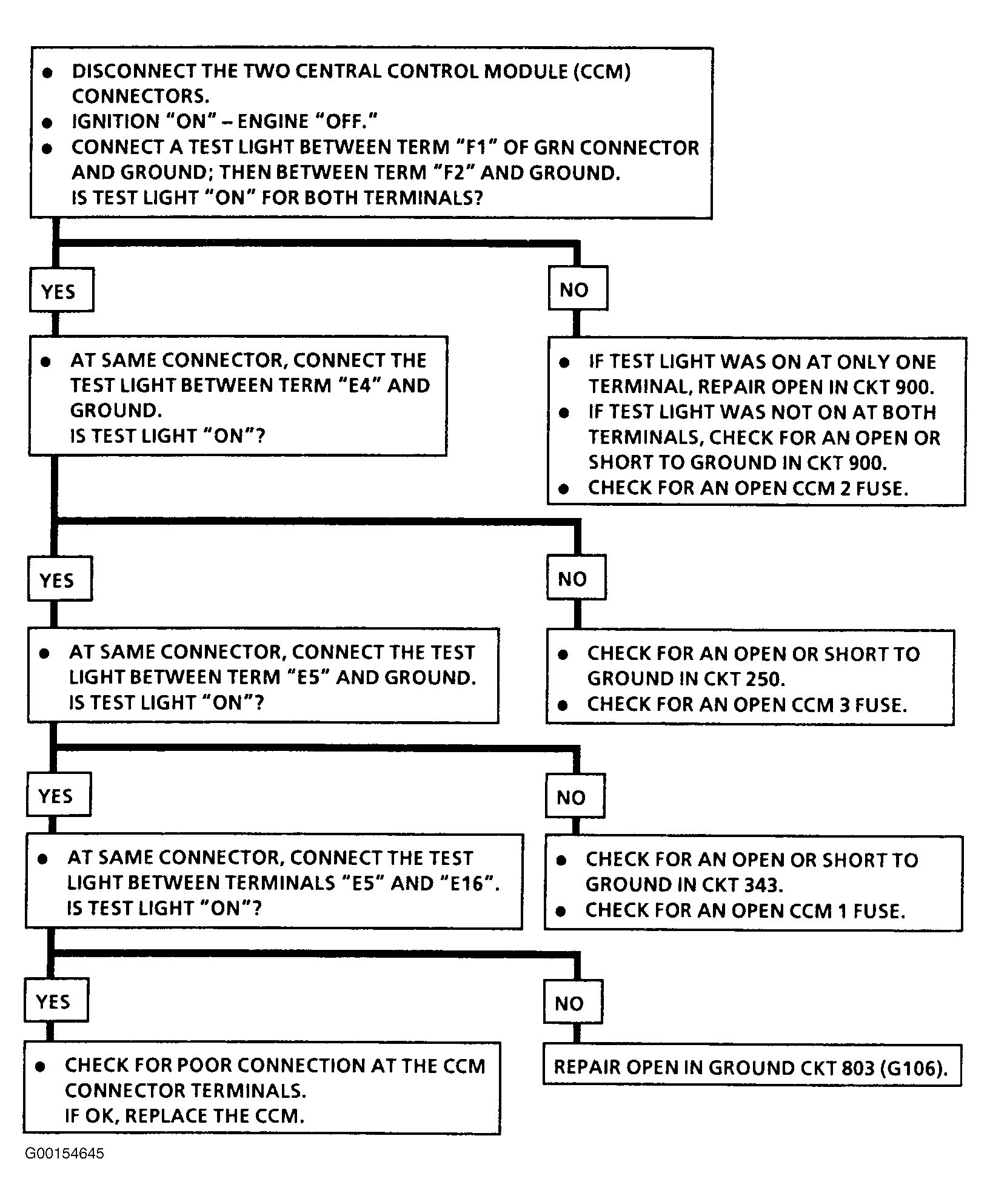

Fig 1: CCM Inoperative Diagnostic Flowchart
G00154645Courtesy of GENERAL MOTORS CORP.
