Cruise Control Servo: Testing and Inspection

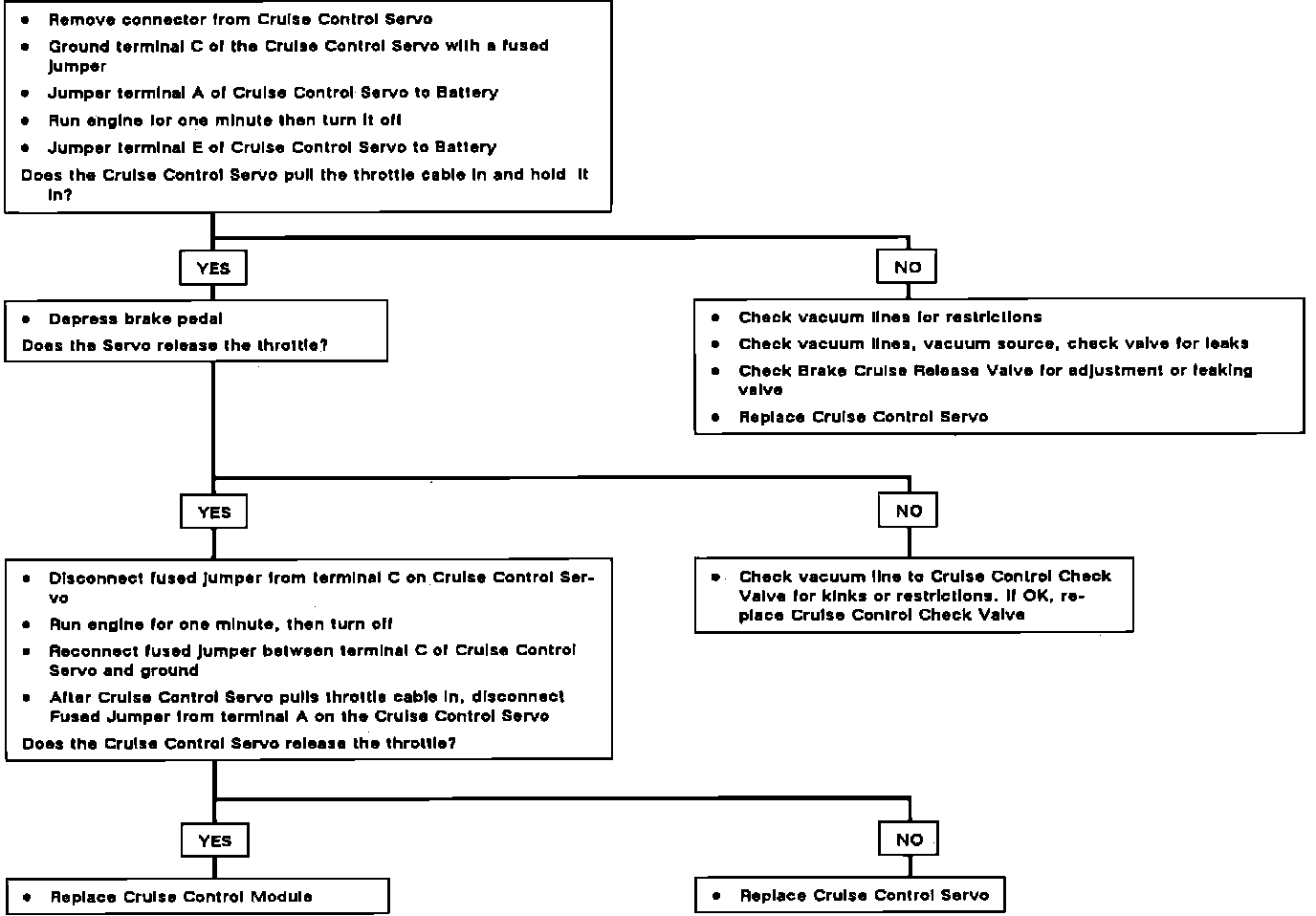

Fig. 45 Cruise Control System Test ``O,'' Servo Actuation Test:
