Component Locations

Fig 1: Component Location For 4.3L (VIN W) "L" & "M" Series
G94E43467Courtesy of GENERAL MOTORS CORP.

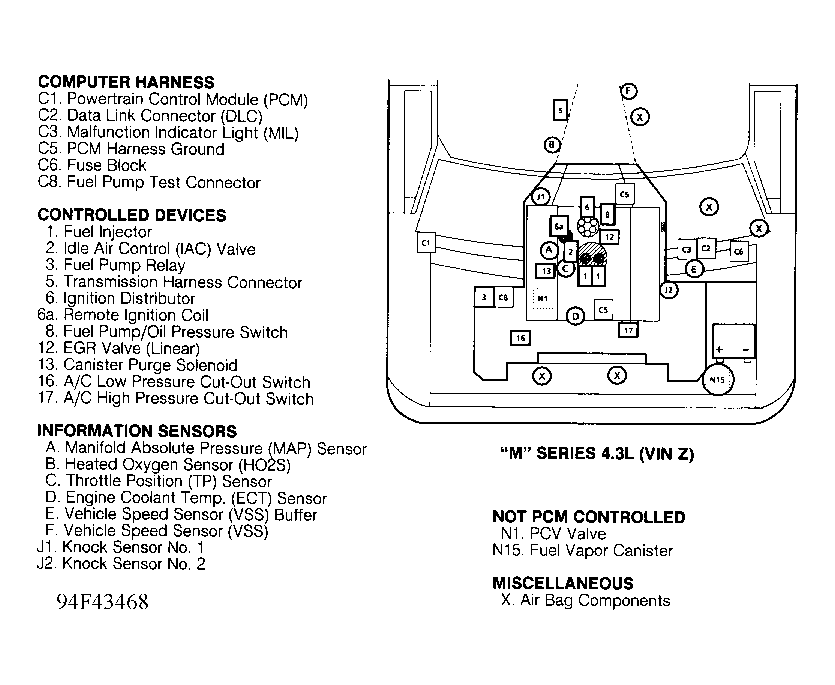

Fig 2: Component Location For 4.3L (VIN Z) "M" Series
G94F43468Courtesy of GENERAL MOTORS CORP.
