Diagnostic Aids

Check all connections at transmission. An open circuit in ignition feed will cause multiple codes.

Fig 1: Code 84 (5.7L M/T) Skip Shift Solenoid - M/T

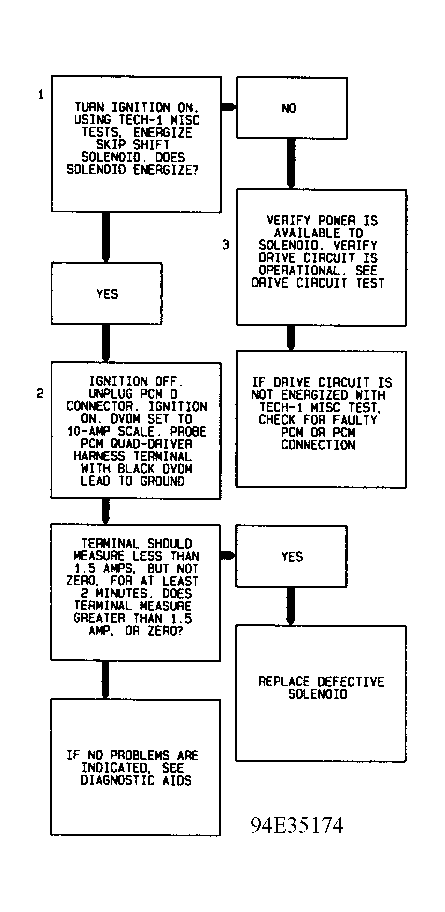

Fig 2: Code 84 Flow Chart (5.7L M/T) Skip Shift Solenoid - M/T
