Cruise Control Switch Assembly

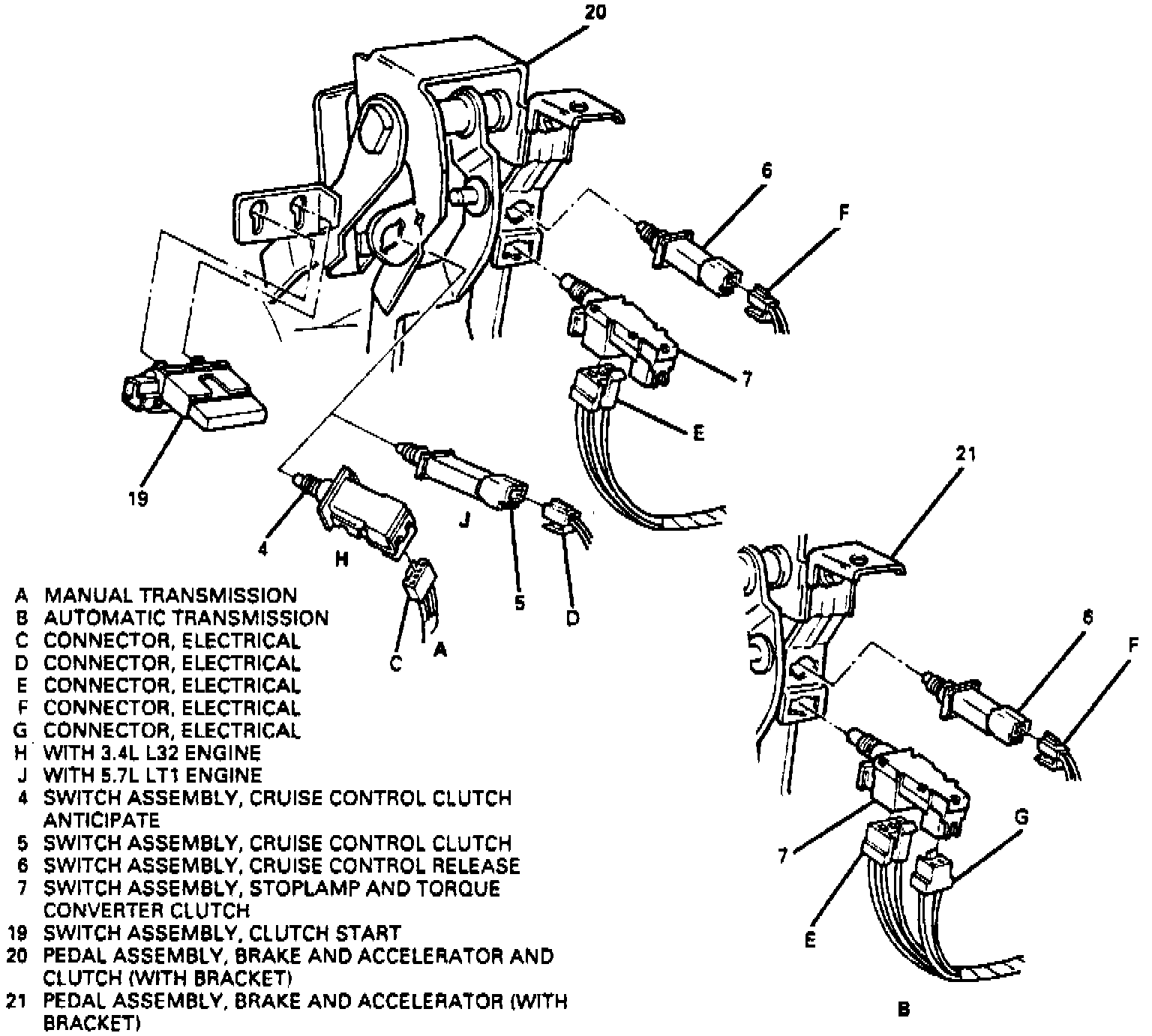

Fig. 2 Exploded View Of Cruise Control Switch Assembly:

1. Remove lefthand instrument panel sound insulator, then disconnect electrical connectors.
2. Remove release switch assembly, stop lamp and TCC switch assembly and clutch switch or clutch anticipate switch, if equipped from pedal with bracket, Fig. 2.
3. Reverse procedure to install.
