Engine Control Module
>>
Specifications
>>
Electrical Specifications
>>
Connector B (Black)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

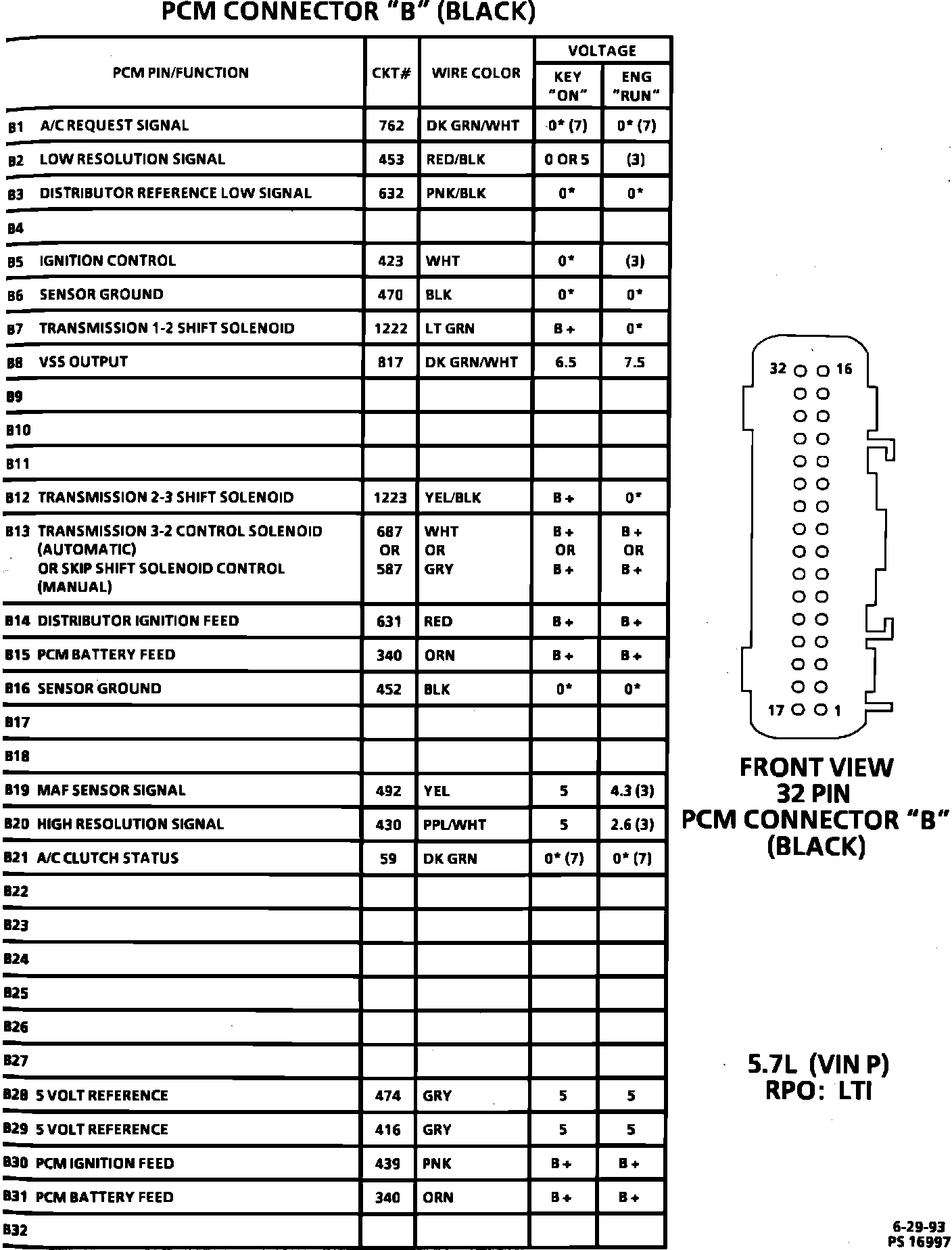

Connector B (Black)
PCM Terminal Voltage:
