Ignition Control Module: Locations

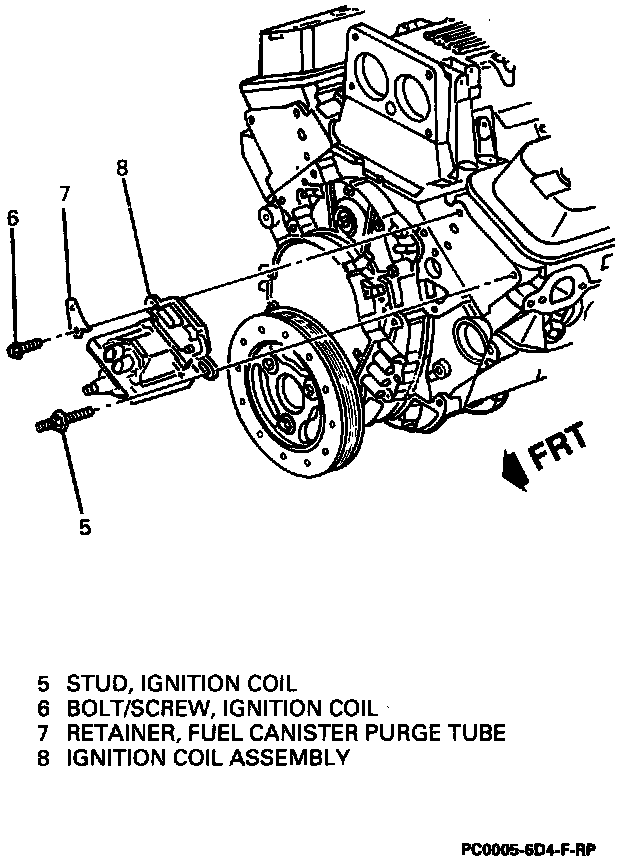

Ignition Coil And Module Assembly:

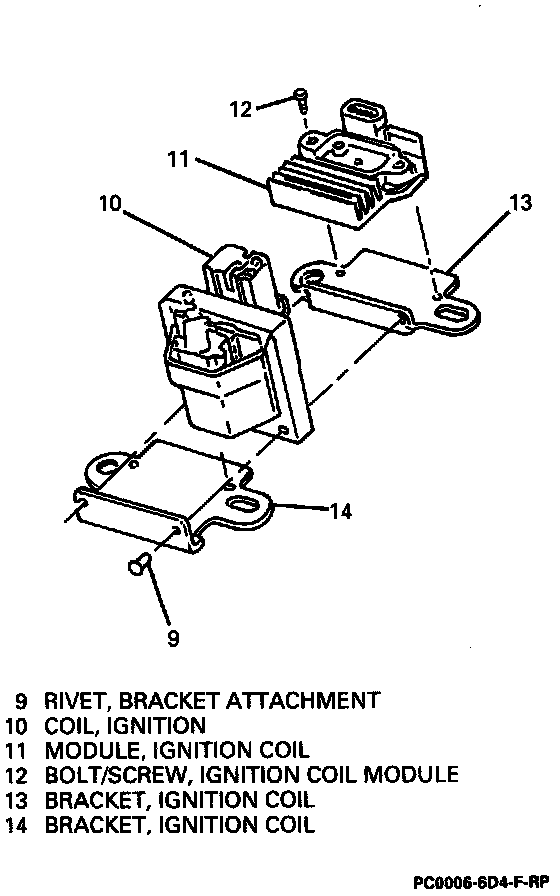

Ignition Coil And Module:







The ignition coil module is located on the front of the left cylinder head.
