Diagnostic Aids

Check vacuum lines for proper routing.

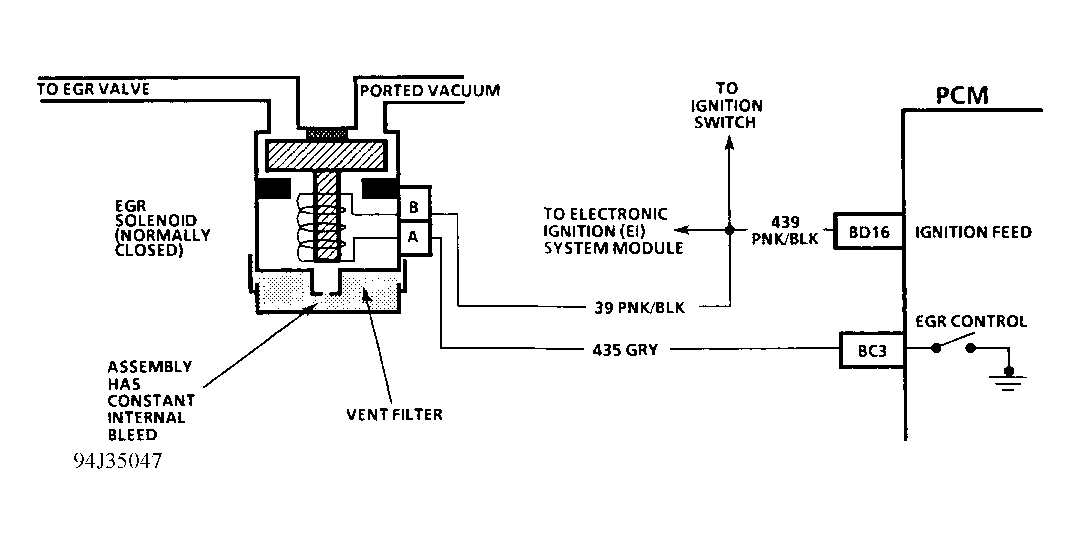

Fig 1: Code 32 Schematic (Cavalier) EGR System Error
G94J35047
Fig 2: Code 32 Flow Chart (Cavalier) EGR System Error
G94B35049

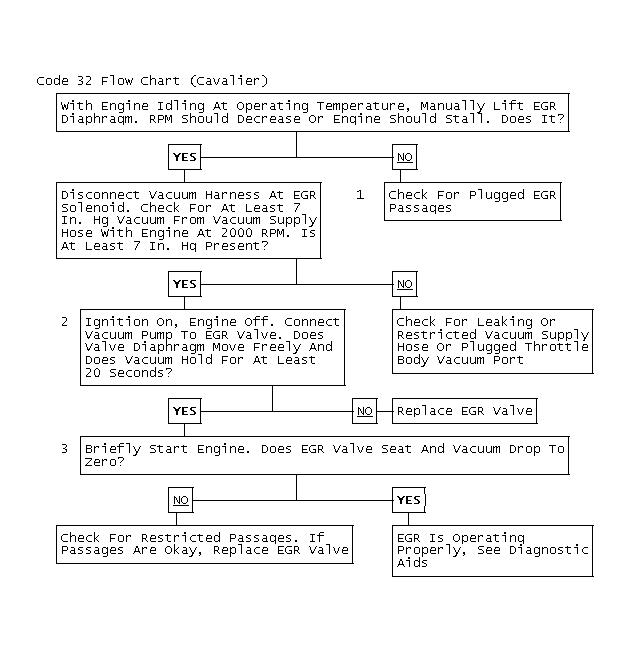

Fig 3: Code 32 Flow Chart (Cavalier)
GB0013461
