Diagnostic Aids

A plugged fuel filter or restricted fuel line can prevent adequate fuel from being supplied during power enrichment. Vapor lock can also cause Code 55.

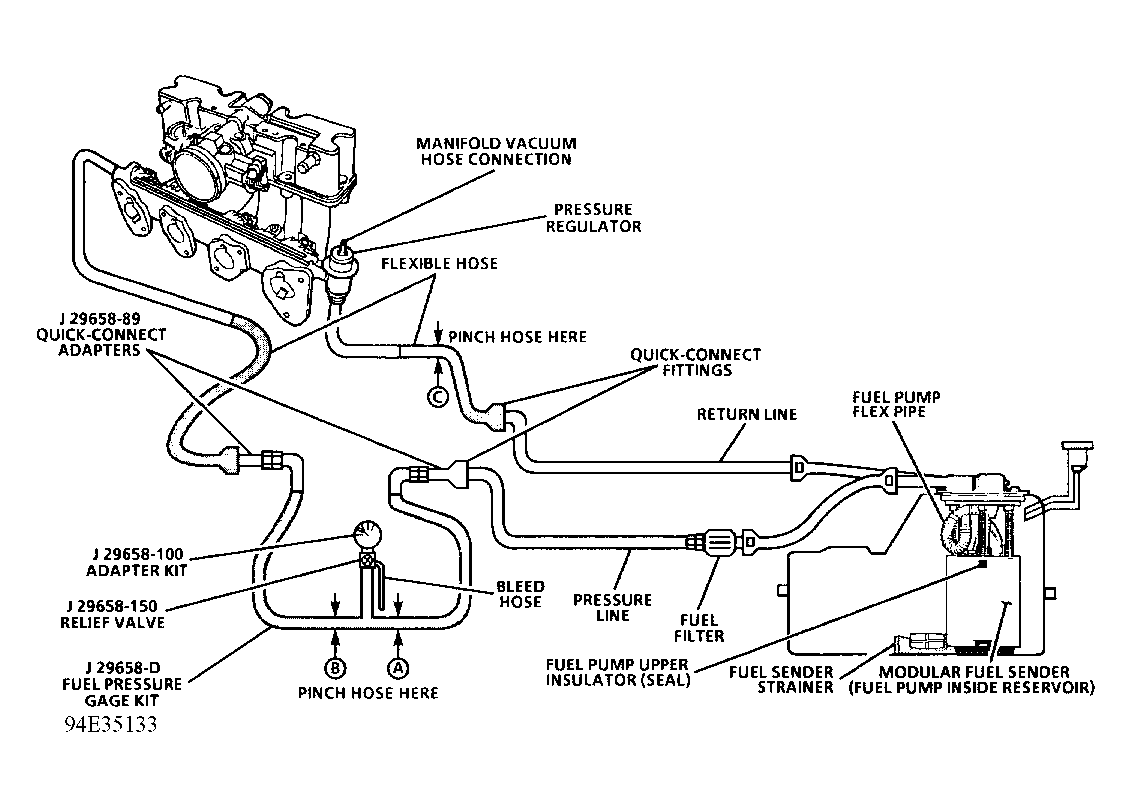

Fig 1: Code 55 Schematic (Cavalier) Fuel Lean Monitor

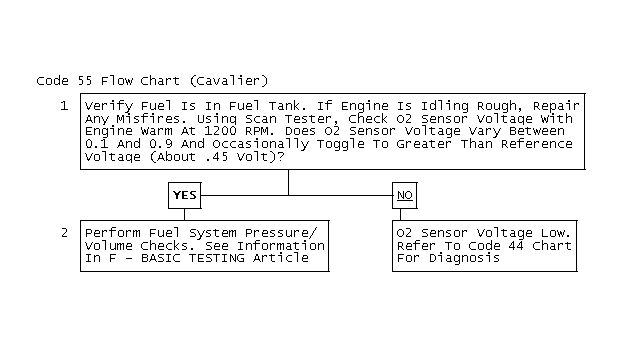

Fig 2: Code 55 Flow Chart (Cavalier) Fuel Lean Monitor

Fig 3: Code 55 Flow Chart (Cavalier)
