Pinout Description

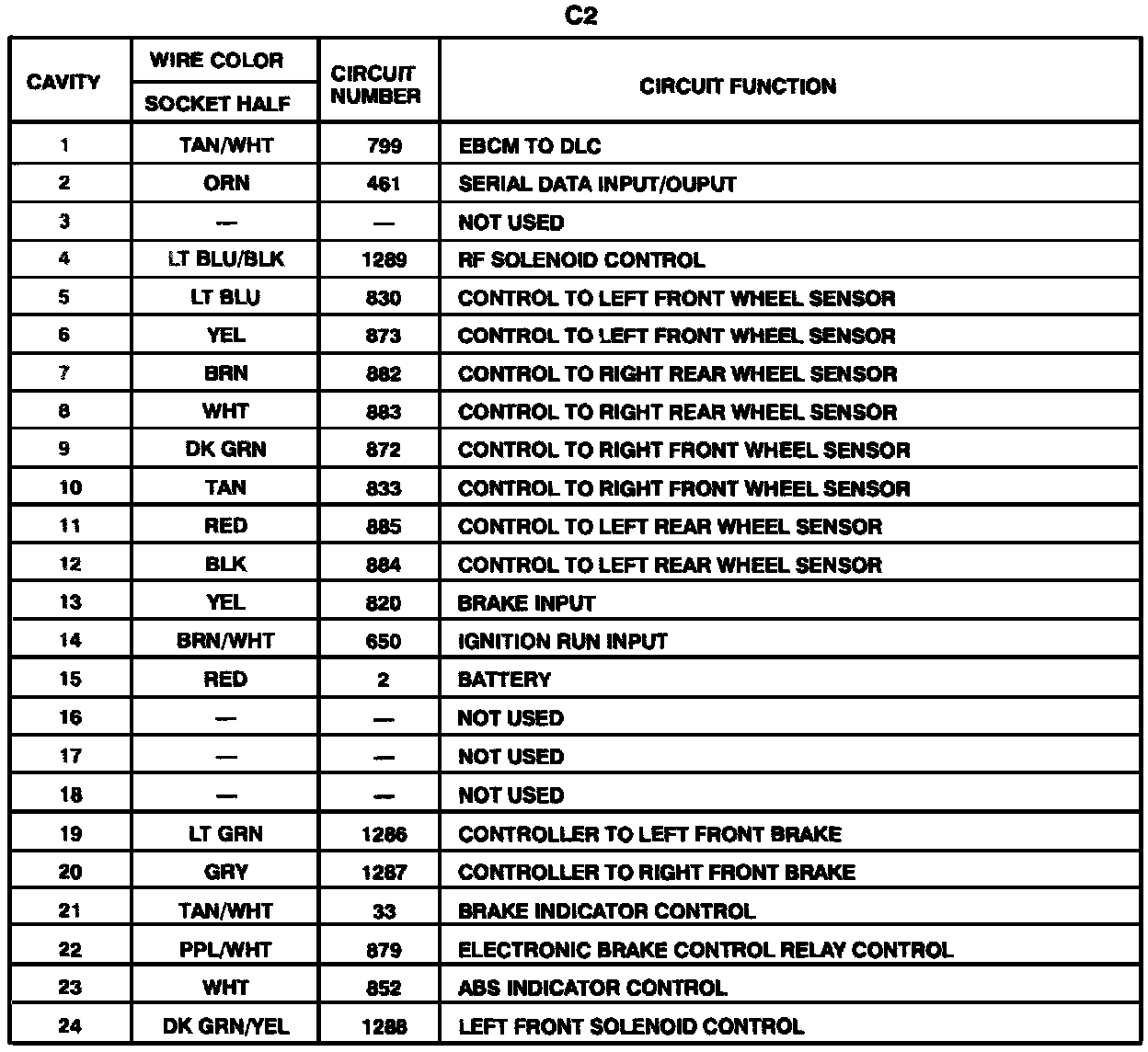

Harness Connector Faces: Electronic Brake Control Module (EBCM)- C2 (Description):
