Heated Glass Control Module

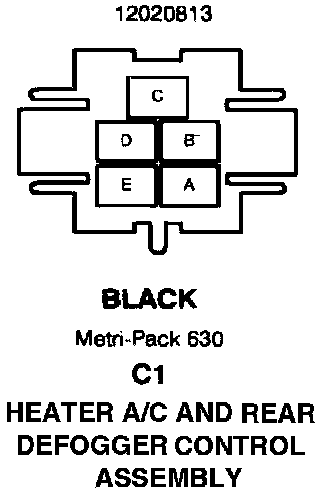

Harness Connector Faces: Heater-A/C And Rear Defogger Control Assembly- C1:

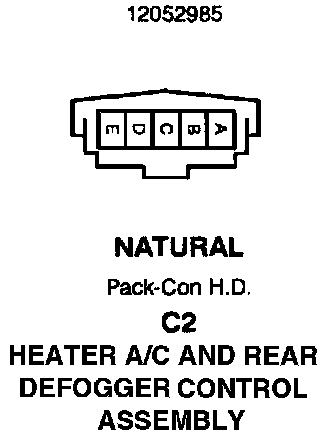

Harness Connector Faces: Heater-A/C And Rear Defogger Control Assembly- C2:

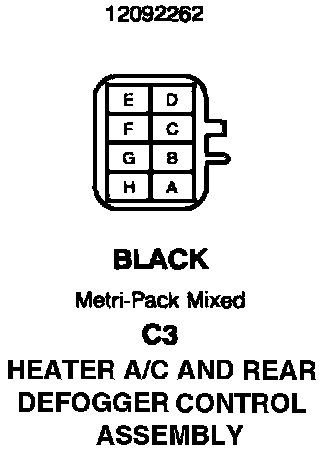

Harness Connector Faces: Heater-A/C And Rear Defogger Control Assembly- C3:

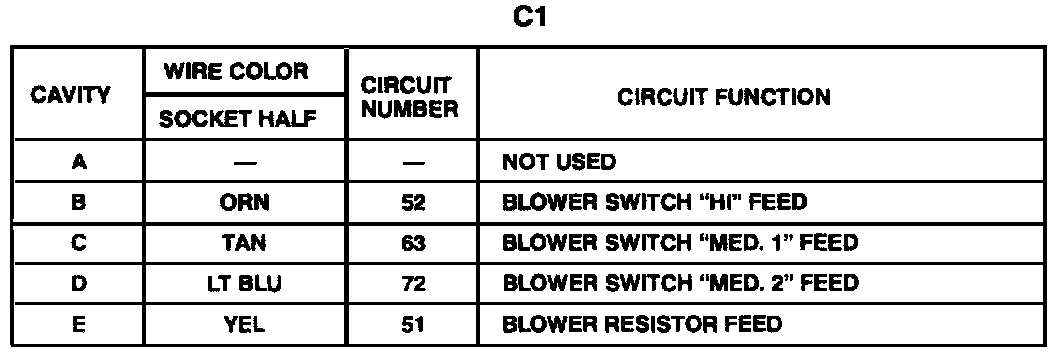

Harness Connector Faces: Heater-A/C And Rear Defogger Control Assembly- C1 (Description):

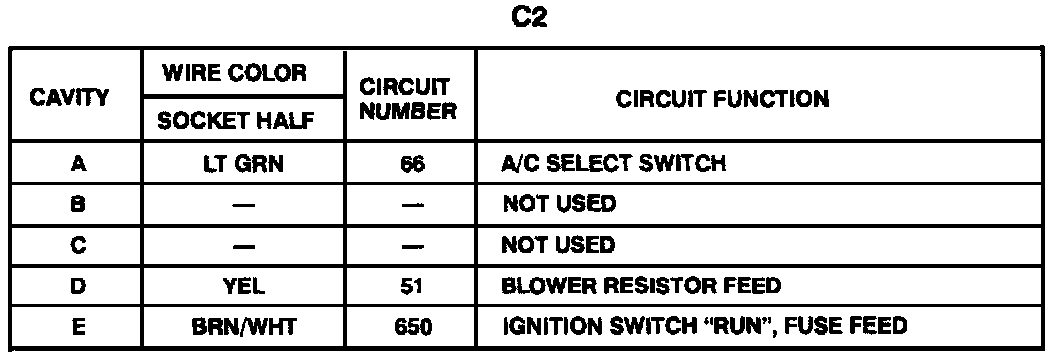

Harness Connector Faces: Heater-A/C And Rear Defogger Control Assembly- C2 (Description):

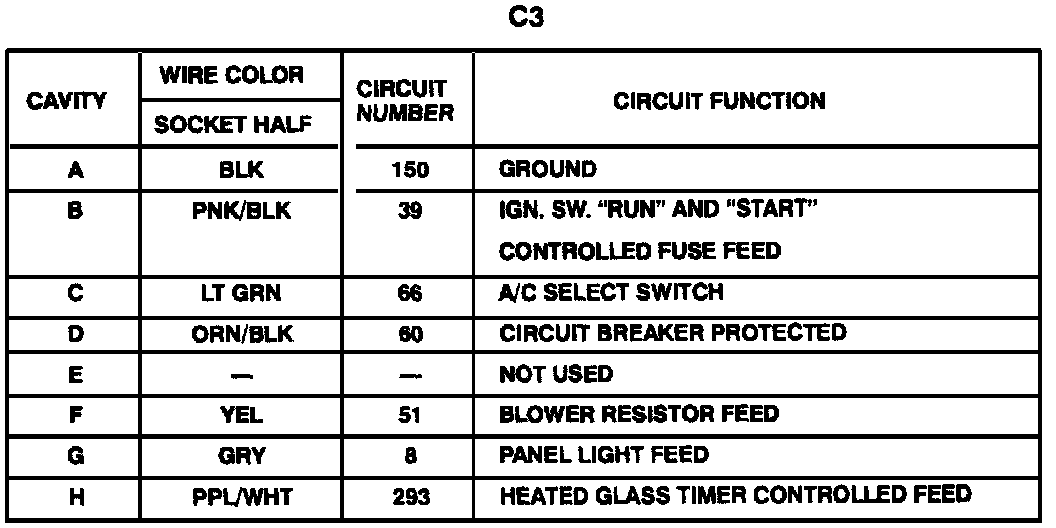

Harness Connector Faces: Heater-A/C And Rear Defogger Control Assembly- C3 (Description):
