Electronic/Powertrain Control Module (ECM/PCM)

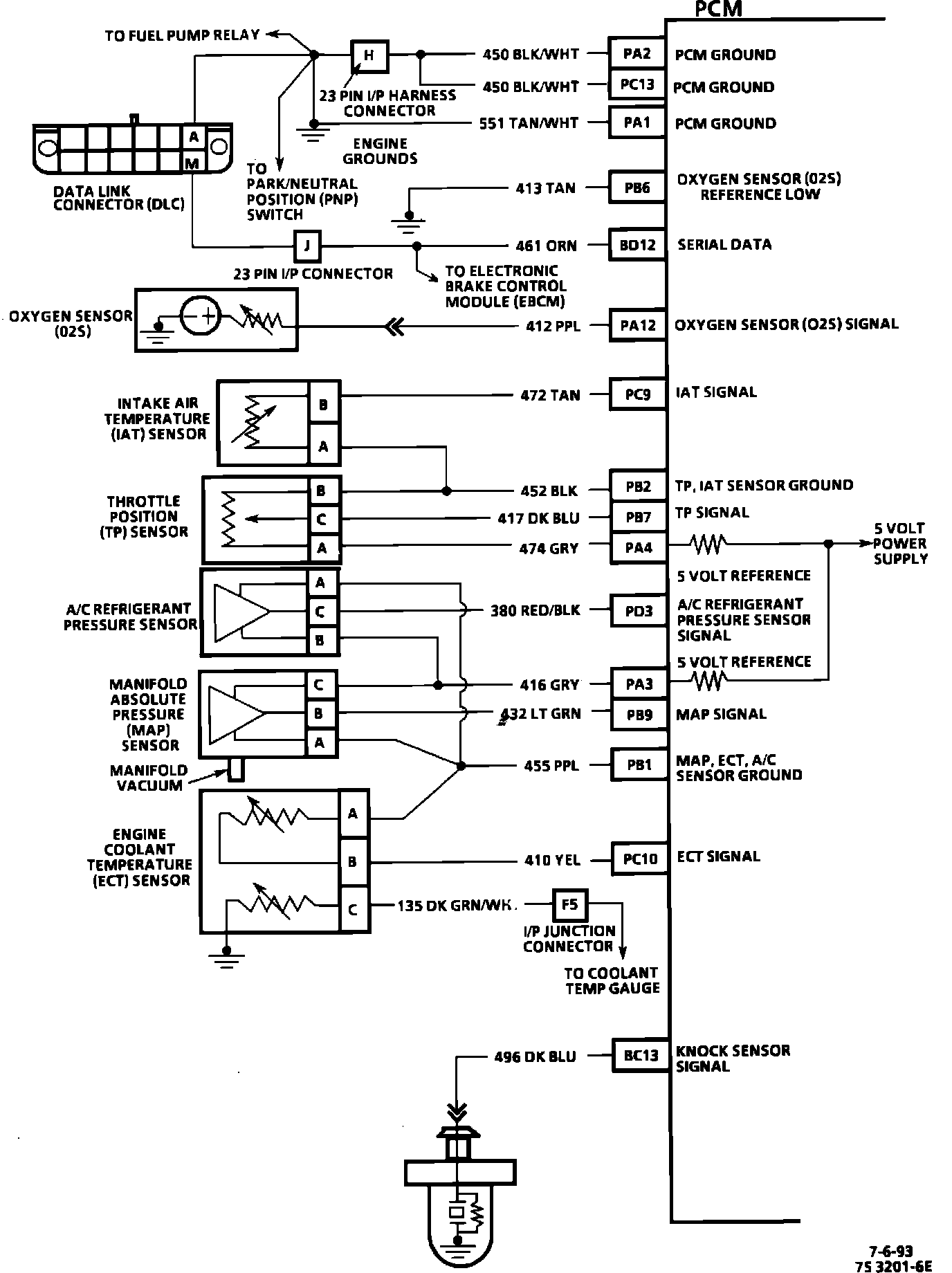

PCM Wiring Diagram (Part 1 Of 4):

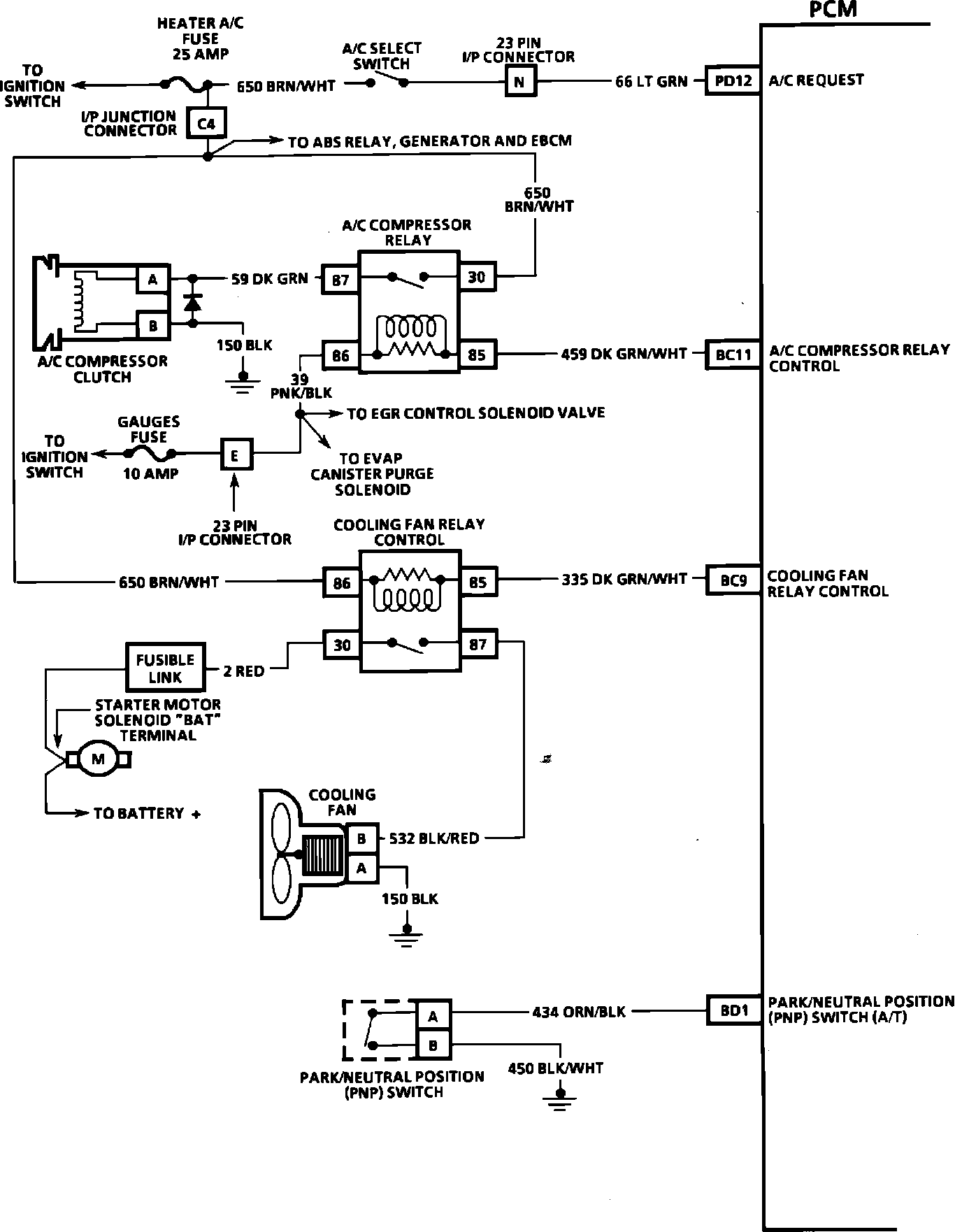

PCM Wiring Diagram (Part 2 Of 4):

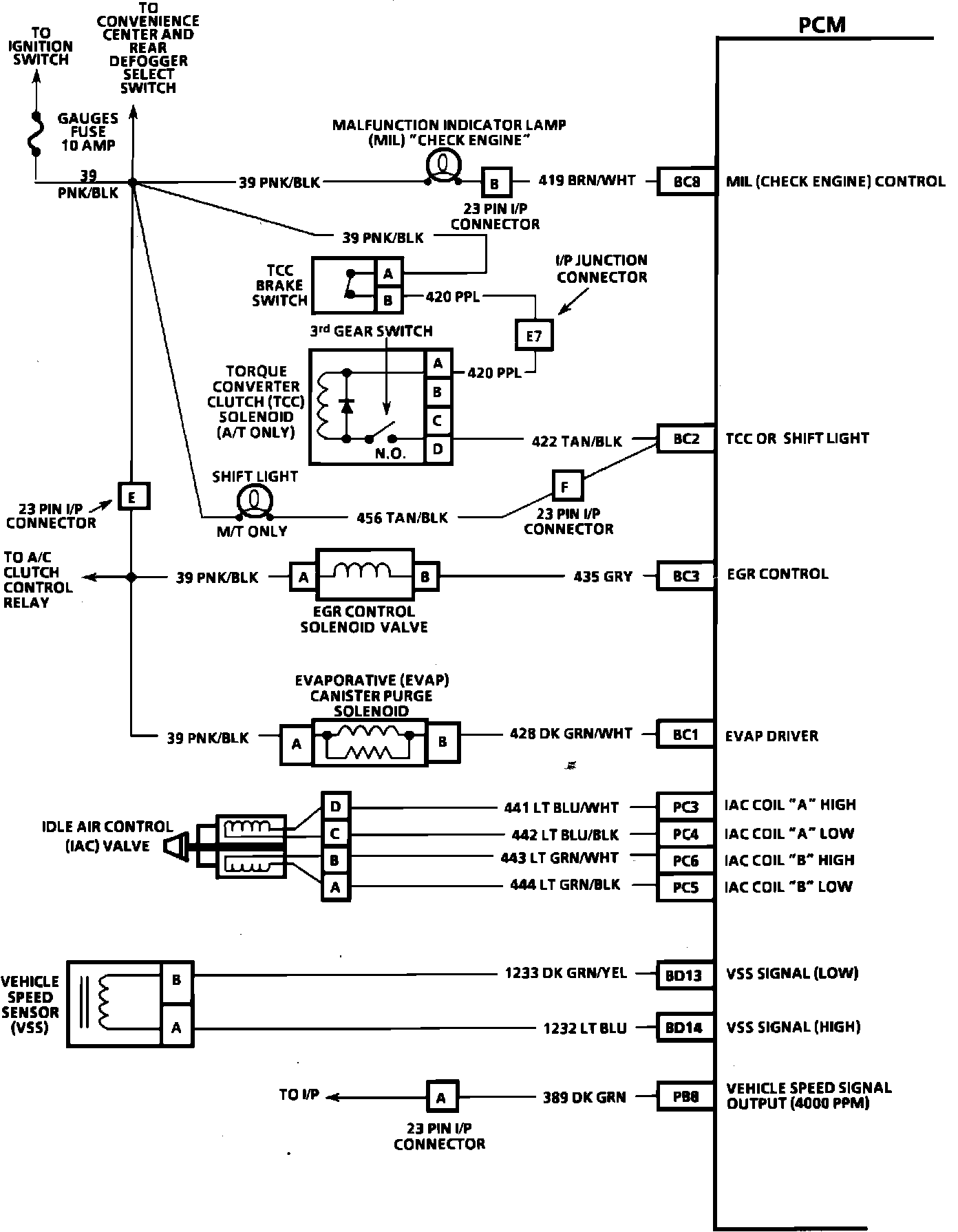

PCM Wiring Diagram (Part 3 Of 4):

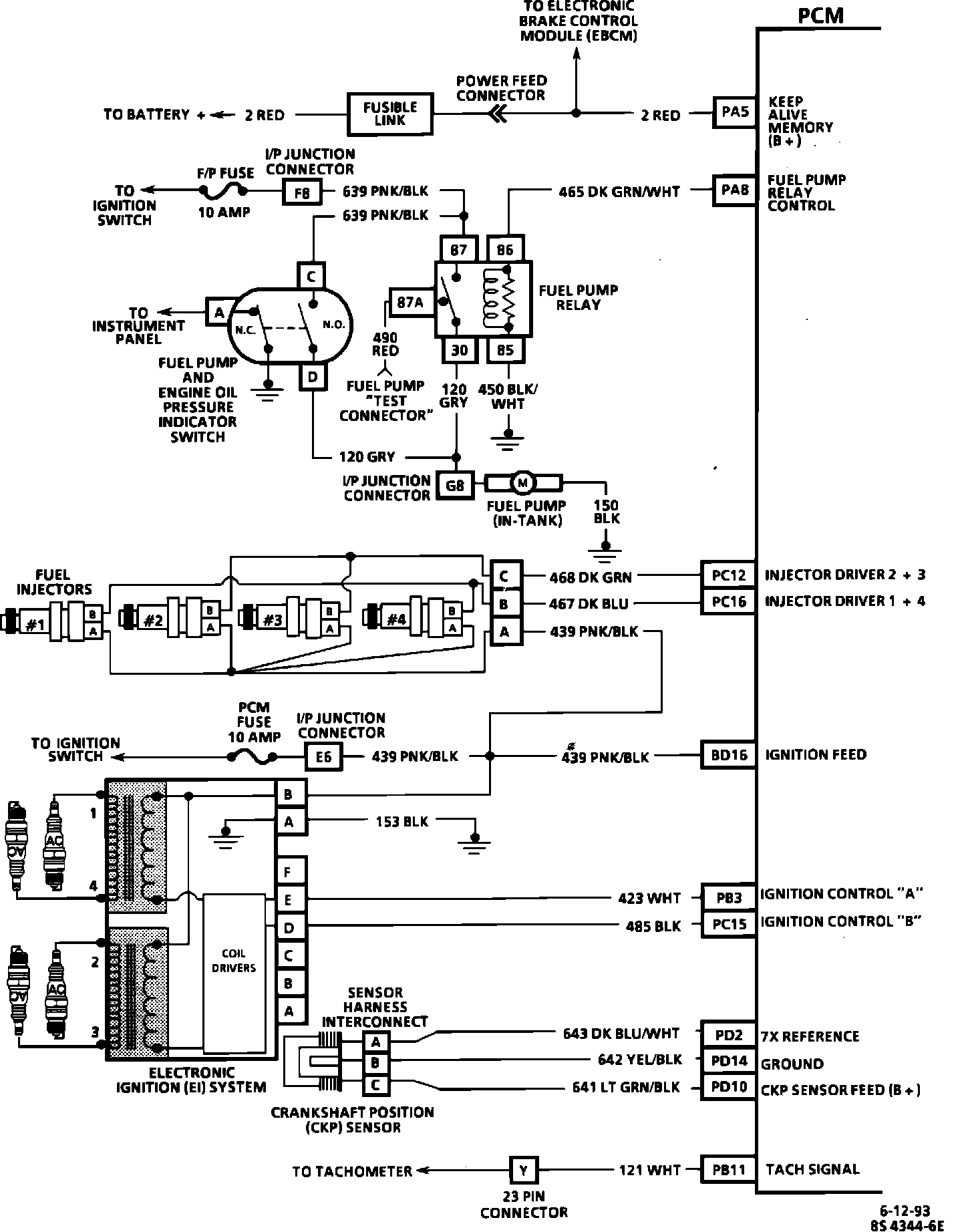

PCM Wiring Diagram (Part 4 Of 4):
