Coolant Temperature Sensor/Switch (For Computer): Locations

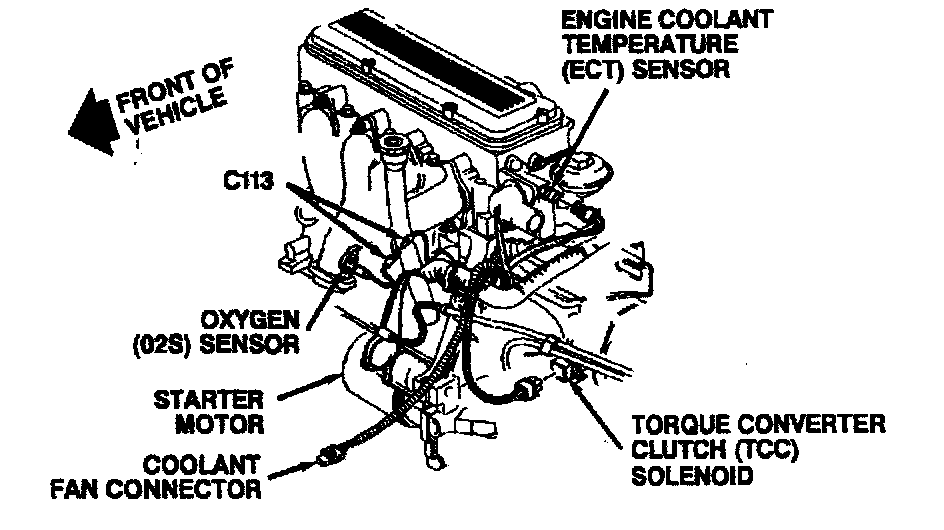

LH Front Of Engine Compartment:





LH front of engine, on Coolant Outlet
