Chart 2B, Bolster Control Does Not Move In &/Or Out

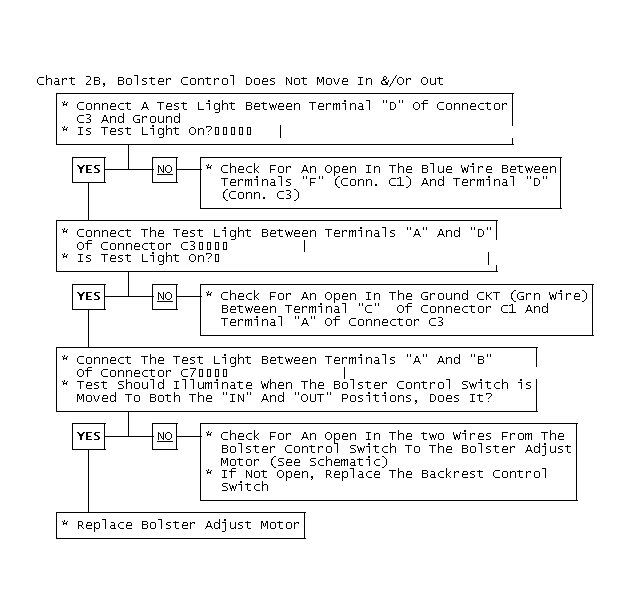

Fig 1: Chart 2B, Bolster Control Does Not Move In &/Or Out
