Engine Control Module

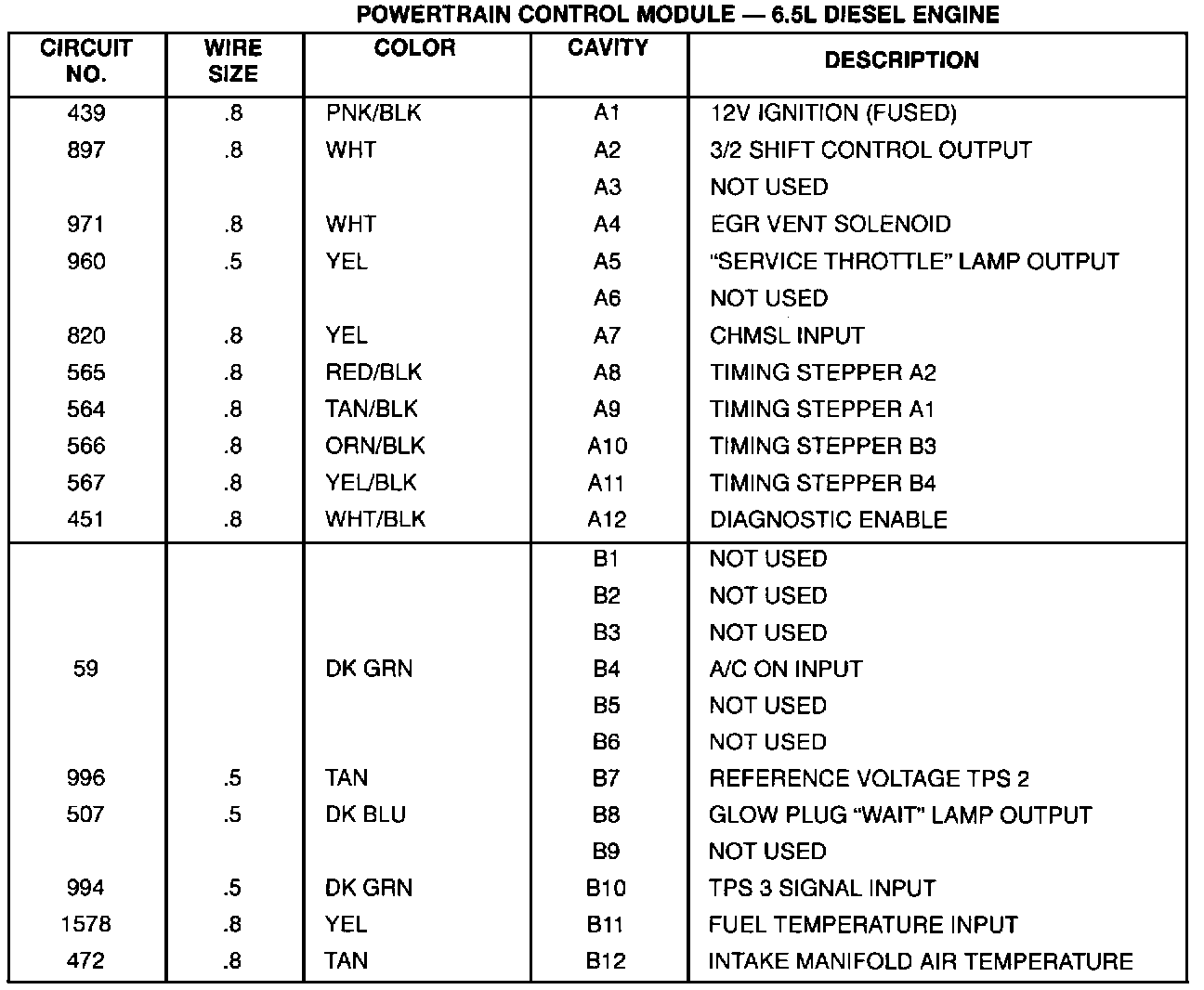

Powertrain Control Module:

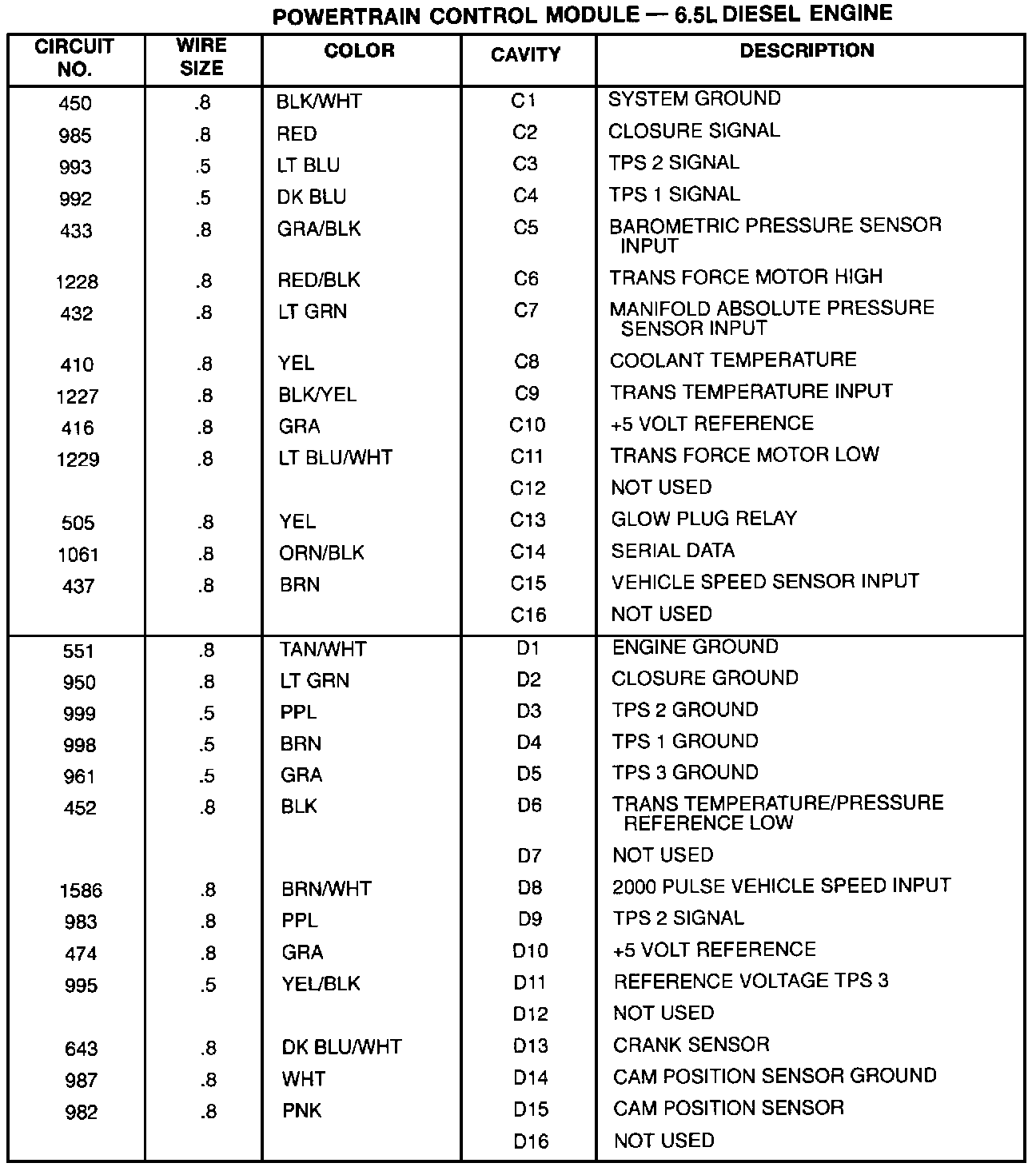

Powertrain Control Module:

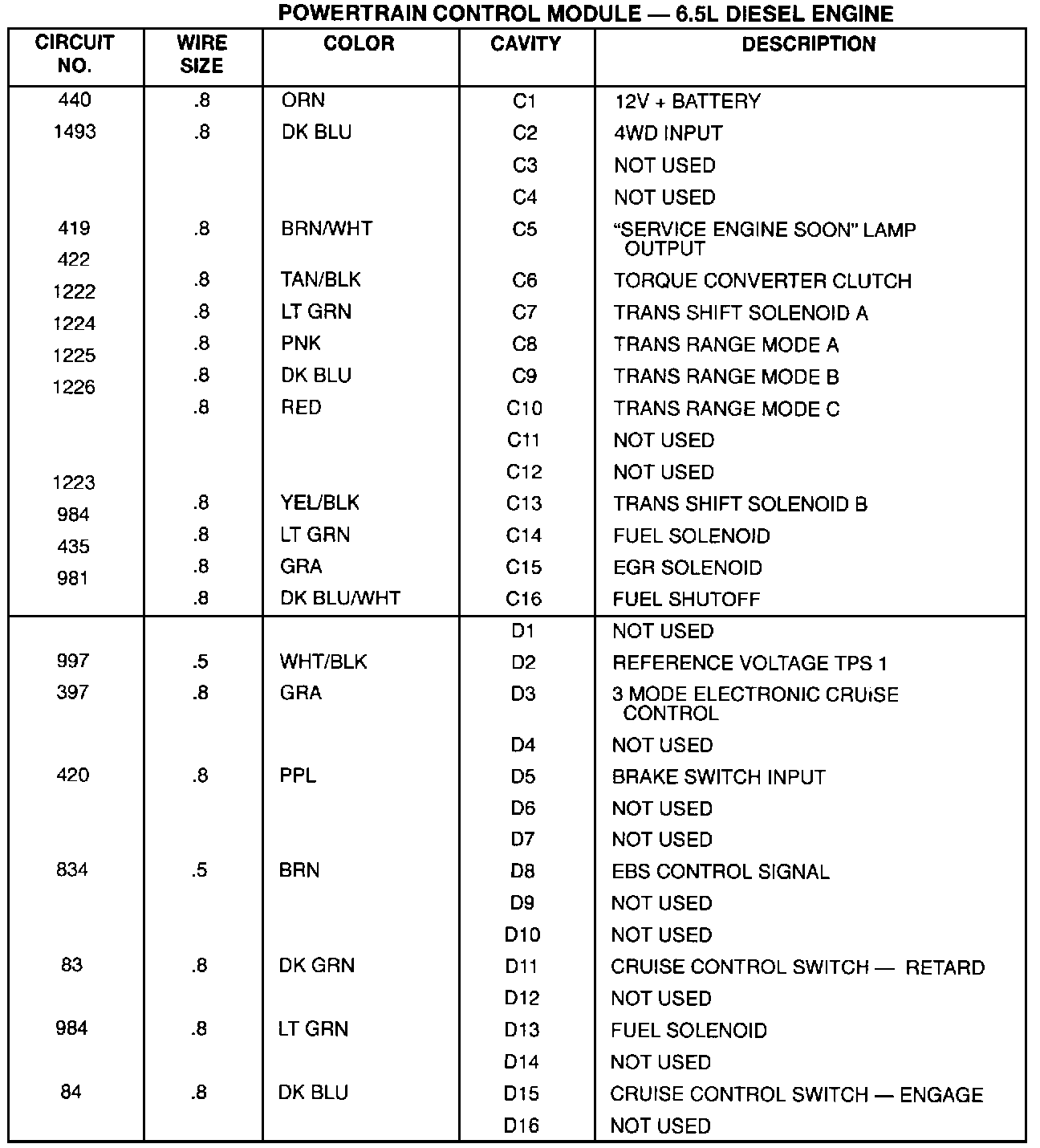

Powertrain Control Module:
