Diagnostic Aids

An intermittent may be caused by a poor connection, rubbed through wire insulation, or a broken wire inside insulation. Check for:

• Poor Connection Or Damaged Harness:  Inspect PCM harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection, and damaged harness.
• Intermittent Test:  If connections and harness are okay, monitor a DVOM connected between related PCM terminals and ground while moving related connectors and wiring harness. If failure is induced, voltage reading will change. This may assist in isolating malfunction.

Fig 1: Code P0342 Schematic (3.4L) CAM Sensor Error

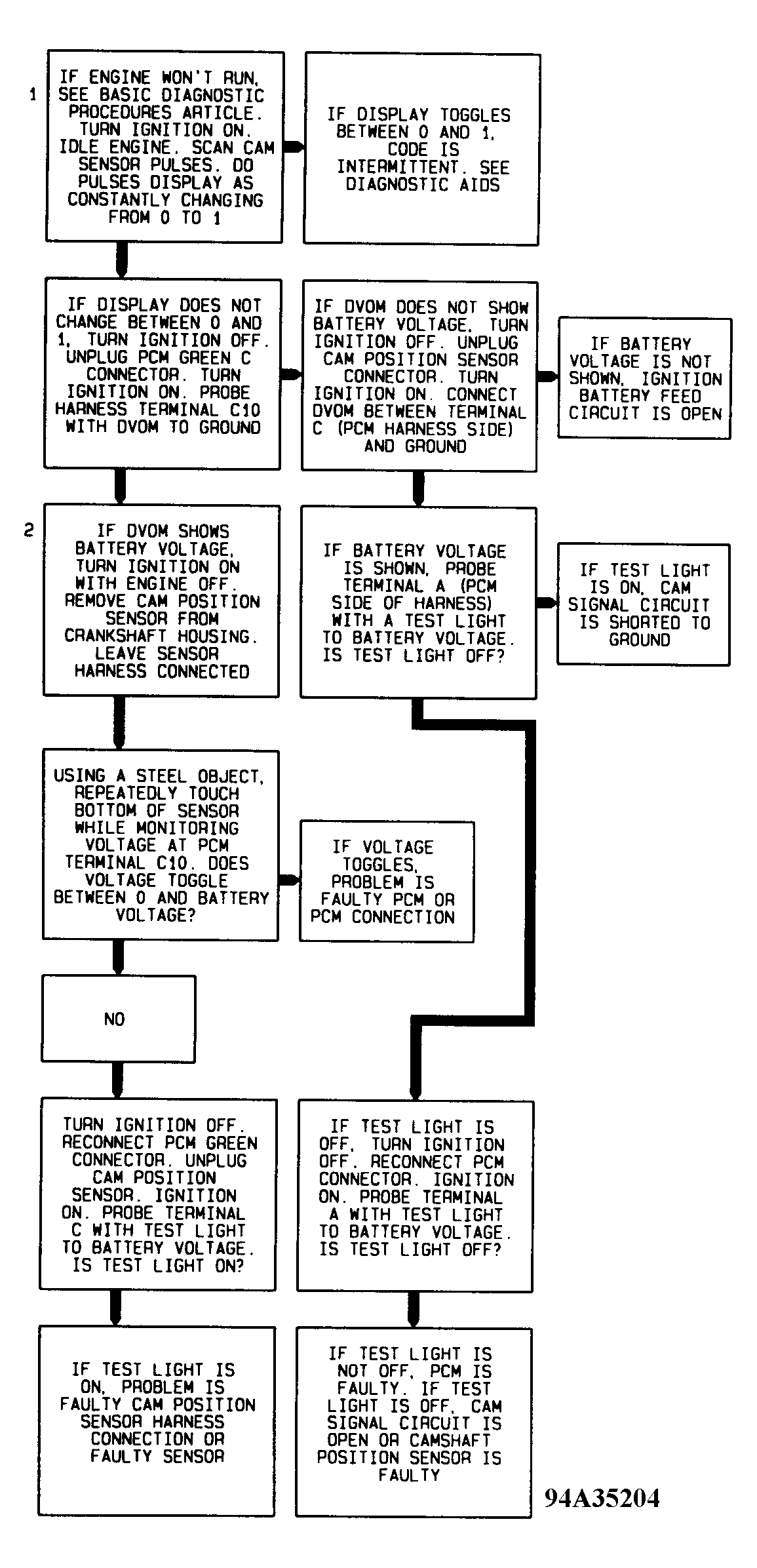

Fig 2: Code P0342 Flow Chart (3.4L) CAM Sensor Error

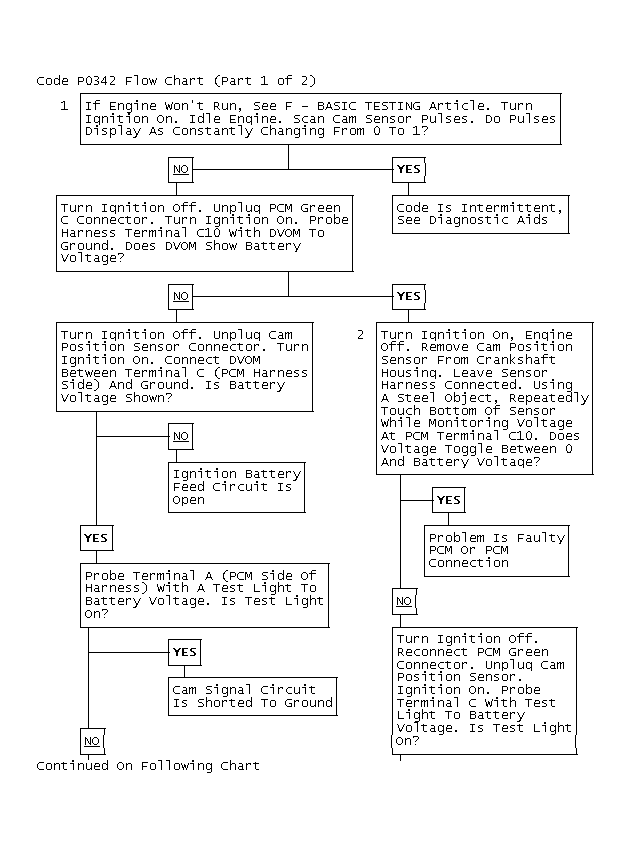

Fig 3: Code P0342 Flow Chart (Part 1 of 2)

Fig 4: Code P0342 Flow Chart (2 of 2)
