Diagnostic Aids

Check for poor connections or damaged harness.

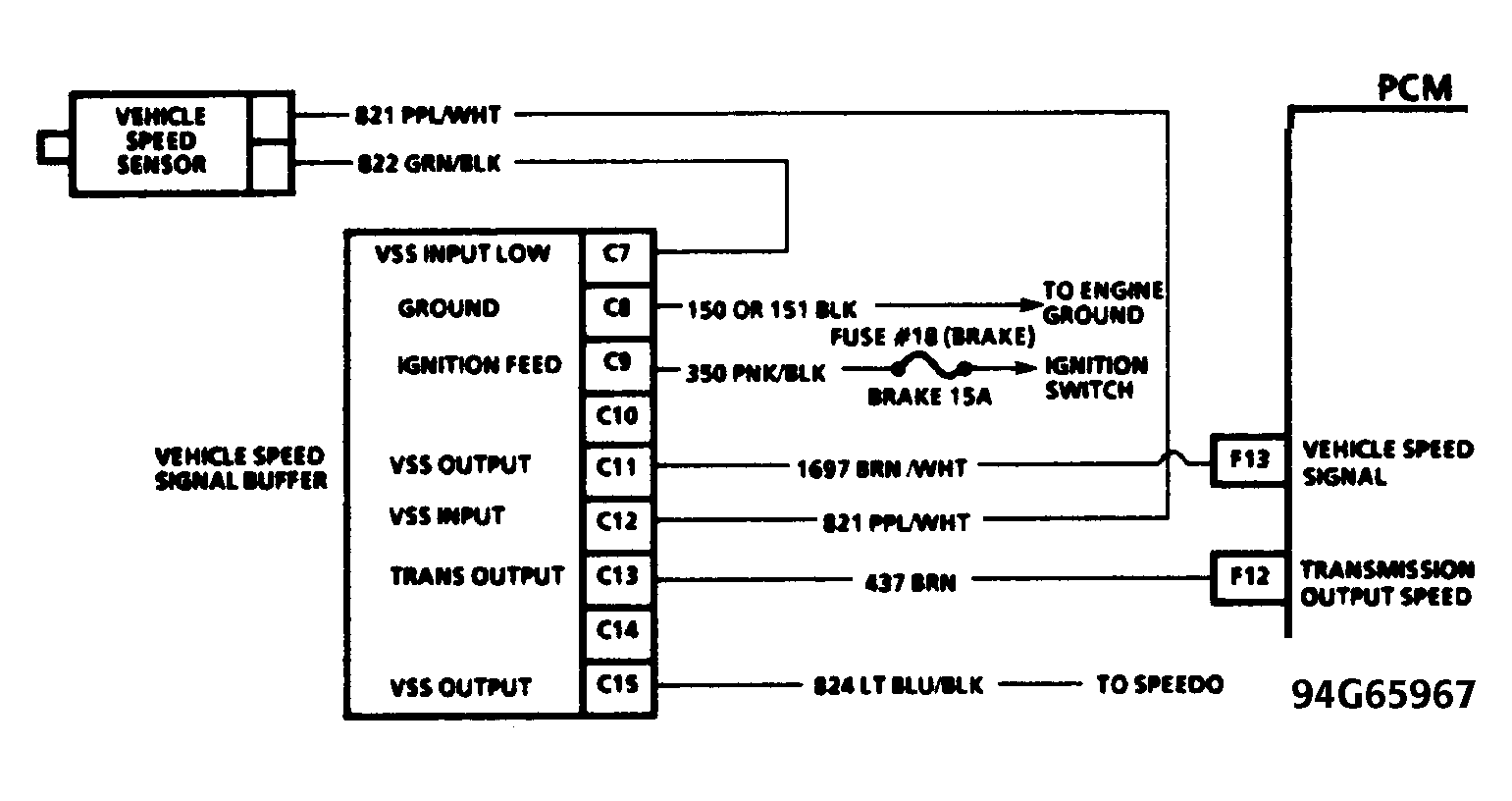

Fig 1: Code 16 Schematic (A/T) VSS Buffer Fault
G94G65967
Fig 2: Code 16 Flow Chart (A/T) VSS Buffer Fault
G93I76354
