Diagnostic Aids

Inspect harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal-to-wire connections or damaged harness.

Perform intermittent check by monitoring circuit and code status while wiggling related wiring and connectors. If failure is induced, monitored circuit status will change rapidly and/or related code will set.

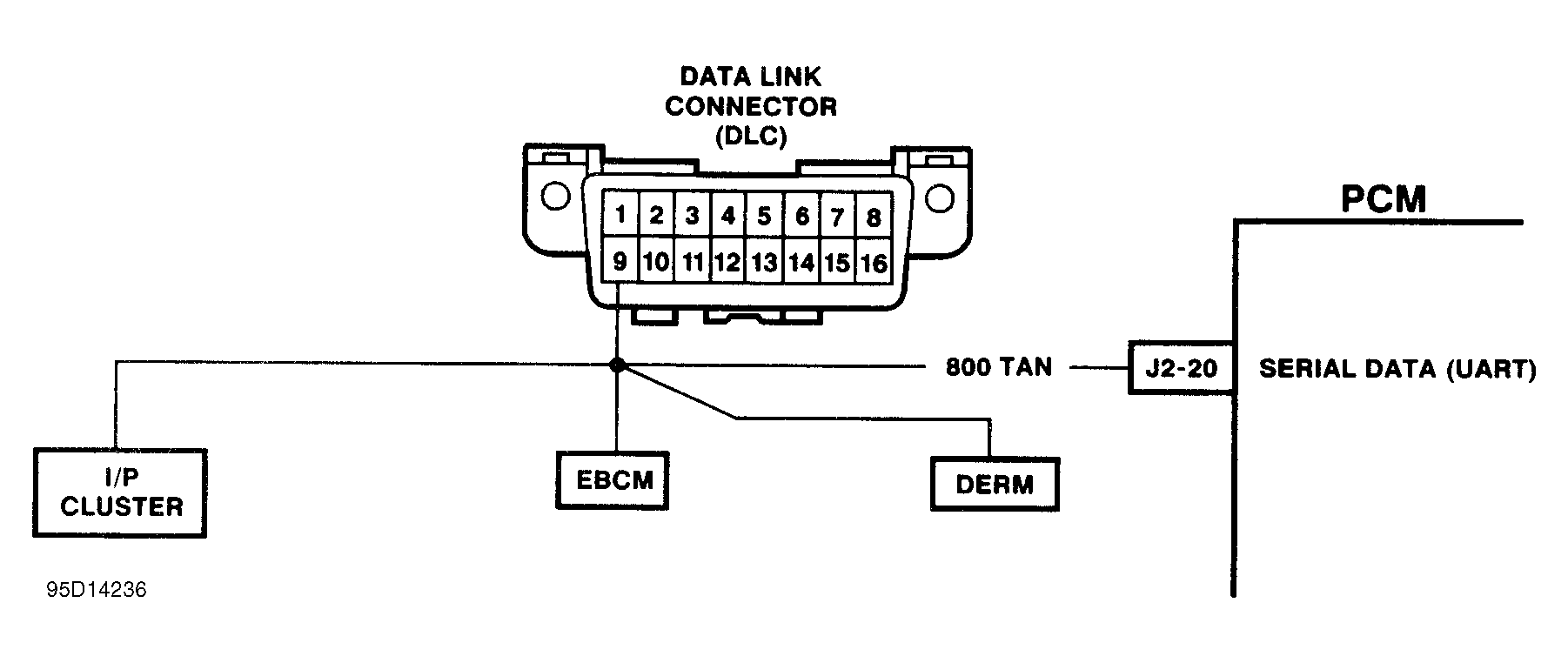

Fig 1: Code 72 Schematic (2.2L) Loss Of Serial Data

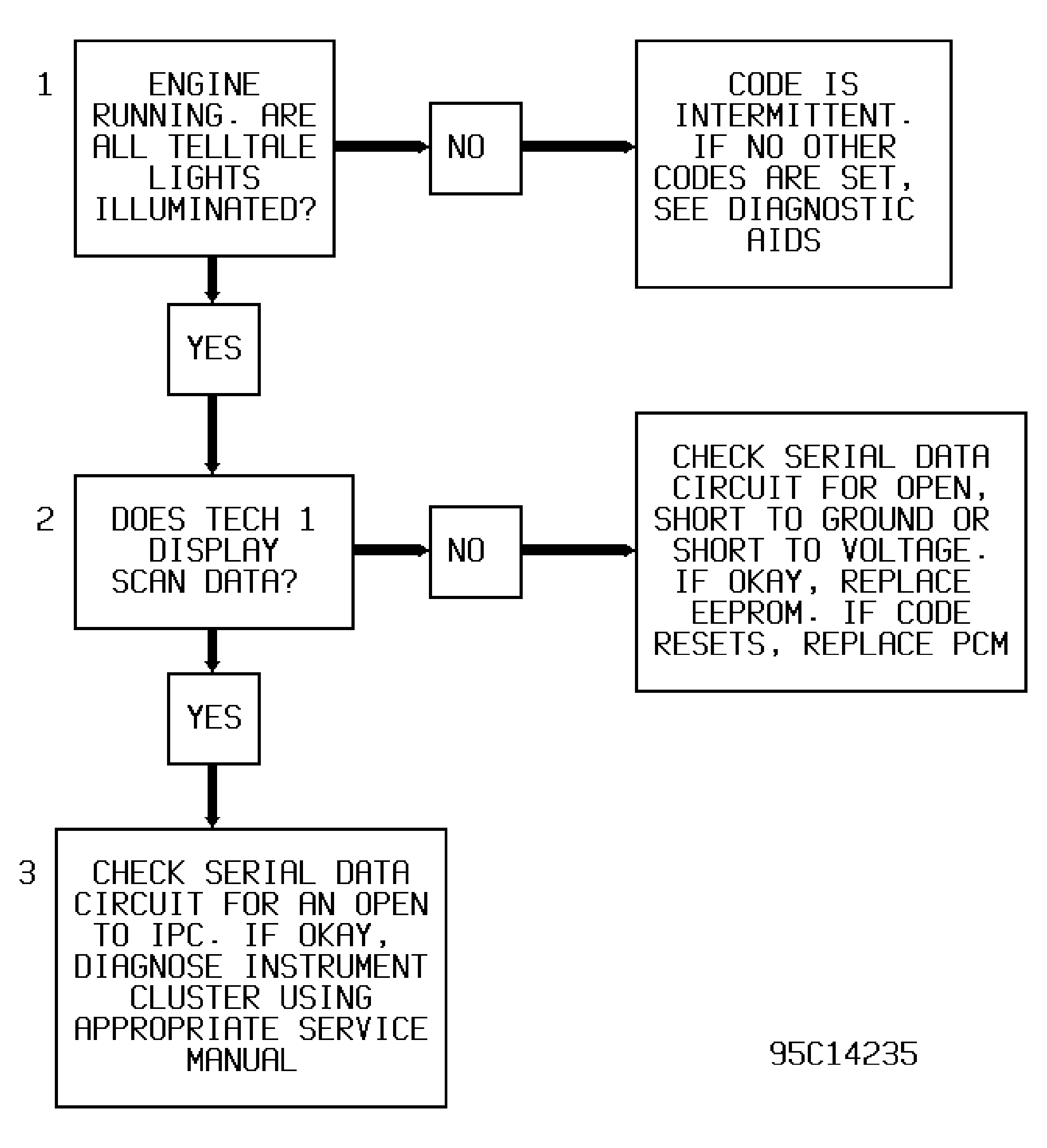

Fig 2: Code 72 Diagnostic Flow Chart (2.2L) Loss Of Serial Data
