Coolant Temperature Sensor/Switch (For Computer): Service and Repair

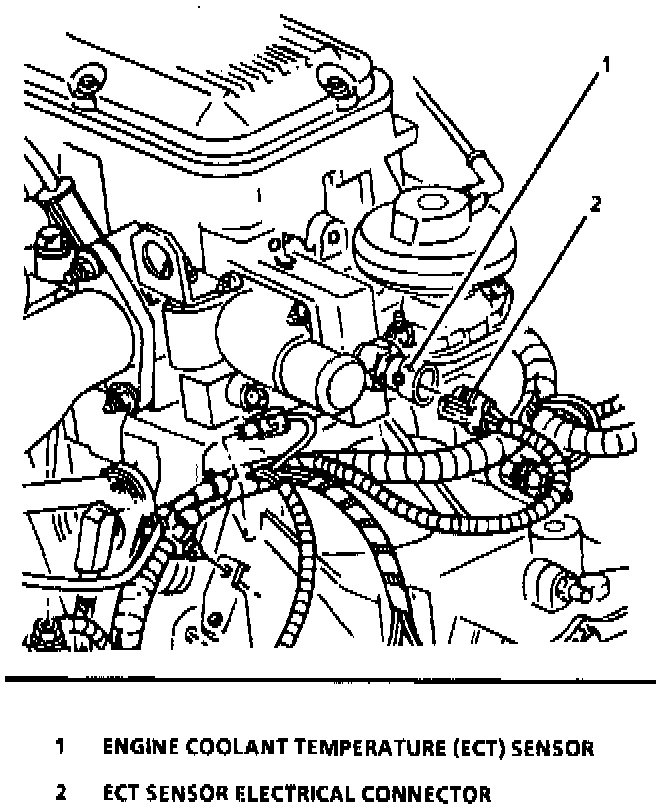

ECT Sensor:

REMOVE OR DISCONNECT
1. Relieve coolant pressure.
2. Negative battery cable.
3. Engine Coolant Temperature (ECT) sensor electrical connector.
4. Carefully remove sensor.

INSTALL OR CONNECT
1. Coat threads with sealant.
2. ECT sensor into engine.

Tighten
ECT sensor to 25 Nm (18.5 lb. ft.).

3. ECT sensor electrical connectoL
4. Negative battery cable.
5. Refill lost coolant.
