Data Link Connector: Locations

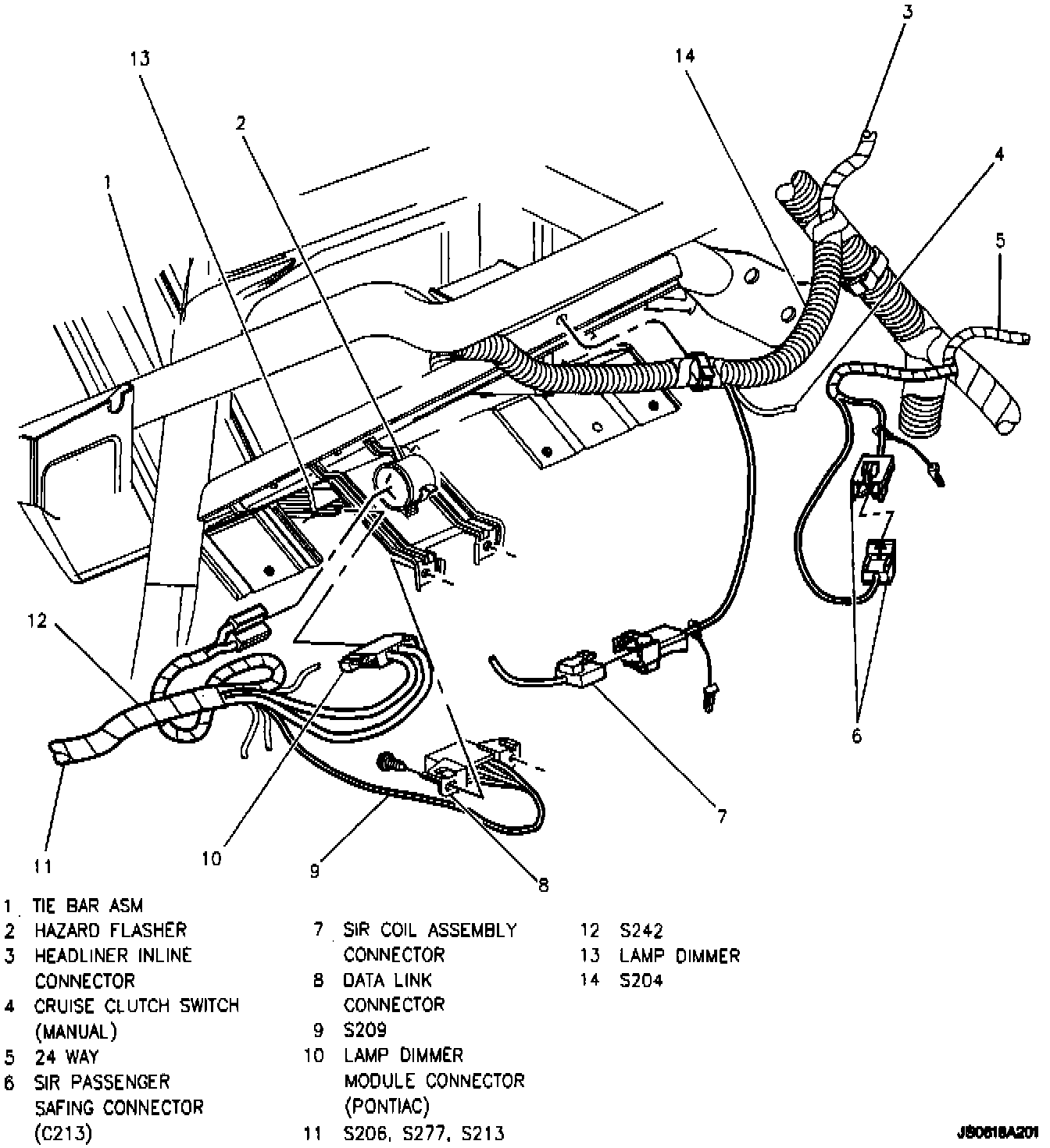

LH Lower I/P:






The Data Link Connector (DLC) is located on the driver's side, under the instrument panel and is sometimes covered by a plastic cover labeled "DIAGNOSTIC CONNECTOR."
