Fuel Injection Lines: Installation

Remove caps and install injection lines. Ensure lines are properly positioned. See Fig 1. Reverse removal procedure to complete installation. Start engine and check for leaks.

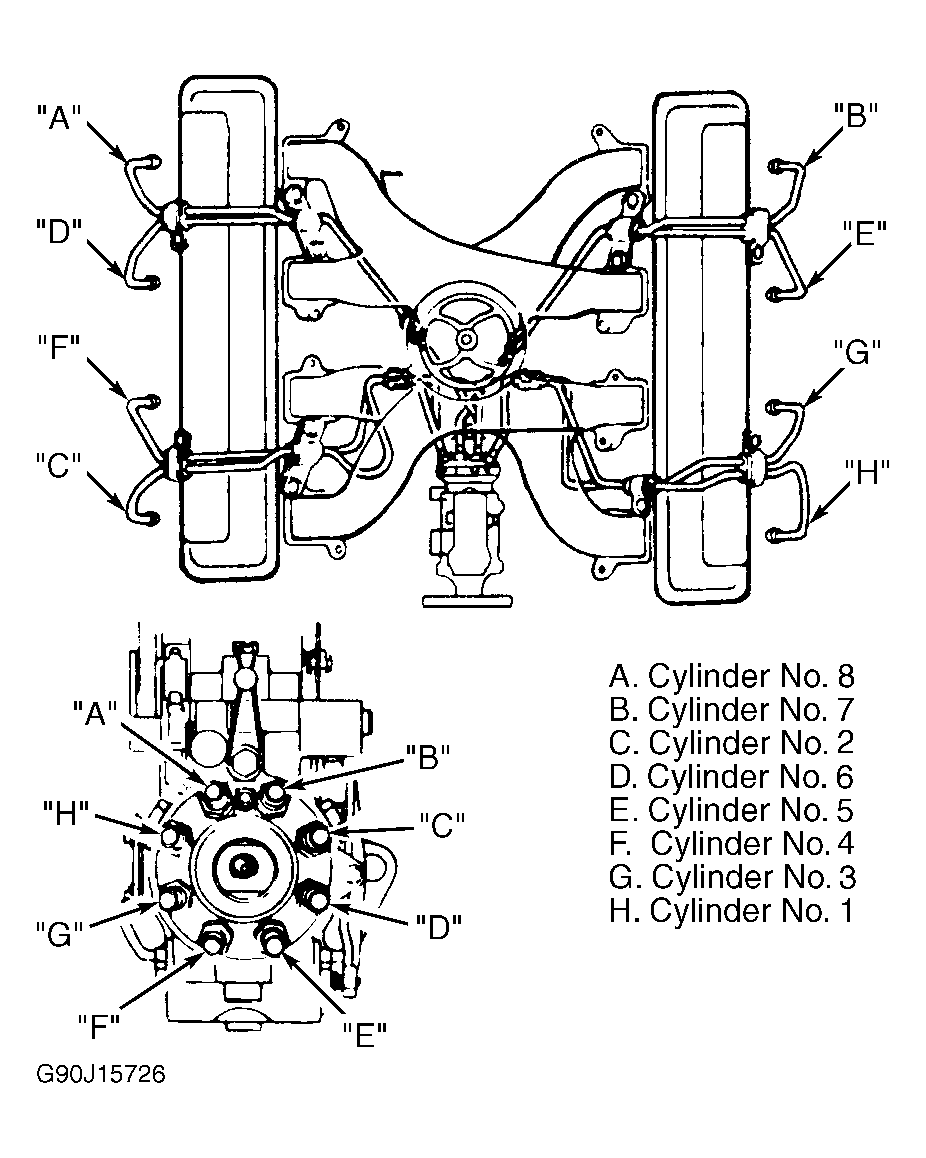

Fig 1: Routing Diesel Fuel Injection Line

Courtesy of GENERAL MOTORS CORP.
