Pcm C2 80 Pin Connector (Clear)

Fig 1: PCM C2 80 Pin Connector (Clear)

Courtesy of GENERAL MOTORS CORP.

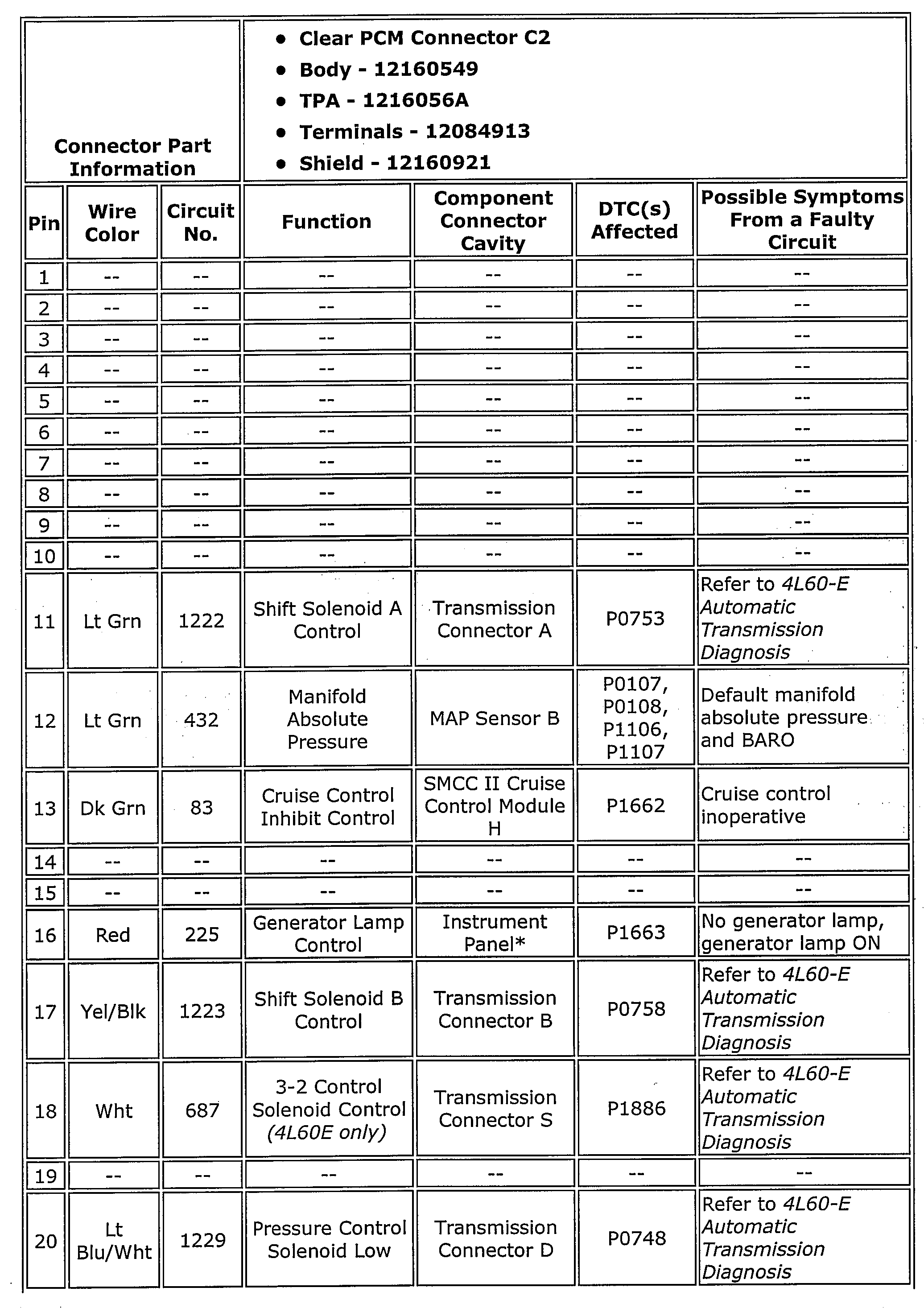

Fig 2: PCM C2 80 Pin Connector (Clear) Connector & Terminal Identification (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

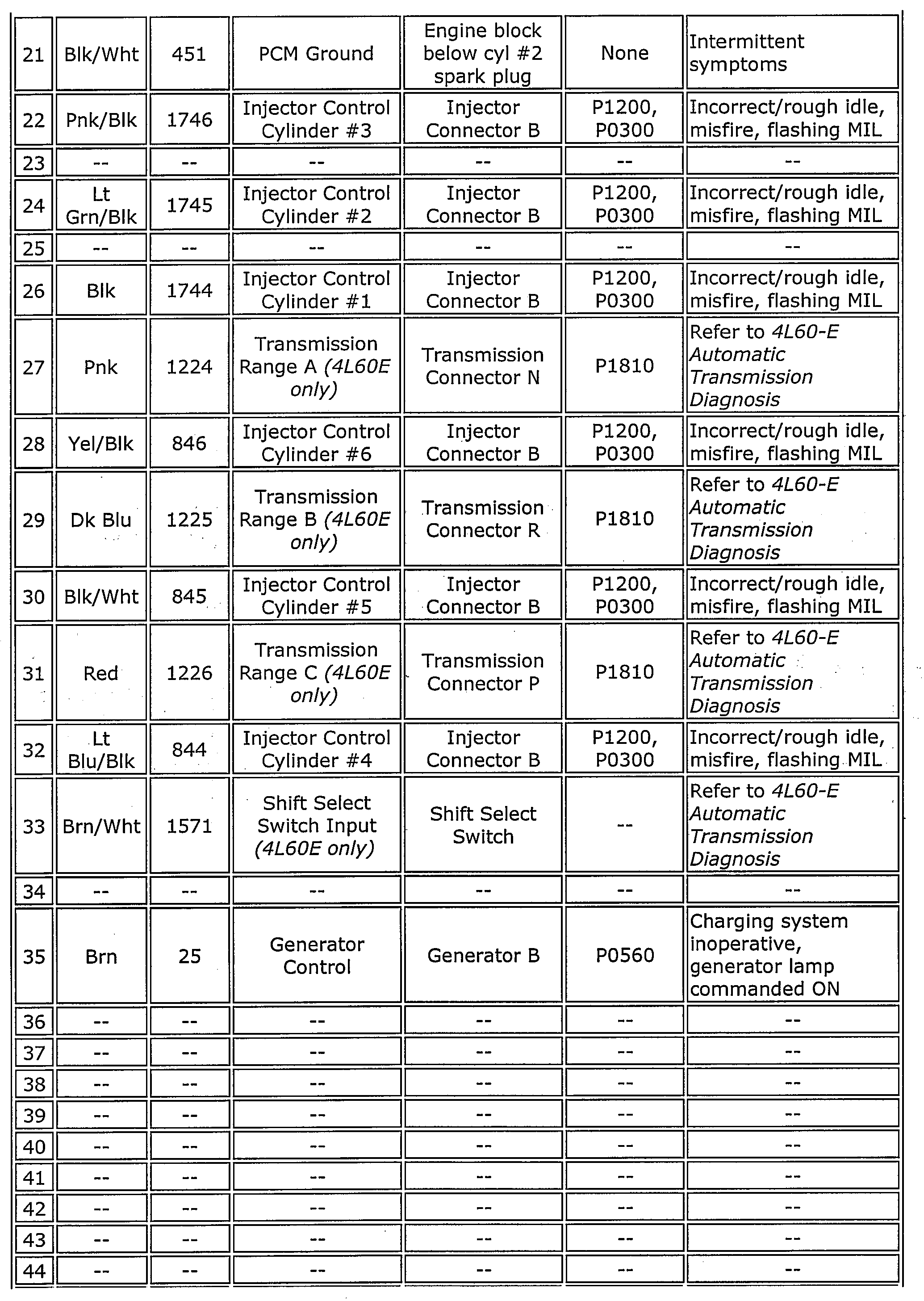

Fig 3: PCM C2 80 Pin Connector (Clear) Connector & Terminal Identification (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

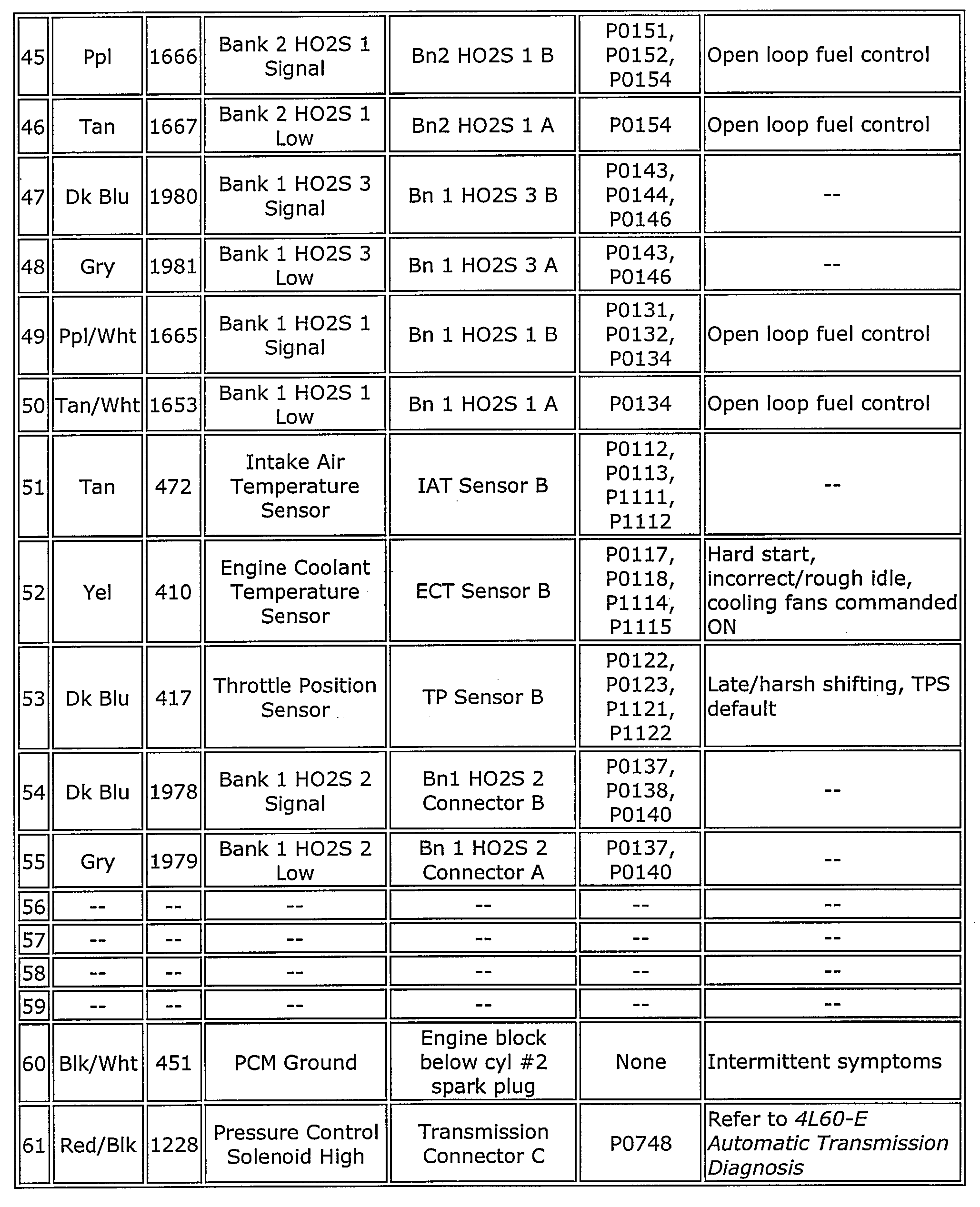

Fig 4: PCM C2 80 Pin Connector (Clear) Connector & Terminal Identification (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

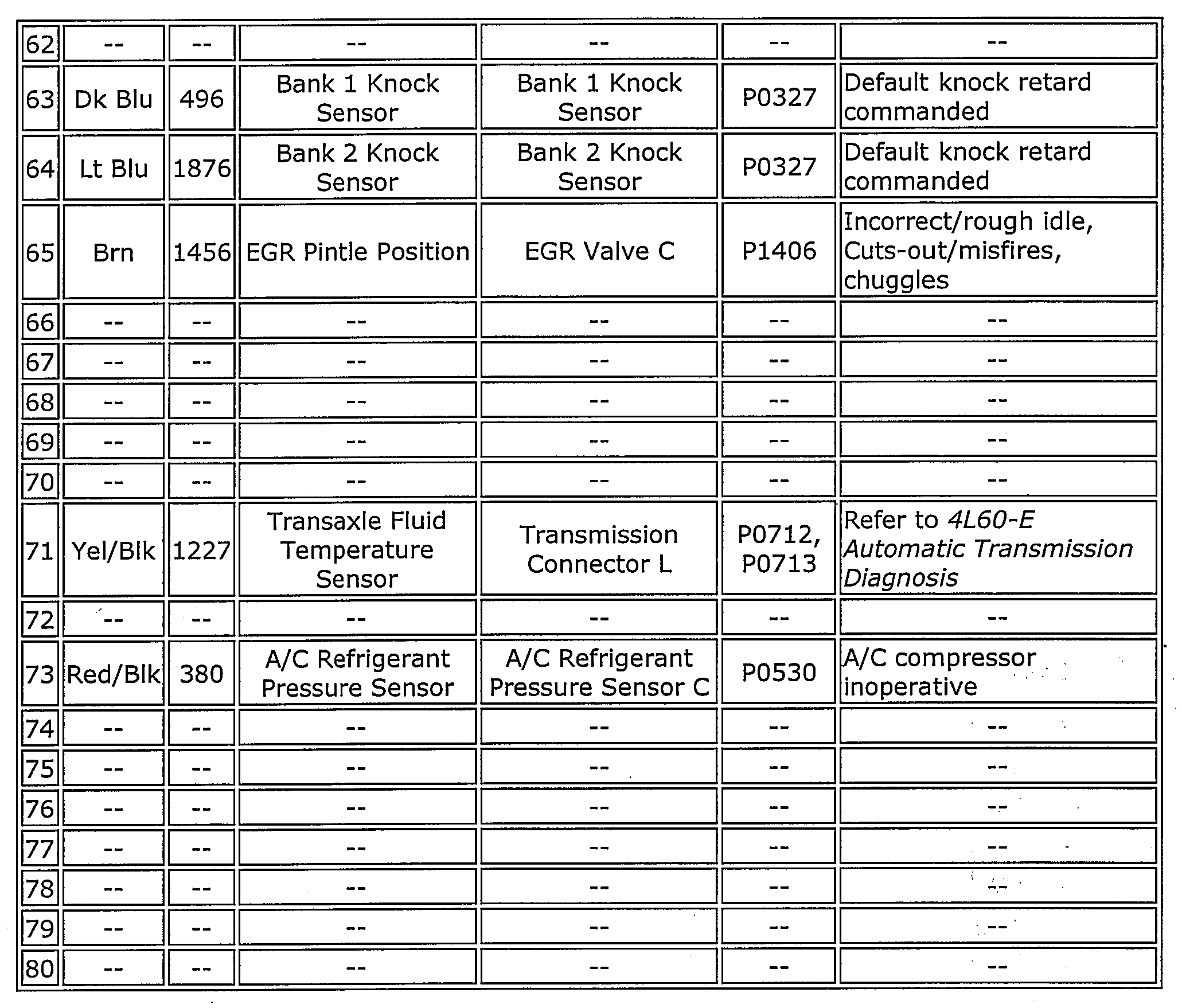

Fig 5: PCM C2 80 Pin Connector (Clear) Connector & Terminal Identification (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
