Component Locations

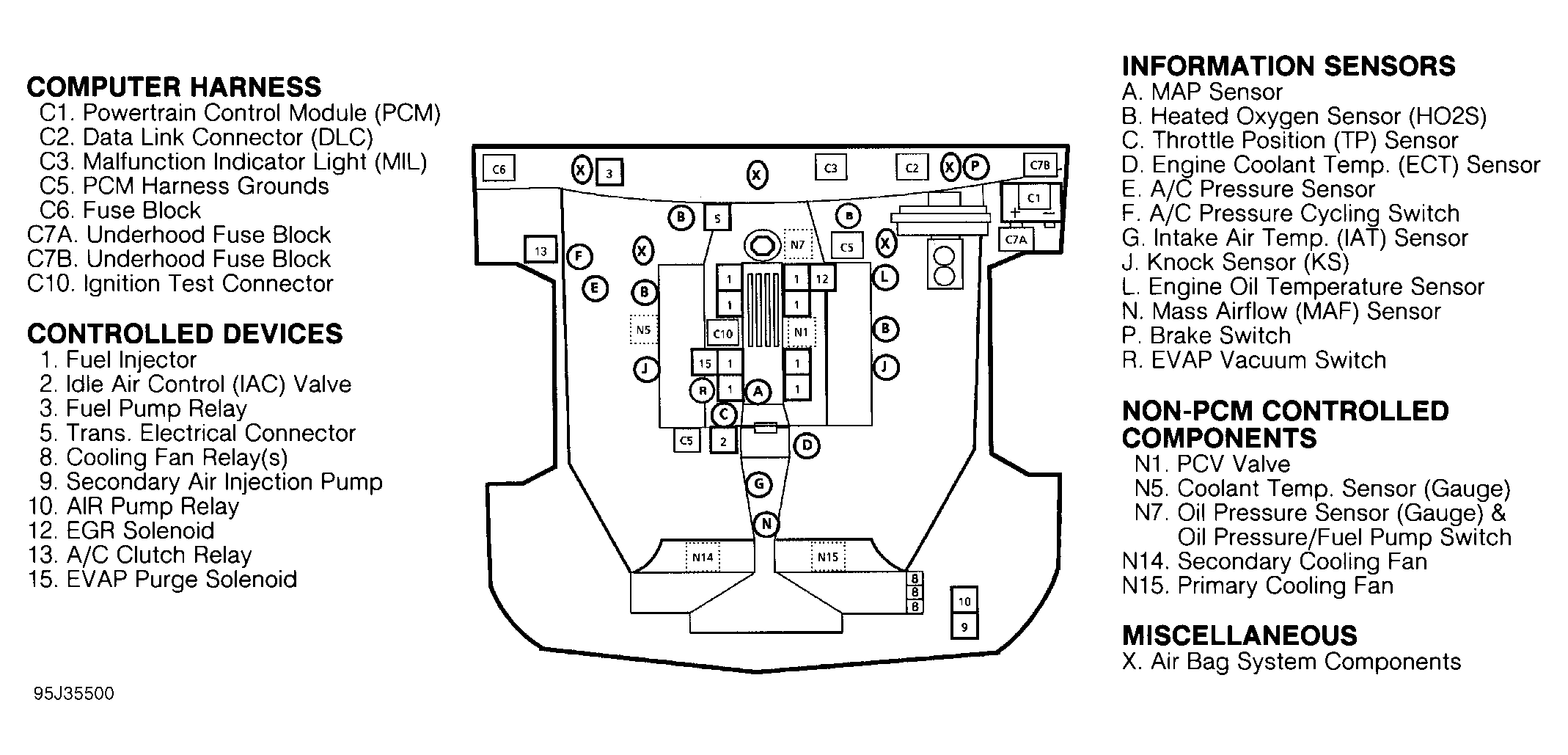

Fig 1: Component Locations (5.7L VIN P)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
