Sensing & Diagnostic Module (SDM): Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1996 GMC Vandura Special, 1996 GMC Vandura, 1996 GMC Savana Special, 1996 GMC Savana Camper Special, and 1996 GMC Savana. However, it is still accessible from the selected car via links, so may be relevant.

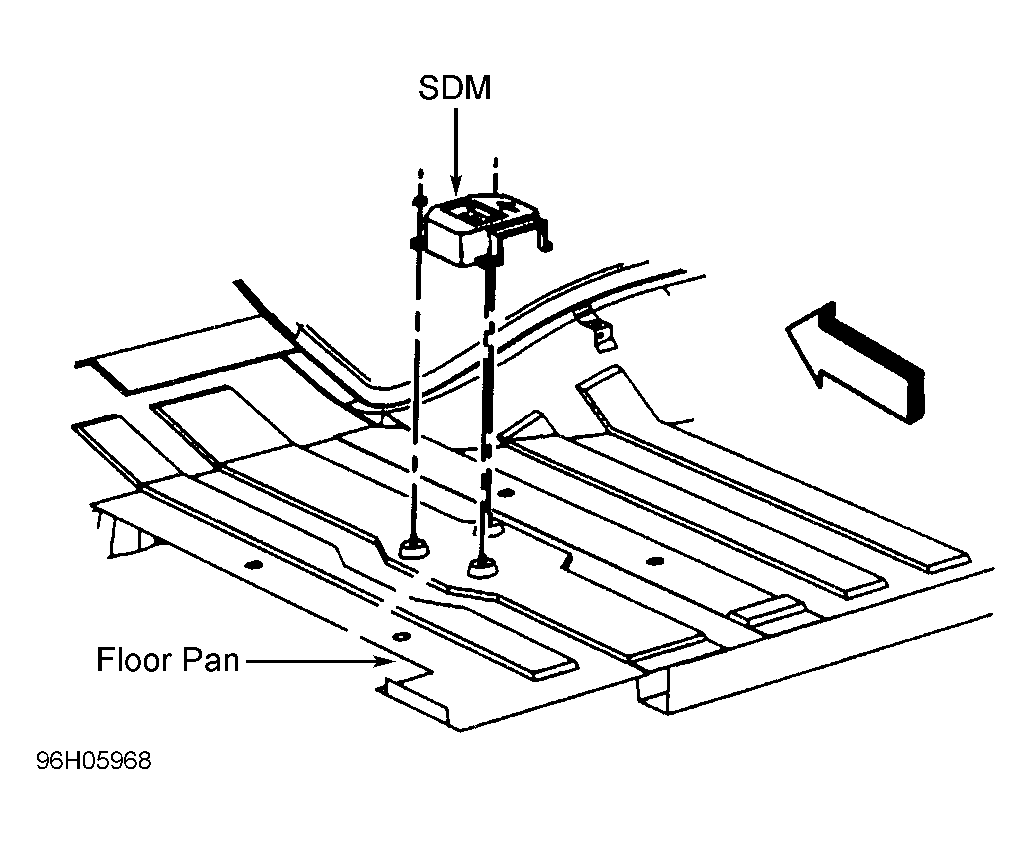

  1. Mount SDM on vehicle, ensuring arrow is pointing toward front of vehicle. Install SDM fasteners. See Figure . Tighten to specification. See TORQUE SPECIFICATIONS  . Reconnect electrical connector and CPA.
  2. Position carpet over SDM. Install driver seat. Reactivate air bag system. See ACTIVATING SYSTEM  . Ensure proper system function. See SYSTEM OPERATION CHECK  .
